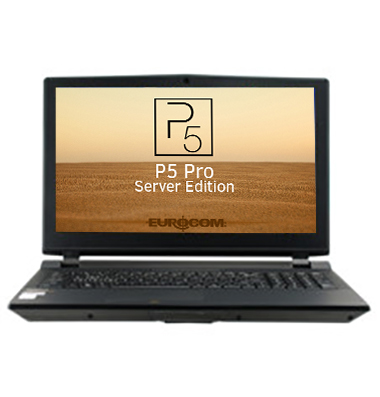

EUROCOM P5 Pro SE
15.6" (39.62cm); FHD IPS 1920-by-1080 pixels; WLED backlit; eDP; LCD panel


World's first Intel Xeon based, 15.6" lightweight 7.5lbs (3.4kg) Mobile Server with integrated display, keyboard and built-in internal battery (UPS)! EUROCOM S5 Pro Mobile Server supports up to 20TB of storage with four SATA3 6Gb/s physical drives in RAID 0/1/5/10, up to 32GB of memory and is powered by Intel's line of XEON E3-1200 v3 series processors.

  • Weight/Dimensions: 3.4kg (7.48lbs); 386x262x35mm (15.4x10.48x1.4-inch)
  • Operating Systems: Microsoft: Server 2012R2, 2016; Windows 7; Windows 8.1; Linux/Ubuntu
  • Core Logic: Intel Z97 Express Chipset; PCI 2.0
  • Processor: 4-core/8 treads Intel XEON E3-1200 v3 series; up to E3-1281 v3; socket LGA1150
  • Memory: up to 32GB; DDR3-1333/1600/1866; four physical SODIMM sockets
  • Storage: up to 20TB of storage with four physical drives (2x M.2 + 2x 2.5"); SATA3 6Gb/s; additional storage available via eSATA drives - NVME M.2 Drives have limited support in Windows 7 -
  • Redundancy and Performance: RAID 0/1/5/10
  • Network:1GbE; RJ-45 LAN on-board; Realtek RT8111G
  • I/O Ports: 4x USB 3.0; eSATA; 2x DP 1.2; HDMI 2.0; Headphone; Microphone; S/PDIF out; Line-in; RJ-45 / LAN
  • Security: Kensington Lock; Fingerprint; TPM 2.0 on-board (Infineon SLB9665-TCG)
    		•

    CustomizeSpecificationsImagesReviewsPrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price List
    How do I upgrade RAM, SSD's, Wireless card...Change Keyboard, Battery or heatsinks? P5 Pro
    Mar 20, 2024
    PDF Document

    If you want to remove or add any components to your Eurocom P5 Pro laptop, here is a disassembly manual to help..

    Remove or Add RAM, SSD drives or Wireless card, Processor and Video card
    Swap Keyboard, battery or Heatsinks
