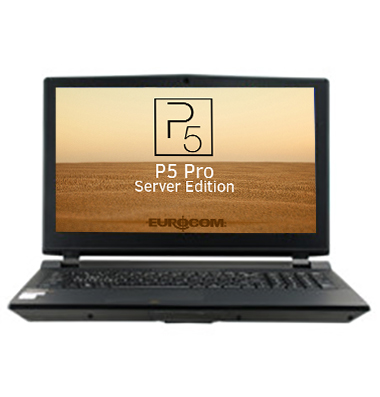

EUROCOM P5 Pro SE
	15.6" (39.62cm); FHD IPS 1920-by-1080 pixels; WLED backlit; eDP; LCD panel World's first Intel Xeon based, 15.6" lightweight 7.5lbs (3.4kg) Mobile Server with integrated display, keyboard and built-in internal battery (UPS)! EUROCOM S5 Pro Mobile Server supports up to 20TB of storage with four SATA3 6Gb/s physical drives in RAID 0/1/5/10, up to 32GB of memory and is powered by Intel's line of XEON E3-1200 v3 series processors. Weight/Dimensions: 3.4kg (7.48lbs); 386x262x35mm (15.4x10.48x1.4-inch) Operating Systems: Microsoft: Server 2012R2, 2016; Windows 7; Windows 8.1; Linux/Ubuntu Core Logic: Intel Z97 Express Chipset; PCI 2.0 Processor: 4-core/8 treads Intel XEON E3-1200 v3 series; up to E3-1281 v3; socket LGA1150 Memory: up to 32GB; DDR3-1333/1600/1866; four physical SODIMM sockets Storage: up to 20TB of storage with four physical drives (2x M.2 + 2x 2.5"); SATA3 6Gb/s; additional storage available via eSATA drives - NVME M.2 Drives have limited support in Windows 7 - Redundancy and Performance: RAID 0/1/5/10 Network:1GbE; RJ-45 LAN on-board; Realtek RT8111G I/O Ports: 4x USB 3.0; eSATA; 2x DP 1.2; HDMI 2.0; Headphone; Microphone; S/PDIF out; Line-in; RJ-45 / LAN Security: Kensington Lock; Fingerprint; TPM 2.0 on-board (Infineon SLB9665-TCG)

Currency:  CAD USD EUR GBP    Price:

Base Configuration   System and Display   EUROCOM P5 Pro Server Edition   Choose your LCD Display   15.6in (39.6cm); FHD 1920x1080; 60Hz; Matte; IPS; 700:1; NTSC 72%; eDP 15.6in (39.6cm); UHD; 60Hz; Matte; PLS; 700:1; 16ms; NTSC 72%; eDP; 40pin; Samsung LTN156FL02-101 [add $218] 15.6in (39.6cm); UHD; 3840x2160; 60Hz; Glossy; IPS; 1000:1; Adobe 100% sRGB; eDP; SHARP IGZO LQ156D1JX01B [add $266] 15.6in (39.6cm); UHD; 3840x2160; 60Hz; Matte; IPS; 1000:1; Adobe 100% sRGB; eDP; SHARP IGZO LQ156D1JW04 [add $266]   Security - ANTI SPYING Package   Choose: optional Factory ANTI SPYING package. Physical Removal of internal Webcam and Microphone. [add $66]   Display Calibration   Optional - choose from the options below: Professional Display Calibration with .icc Profile Saved on USB Flash Key [add $71] Professional Display Calibration with .icc Profile Saved on CD-ROM Disk [add $39]   eXpansion Modules for 2-3 External Monitors   None - Choose from the options below Matrox TripleHead2Go DisplayPort Edition; w/ 3 DP-out ports; up to 3 external displays; 5760x1080 (3x 1920x1080) or 3840x1200 (2x 1920x1200) [add $399]   GPU Technology   Single GPU support; Modular MXM3; Upgradeable   VGA / GPU Graphics Options   Quadro K1100M; 2GB GDDR5; N15P-Q1 Kepler; 384CUDA; MXM 3.0a; 45W 6GB GDDR5; NVIDIA GTX 970M (N16E-GT); 1280 CUDA; GPU/VRAM Clock 924MHz/2500MHz; Maxwell (28nm); MXM 3.0b; 81W [add $160] 8GB GDDR5; NVIDIA GTX 980M (N16E-GX); 1536 CUDA; GPU/VRAM Clock 1038MHz/2500MHz; Maxwell (28nm); MXM 3.0b; 100W [add $316] Quadro K3100M; 4GB GDDR5; N15E-Q1; 768 CUDA; MXM 3.0b; 75W [add $320] Quadro K5100M; 8GB GDDR5; N15E-Q5; 1536 CUDA; MXM 3.0b; 100W [add $1280]   GPU Heatsink - Thermal Paste   IC Diamond 7 Carat Thermal Compound for Maximum Performance   Processor / CPU   Xeon E3-1241 v3; 4C/8T; 8MB L3; 3.5GHz (up to 3.9GHz); FCLGA1150; 22nm; 80W Xeon E3-1271 V3; 4C/8T; 8MB L3; 3.6GHz (up to 4.0GHz); FCLGA1150; 22nm; 80W [add $360] Xeon E3-1281 v3; 4C/8T; 8MB L3; 3.7GHz (up to 4.1GHz); FCLGA1150; 22nm; 81W [add $520] 3.6GHz (up to 4.0GHz) Intel Core i7-4790; 4C/8T; 8MB L3; FCLGA1150; 22nm; 84W [sub $7] 4.0GHz (up to 4.4GHz) Intel Core i7-4790K; 4C/8T; 8MB L3; FCLGA1150; 22nm; 88W [add $73]   CPU Heatsink - Thermal Paste   IC Diamond 7 Carat Thermal Compound for Maximum Performance   Memory (RAM) Configuration   16GB; 2x 8GB; DDR3L-1600 PC-12800; 204pin; Micron; 1.35V - 2 SODIMMs 16GB; 2x 8GB; DDR3L-1866; CL13; PC3L-14900S; 204-pin; Micron; 1.35V-1.5V; 2 SODIMMs [add $16] 16GB; 2x 8GB; DDR3L-2133; CL11; 204-pin; Kingston HyperX; 1.35V-1.5V; 2 SODIMMs [add $128] 24GB; 3x 8GB; DDR3L-1866; CL13; PC3L-14900S; 204-pin; Micron; 1.35V - 1.5V; 3 SODIMMs [add $144] 24GB; 3x 8GB; DDR3L-1600; PC3-12800; 204pin; Micron; 1.35V - 3 SODIMMs [add $120] 24GB; 3x 8GB; DDR3L-2133; CL11; 204-pin; Kingston HyperX; 1.35V-1.5V; 3 SODIMMs [add $312] 32GB; 4x 8GB; DDR3L-1600; PC3-12800; 204pin; Micron, 1.35V - 4 SODIMMs [add $240] 32GB; 4x 8GB; DDR3L-1866; CL13; 204-pin; Micron; 1.35V-1,5V; 4 SODIMMs [add $272] 32GB; 4x 8GB; DDR3L-2133; CL11; 204-pin; Kingston HyperX; 1.35V-1.5V; 4 SODIMMs [add $496]   Operating System(s)   None - Choose from the options below for Pre-install or install your own Microsoft Windows Server 2012 R2 x64 Standard; OEM Edition; w/ 5 CTL User CAL [add $1119] Microsoft Windows Server 2012 R2 x64 Standard; OEM Edition; w/ 10 CTL User CAL [add $1295] Microsoft Windows Server 2012 R2 x64 Standard; OEM Edition; w/ 15 CTL User CAL [add $1471] Microsoft Windows Server 2012 R2 x64 Standard; OEM Edition; w/ 20 CTL User CAL [add $1647] Microsoft Windows 10 Home; 64-bit; OEM; USB key [add $159] Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key [add $299] Linux Ubuntu 14.04 LTS installed; USB key; check for H/W limitations when ordering [add $156] Microsoft Windows 7 Professional 64-bit; OEM; with DVD and USB key [add $319] Microsoft Windows Server 2016 Standard; OEM Edition; w/ 5 CTL User CAL [add $1199] Microsoft Windows Server 2016 Standard; OEM Edition; w/ 1 CTL User CAL [add $879] Microsoft Windows Server 2022 x64 Standard; OEM; w/ 1 CTL User CAL [add $1359] Microsoft Windows Server 2022 x64 Standard; OEM; w/ 5 CTL User CALs [add $1759]   Keyboard (Language)   US English; QWERTY; Backlit UK English; QWERTY; Backlit [add $80] Danske / Danish; QWERTY; Backlit [add $80] Chinese; QWERTY; Backlit [add $80] Alemán / German; QWERTZ; Backlit [add $80] Español / Spanish; QWERTY; Backlit [add $80] Français / French; AZERTY; Backlit [add $80] Italiana / Italian; QWERTY; Backlit [add $80] Norske / Norwegian; QWERTY; Backlit [add $80] Swiss German; QWERTZ; Backlit [add $80]   Office/Business Productivity Software   None - Choose from the options below Microsoft Office 2021 Home and Student Edition; OEM; MLK; US/Canada [add $143] Microsoft Office 2021 Home and Business Edition; OEM; MLK; US/Canada [add $279]   Internal M.2 SSD Storage   Choose your SSD M.2 type 2280 (80x22nm) from the options below: 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $135] 500GB; M.2 SAMSUNG 980 Pro; SSD; PCIe 4.0; NVMe; R/W: up to 7000/5100MB/s [add $399] 500GB; M.2; SSD; SATA3; R/W: 560/510MB/s; MICRON / CRUCIAL MX500 [add $159] 250GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $135] 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $263] 1TB SSD; SAMSUNG 990 Pro; PCIe 4.0 NVMe M.2 2280; R/W speeds up to 7,450/6,900 MB/s [add $879] 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $559] 1TB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $719] 2TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $999]   Internal M.2 SSD Storage   Choose your SSD M.2 type 2280 (80x22mm) from the options below: 500GB; M.2; SSD; SATA3; R/W: 560/510MB/s; MICRON / CRUCIAL MX500 [add $159] 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $263] 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $559]   RAID Options: HDD/SSD Storage   None - Choose from the options below RAID 0 setup - for maximum performance; minimum 2 physical drives are required [add $60] RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required [add $60] RAID 5 setup; 3 physical drives are required [add $60] RAID 10 setup; 4 physical drives are required [add $60] Dual RAID Setup; RAID 0 and RAID 1; 4 physical drives are required [add $76] Multiple Partitions with One O/S - please specify size of each partition [add $60] Multiple Partitions with Two O/S; please specify size of each partition; order 2nd O/S [add $60]   1st Drive: HDD, SSD or SSHD   1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in 1TB; HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm [add $136] 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W 560/530 MB/s [add $96] 480GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; R/W: 500/440 MB/s; 7mm 2.5-inch [add $296] 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s [add $299] 800GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; 7mm; R/W: 500/440 MB/s [add $616] 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; MZ-77E1T0B/AM [add $379] 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $539] 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $1099] 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $1579] 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $779] 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm [add $3819] *** Without Hard Drive; with HDD bracket included *** [sub $54]   2nd Drive: HDD, SSD or SSHD   Choose your 2nd HDD/SSD/SHHD from the options below: 1TB HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in [add $180] 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in [add $180] 1TB;SSHD; SATA3; Seagate FireCuda ST1000LX015; 7mm; 2.5in [add $212] 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm [add $316] 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s [add $276] 480GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; R/W: 500/440 MB/s; 7mm 2.5-inch [add $476] 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s [add $479] 800GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; 7mm; R/W: 500/440 MB/s [add $799] 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $559] 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $719] 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $1279] 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $959] 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $1759] 8TB SSD; Micron 5100 Enterprise; SATA3 6Gb/s; R/W (MB/s): 540 / 520; 2.5inch; 7mm [add $3999]   External Optical Drive   None - Choose from the options below External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0 [add $187] 24x DVD-RW; External; USB 2.0 [add $100]   Internal Card Reader   6-in-1 Card Reader; MMC/RSMMC/SD/MiniSD/SDHC/SDXC; UHS-II interface   Biometric Device   Built-in Fingerprint Reader   Embedded Security Chip   Embedded TPM 2.0 Security Chip for Data Encryption   TV Tuner (Internal and/or External)   None - Choose from the options below External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE [add $79]   Wireless LAN   2-in-1: 802.11b/g/n WLAN + Bluetooth 4.0 Combo; M.2 2230; Realtek RTL8723BE 2-in-1: 802.11a/c WLAN + Bluetooth 4.0; Intel Wireless-AC 7265; M.2 2230 [add $16]   Built-in Web Camera   2.0 Megapixels; Webcam; Built-in   HDMI Port(s)   HDMI 2.0 Output Port   Standard Battery (internal)   8-cells Lithium-lon Battery; Easy to change   Choose Extra Battery   None - Choose from the options below 8-cells Lithium-lon Battery; Easy to change [add $143]   Standard AC Adapter   230W; 100V-250V; Auto-Switching (Worldwide) 330W AC Adapter; Auto-switching; 100-240V; 50-60Hz; DC 19.5V @ 16.9A [add $64]   Standard Power Cord - included   USA / Canada EUROPE UK SOUTH AFRICA AUSTRALIA   Extra Power Cord   None - Choose from the options below 1 Extra; USA/CANADA [add $7] 2 Extra; US/CANADA [add $14] 1 Extra; SOUTH AFRICA [add $7] 1 Extra; AUSTRALIA [add $7] 1 Extra; UK [add $7] 1 Extra; EUROPE [add $7] 2 Extra; AUSTRALIA [add $14] 2 Extra; SOUTH AFRICA [add $14] 2 Extra, EUROPE [add $14] 2 Extra; UK [add $14]   Choose Extra AC Adapter   None - Choose from the options below 230W; Auto-switching 100V-250V [add $116] 330W AC Adapter; 100-240V; w/ 4pin round plug [add $180]   Carrying Case   None - Choose from the options below TARGUS 16-inch Sport Backpack; Heavy-Duty Fabrics with Nylon Webbing Reinforcement; TCG650 [add $79] 17-18-inch (43.1-45.7cm); Black; Clamshell; Targus CNXL18 Laptop Pro Case [add $151] 17.3-inch Sport Backpack; Black; Targus Voyager TSB953GL [add $135] 17-inch Rolling Travel Case; Black Nylon; Exterior 457x381x254mm / 18.28x15.24x10.16inch; Targus TCG717 [add $103]   Choose Your Warranty Plan   1 Year Return to Factory Depot with 1 Year of Tech Support 2 Years Return to Factory Depot with 2 Years of Tech Support [add $220] 3 Years Return to Factory Depot with 3 Years of Tech Support [add $335] Options   Graphics Tablet / Stylus   None, Choose from the options below Wacom Intuos Pro;Small; 10.6x6.7in (active 6.3x3.9in); Pen Tablet; PTH460K0A [add $319] Wacom Intuos Pro - Medium; 13.2x8.5in (active 8.7x5.8in); Pen Tablet; PTH660 [add $399] Wacom Intuos Pro - Large; 16.8x11.2in (active 12.1x8.4in); Pen Tablet; PTH860 [add $559] Accessories   Docking Stations, Hubs and Port Replicators   None - Choose from the options below USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz [add $63] Universal USB-C DV4K Docking Station; w/ 65W AC Adapter; Black; Targus DOCK310USZ [add $319]   Car Adapters and Inverters   None - Choose from the options below 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs [add $95]   Cables, Converters and Adapters   None - Choose from the options below: USB 3.0 to 1Gigabit Ethernet NIC Adapter; Startech USB31000S [add $79] 1pc DisplayPort to DVi-I Converter Cable for DP port and/or Matrox DH2G or TH2G DP Edition [add $23] 2pcs DisplayPort to DVi-I Converter Cables for Matrox TH2G or DH2G DP Edition [add $46] 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10 [add $55]   Cables/Adapters for External Monitors; DP; mDP; HDMI; DVI   None - choose from the options below: MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID [add $183] DP to DVI Single-Link Video Adapter Converter; DP2DVIADAP [add $23] 6ft DP to VGA Cable; M/M; DP2VGAMM6 [add $39] DP to DVI Video Adapter M/M; Startech DP2DVIDAP [add $39]   Security Cables and Security Devices   None - Choose from the options below Targus - Defcon CL Cable PA410C [add $39] Targus Defcon 1 Alarm Device PPA400C [add $39]
