| EUROCOM 780W AC Adapter | |
 |

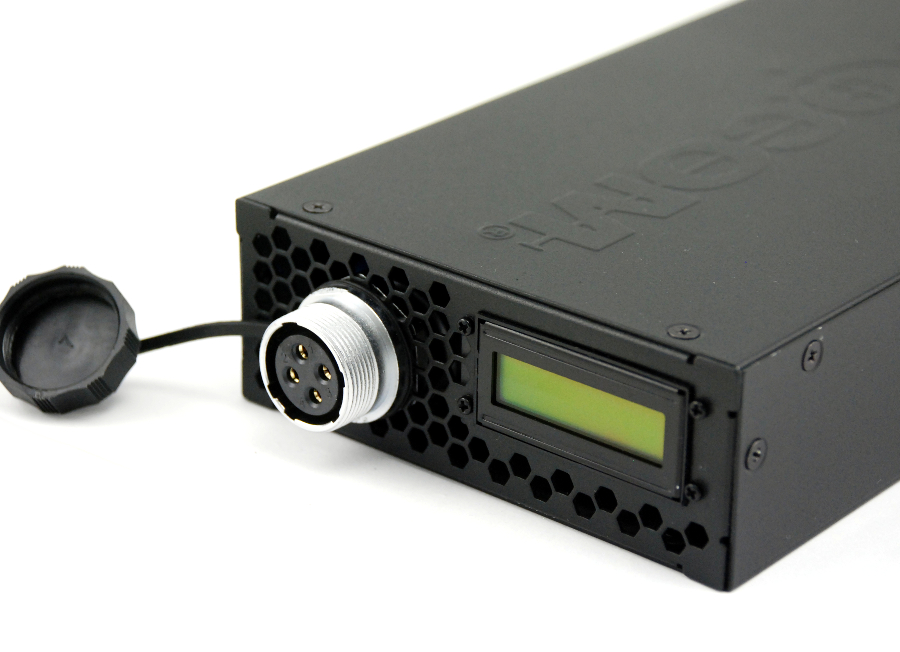

The World's Most Powerful 780W External AC/DC Adapter. Great for High end Laptops, Small Form Factor PCs, Industrial PCs and Servers. Physical Characteristics • 12.8” / 325mm Length • 4.3” / 110mm Width • 1.5” / 40mm Height • 72.9” / 1.8m DC Cable Length • Total weight: 3.05 lbs / 1.38 kg Vital Specifications • Rated Output Power: 780Watts Input Voltage & Frequency • The range of input voltage is from 90Vac to 264Vac. • Input Frequency 63Hz 50/60 Hz 47Hz Input Current • The maximum input current is 10A at AC Input 100Vac/60Hz. Inrush Current • The inrush current will not exceed 100A at 230Vac/63Hz AC input for a cold start at 25℃. Power Factor • The Power supply power factor at full load operation shall be more than 0.9 at 230Vac input. Efficiency • The efficiency (watts out / watts in) higher than 90% typically while measuring at nominal line and maximum load. Output Requirements - Static Load • Output Voltage: 20Vdc • Minimum Load: 0A • Maximum Load: 39A • Peak Load 45A (duration Time 25ms) • Line Regulation 2% • Load Regulation: ±5% • Voltage Accuracy: Min 19V Max 21V • Ripple & Noise(*) 200mVp-p |
        |
|
|
||||||||||
 |
