EUROCOM 780W AC Adapter
The World's Most Powerful 780W External AC/DC Adapter.
Great for High end Laptops, Small Form Factor PCs, Industrial PCs and Servers.

Physical Characteristics
  • 12.8” / 325mm Length x 4.3” / 110mm Width x 1.5” / 40mm Height
  • 72.9” / 1.8m DC Cable Length
  • Total weight: 3.05 lbs / 1.38 kg

    Vital Specifications
  • Rated Output Power: 780Watts

    Input Voltage & Frequency
  • Input voltage range: 90VAC to 264VAC
  • Input Frequency 63Hz 50/60Hz 47Hz

    Input Current
  • The maximum input current is 10A at AC Input 100Vac/60Hz.

    Inrush Current
  • The inrush current will not exceed 100A at 230VAC/63Hz AC input for a cold start at 25℃.
    Power Factor
  • The Power supply power factor at full load operation shall be more than 0.9 at 230VAC input.

    Efficiency
  • The efficiency (watts out / watts in) higher than 90% typically while measuring at nominal line and maximum load.

    Output Requirements - Static Load
  • Output Voltage: 20Vdc
  • Minimum Load: 0A
  • Maximum Load: 39A
  • Peak Load 45A (duration Time 25ms)
  • Line Regulation 2%
  • Load Regulation: ±5%
  • Voltage Accuracy: Min 19V Max 21V
  • Ripple & Noise(*) 200mVp-p
    •
    CustomizeImagesVideosBrochureReviewsPrice ListComponentsFAQs
    Base Configuration

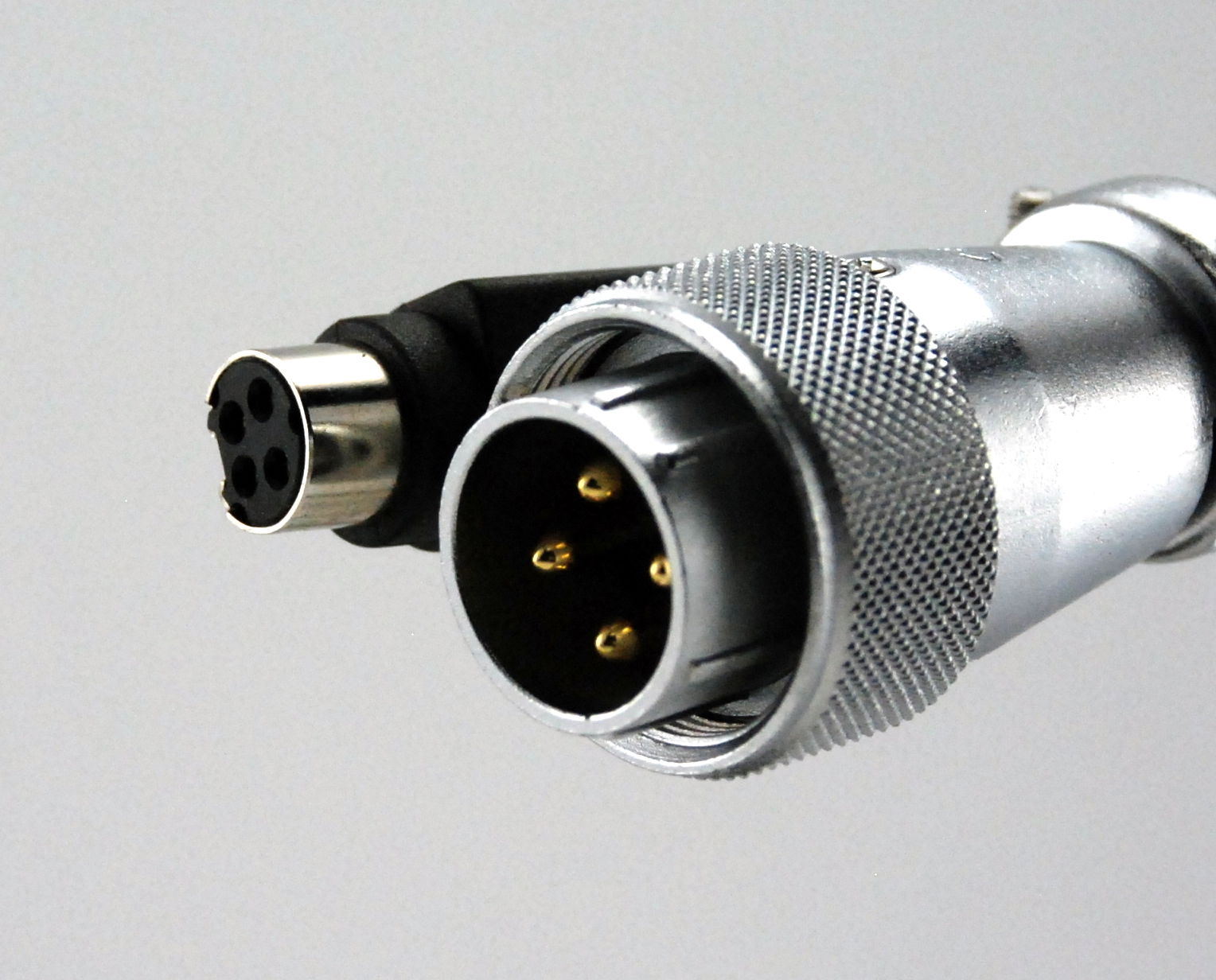

      DC Cable for 780W AC Adapter
      - Choose from the options below:
      - 1x DC Cable for EUROCOM, Clevo, OriginPC, Sager and MSI laptops; 4-pin round; 182cm / 6ft
      - 1x DC Cable for ASUS ROG GX501V GM501 GM501GM GX531GM (1x round ROG connector)
      - 1x DC Cable + Splitter Box with 2x ROG round power connectors for ASUS G703GX-XB96K; GZ700GX
      - 1x DC Cable for Alienware laptops except Area 51m (1x round AW connector); 110cm / 3.6ft
      - 1x DC Cable + Splitter Box with 2x round AW power connectors for Alienware AREA 51m; 182cm / 6ft
      - 1x DC Cable + Splitter Box with 2x round AW power connectors for Alienware AREA 51m; 152cm / 5ft
      - 1x DC Cable for MSI GT76 laptop square GT76 connector; 110cm / 3.6ft
      - 1x DC Cable for MSI GT76 laptop square GT76 connector; 200cm / 6.6ft
      - 1x DC Cable for Clevo X170SM laptop w/ dual square DC plugs; 110cm / 3.6ft
      Standard AC Adapter
      - None, Choose from the options below:
      - 780W AC Adapter; 110V-240V Auto Switching; 325x110x40mm; 3lbs/1.3kg; without DC cable
      Standard Power Cord - included
      - USA / Canada
      - UK
      - EUROPE
      - AUSTRALIA
      - SOUTH AFRICA

    Options
      Extra Power Cord
      - None - Choose from the options below
      - 1 Extra; USA/CANADA
      - 1 Extra; UK
      - 1 Extra; EUROPE
      - 1 Extra; SOUTH AFRICA
      - 1 Extra; AUSTRALIA
      - 2 Extra; US/CANADA
      - 2 Extra, EUROPE
      - 2 Extra; UK
      - 2 Extra; SOUTH AFRICA
      - 2 Extra; AUSTRALIA
      Choose Extra AC Adapter
      - None - Choose from the options below
      - 780W AC Adapter; without DC Cable; 110V-250V Auto Switching; 3lbs/1.3kg
