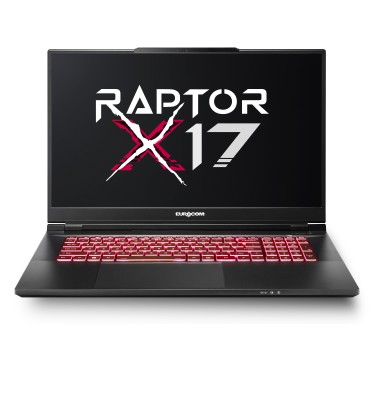

EUROCOM Raptor X17
Choice of 17.3in 240Hz QHD 2560x1440 or 144Hz UHD 3840x2160 pixels

EUROCOM Raptor X17 Mobile Supercomputer is powered by Intel i9-14900HX 24C/32T Processor and NVIDIA GeForce RTX 4090 16GB DDR6 with NVIDIA ADA Lovelace architecture. It supports up to 24TB of SSD storage in RAID 0/1/5, 2x Thunderbolt 4 allowing up to 3 LAN ports. Support for most advanced and demanding use cases in AI & Machine Learning in Finance, ECommerce, Security, Automotive, and other industries. Perfect for cluster computing.

  • Mechanical: Aluminium Magnesium Alloy (5052); Bottom case, Top case and Back cover.
  • Chipset: Intel HM770 PCIe 4.0 architecture
  • Processor: Intel i9-13900HX or i9-14900HX; 24cores / 32threads; on-board
  • GPU Technology: NVIDIA GeForce RTX 4090 (9728 CUDA/16GB DDR6); RTX 4080 (7424 CUDA/12GB DDR6); powered by the NVIDIA Ada Lovelace architecture; NVIDIA Advanced Optimus Dynamic Display Switching Mode; supports 5 active displays
  • Storage: Up to 24TB SSD; M.2 2280; NVMe; three physical drives (2x PCIe 4.0 x4; 1x PCIe 5.0)
  • Memory: up to 96GB; DDR5 up to 5600; two 262-pin, SODIMM sockets
  • Choice of Operating Systems: Microsoft Windows 11; Microsoft Server 2022; Linux Ubuntu; QUBES O/S
  • Webcam: Dual Sensor Windows 2.0 FHD Hello Camera with TNR (can be removed for security)
  • LAN: 2.5GbE Intel/Killer E3100X;RJ-45; supports 2nd LAN via TB4 port
  • Keyboard: RGB Keyboard with individual key illumination; N-Key Rollover & Anti-Ghosting; Microsoft Precision Touchpad with multi-gesture two buttons
  • Security: TPM 2.0; Kensington lock; BIOS password
  • Audio System: S/PDIF Output (Optical); Creative Super X-Fi Ultra DSP chip; Creative Sound Blaster Atlas; ESS SABRE HiFi DAC for high resolution headphone output
  • 10 Ports: 2x Thunderbolt 4.0; type C; 1x USB-C 3.2 Gen2;3 x USB-A 3.2 Gen2; 2x miniDP 1.4; 1x HDMI 2.0 output (with HDCP); 1x 2-in-1 Audio jack (Headphone/Microphone); 1x 2-in-1 Audio jack (Microphone/SPDIF Optical output); 1x RJ-45 LAN; 2x DC-in
  • Weight/Dimensions: 3.29 kg/7.24 lbs; Thickness- 0.98”/24.9 mm; WxDxH- 396mm x 278mm x 24.9mm/15.65” x 10.79” x 0.98”
    		•

    CustomizeSpecificationsImagesBrochureBenchmarksPrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price ListLCD Chart
    How do I upgrade RAM, SSD's, Wireless card...Change Keyboard, Battery or heatsinks? Raptor X17
    Mar 13, 2024
    PDF Document

    If you want to remove or add any components to your Raptor X17 laptop, here is a disassembly manual to help..

    Remove or Add RAM, SSD drive or Wireless card
    Swap Keyboard, battery or Heatsinks

    Install Enhanced Copper Thermal Pad kit in the EUROCOM Raptor X17
    Jul 30, 2024
    PDF Document

    An Enhanced Copper Thermal Pad kit has been introduced for the EUROCOM Raptor X17. The kit is intended to enhance the cooling of the SSD drives in the EUROCOM Raptor X17. The attached document shows how this kit is to be installed.

    Intel Rapid Storage Technology app has been replaced...
    Jul 30, 2024

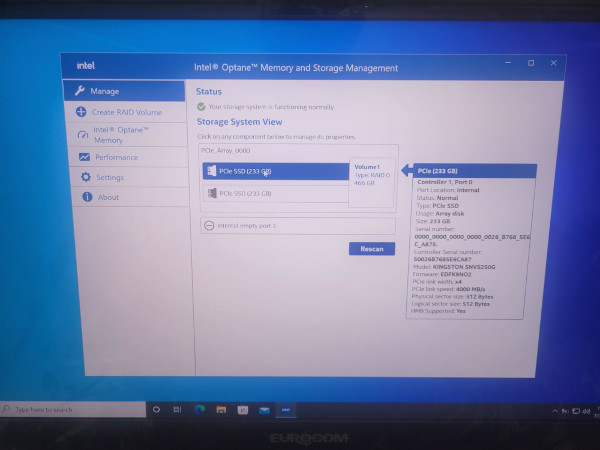

    For many years we have been using Intel Rapid Storage Technology to configure and make changes to our Storage Drives and RAID setups. Since the introduction of the Intel Z590 Chipset this software has been replaced by Intel Optane Memory and Storage Management software.

    If your Chipset is Intel Z590 or newer and you are trying to manage your SSD`s, Hard drives or your RAID setup using Intel Rapid Storage Technology but are missing features, download Intel Optane Memory and Storage Management from the provided Software Thumb drive provided with your laptop and install it. If you cannot find the provided Thumb drive you can also download the software from the App Store.

    Raptor X17 >>> How to flash BIOS?
    Jun 02, 2023
    PDF Document

    Please request BIOS via support form https://eurocom.com/ec/supportr()ec

    The following is required before we provide you BIOS Update.
    1/ serial number
    2/ Current BIOS / EC

    You will receive instructions how to create USB flash key, how to setup BIOS ready for Secure Boot etc ... all the way for BIOS flash.




    Can I disable the Touchpad on my Eurocom notebook?
    Jun 16, 2017

    If you like you can disable the Touch pad on your Eurocom Notebook. Simply select FN-F1 and it will toggle the Touch pad off and on.
