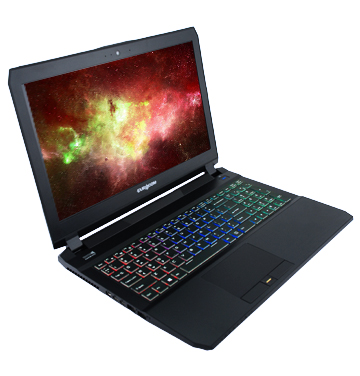

EUROCOM Sky MX5 R3
15.6-inch 4K UltraHD 60Hz 3840-by-2160, FHD 60Hz 1920-by-1080 or FHD 120Hz 1920x1080

  • Processor: on-board; Intel Core i7-7700HQ or i7-7820HK (Kaby Lake)
  • VGA Technology: on-board; NVIDIA GeForce GTX 1070 (8GB DDR5); MUX design (switchable between dGPU and iGPU)
  • Mechanical (Frame):brushed aluminum (back cover and bottom case) combined with heavy duty ABS plastic (front cover and top case).
  • Cooling: High performance, high quality copper VGA and CPU heatsinks to keep your system running cool.
  • Memory: Four 260-pin SODIMM sockets; DDR4-2400/2666; 1.2V; up to 64GB
  • Storage: up to 12TB of storage with 4 physical drives: 2x M.2 2280 SSD SATA3 / PCIe x4 and 2x HDD/SSD SATA3 6Gb/s and RAID 0/1
  • Communications: 1Gb LAN, WLAN, built in antenna for optional 3G/4G/LTE/HSPA
  • Card Reader: 6-in-1: MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push
  • Keyboard and Touchpad: Backlit multi-colour full size 7-colour keyboard with numeric pad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key
  • Ports: 2x USB 3.1c; 3x USB 3.0; 2 x mini Display Port 1.3; 1 x HDMI output; 2-in-1 Headphone + S/PDIF; 1 x Microphone-in; 1 x RJ-45 LAN; 1 x DC-in
  • Display Support: Supports up to 4 active internal and/or external displays
  • Operating Systems: Windows 10, 8.1 and 7
  • Security: Kensington Lock, Fingerprint and Embedded TPM 2.0 Encryption
  • Battery: 4cells Lithium Polymer; 60WH; up to 325 minutes in UMA mode
  • Weight: 2.65kg / 5.8lbs
  • Dimensions: WxDxH: 385x271x28.8mm / 15.16x10.66x1.15-inch
  •
    CustomizeSpecificationsImagesBrochureReviewsPrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price List
    Can I use an M.2 Drive as my primary hard drive or do I need a standard Hard drive installed?
    Jan 14, 2016

    If your notebook is equipped with an M.2 Hard Drive you can use it alone and as the primary drive in your notebook. There are no restriction on how it can be used.

    Thanks

    How do I activate the TPM Module in my Eurocom notebook
    Jun 05, 2015
    PDF Document

    To learn how to activate the TPM module in your Eurocom Notebook please download the attached .PDF document.

    How do I turn off the Adaptive Screen Brightness?
    Apr 26, 2023

    1.Go to Control Panel > Hardware and Sound > Power Options, then click on "Change plan settings" next to your active power plan.

    2.Click on "Change advanced power settings."

    3.Scroll down to Display, then under Enable adaptive brightness, switch it off for both the battery and plugged in modes.

    Thank You

    How do I turn off the Driver Auto Updates for Windows 10? They keep updating drivers I do not want updated
    Jun 15, 2017

    Occasionally Microsoft will use their Auto Update feature in Windows 10 and will send out new drivers to your notebook. Generally this is fine however sometimes you do not want drivers such as your Video Card drivers updated as the newest drivers will not work properly in your notebook. To turn off these driver updates please follow this easy procedure...

    1. Click Start, right-click Computer, and then click Properties.
    2. In the Tasks list, click Advanced System Settings.
    3. On the System Properties dialog box, click the Hardware tab, and then click Windows Update Driver Settings.
    4. Select Never check for drivers when I connect a device.
    5. Click OK twice, and then close the System dialog box.


    How do I update / flash my EUROCOM laptop with a new BIOS?
    Aug 13, 2015

    In order to get some of new GPUs working in your system you may require to update the BIOS. Please contact our Support Team to get updated version of BIOS Support Request Form



    Is it possible to turn the system fans on Full Speed to ensure my laptop remains cool?
    Jun 15, 2017

    During normal use the fans will increase speed on their own as heat builds however, many users like to prevent the temps in their notebook from building so they toggle the fans to full speed before stressing the notebook.

    If you are just sitting down to intense gaming or starting some heavy workload on your notebook and you want to turn your fans on full speed to keep things nice and cool, simply use the keystroke FN-1 and this will toggle the fans to full speed. Toggle the FN-1 again and the fans will return to their normal speed as you choose.

    On the Eurocom Tornado notebook there is a Fan button on the top case that will throttle the fans to full speed and back to normal as it is pushed. This is the only model Eurocom notebook that does not use the FN-1 selection to control fan speed.

    The Two Finger Scroll Gesture Is not working on my Windows 10 Laptop
    Oct 01, 2021

    I am trying to use Two Fingered Scroll on my Laptop at is running Windows 10. How do I fix this?

    Here is a link that will allow you to check your settings to ensure the gesture called Two Fingers Scrolling is enabled in Windows 10.

    https://www.makeuseof.com/tag/easily-activate-finger-scroll-windows-laptops/


    Where do I find drivers for my new VGA/GPU card?
    Jun 05, 2015

    The drivers for all Video Cards are available in our Product Showroom. On the Orange Options Menu you will see a series of links. Please choose Drivers and you will be taken to the proper drivers for your notebook.




    Who do I contact to get some help with my laptop upgrades?
    Jun 15, 2015

    If you have any questions or would like some assistance with your upgrade, please fill in this Support Request Form and our Support team would be happy to assist you!

    Support Request Form
