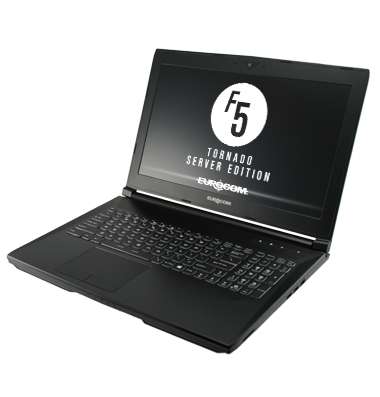

EUROCOM Tornado F5 SE

ConfigureSpecsUpgradeComponentsImagesBrochureManualDriversFAQs

15.6" (39.62cm); FHD 1920-by-1080 pixels; WLED backlit; eDP; LCD panel

  • Heavy Duty Mechanical Design Chassis: Aluminium Alloy (Back Cover and Top Case) and German manufactured resins (Front Cover and Bottom Case)
  • Weight: 2.92kg / 6.45 lbs w/ battery
  • Chipset: Intel C236 Server Chipset
  • Processor: XEON E3-1200 v5 series; socket based; LGA1151; up to 91W TDP
  • LAN Adapter: 1GbE on board; Qualcomm/Atheros E2500
  • Memory: up to 64GB; four 260-pin SODIMM sockets; DDR4-2133/2400/3000
  • Storage: up to 24TB of storage with 3 physical drives: 2x M.2 2280 PCIe x2/x4 or SATA SSD and 1x HDD/SSD (9.5mm) SATA3 6Gb/s
  • RAID Technology: RAID 0/1 with 2x NVMe SSDs
  • VGA Technology: upgradeable MXM 3.0; NVIDIA GeForce: GTX 1070, 1060, 980M, 970M or 965M; Quadro: M1000M, M3000M, M4000M, M5000M, P3000, P4000 and P5000; up to 150W TDP; discrete GPU only (no Optimus)
  • Card Reader: 6-in-1: UHS-II interface; MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push
  • Keyboard and Touchpad: Anti-ghosting backlit multi-colour 7-colour keyboard with seperate numeric keypad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key
  • Ports: 3x USB 3.0; 1x USB 3.1 type C (Thunderbolt 3); 1x miniDP 1.2; 1x HDMI 2.0; 1x Headphone; 1x Microphone-in; 1x S/PDIF (digital); 1x Line-in; 1x RJ-45 LAN; 1x DC-in
  • Audio: High Definition Audio; S/PDIF Digital Output; Built in microphone; Built in two 2W speakers; Sound Blaster X-FI MB3; External 7.1CH output (headphone, mic, line-in and S/PDIF).
  • Display Support: up to 4 active displays including internal LCD; up to 3840x2160 @ 60Hz
  • Battery: 8cells; 14.4V 5225mAh/75.24Wh Li-Ion; up to 130 minutes
  • Dimensions: 390x266x39.8mm / 15.6x10.64x1.59-inch
    		•
       Currency:      Price:

    Base Configuration
      Display Calibration

      Choose your LCD Display

      Processor / CPU

      Memory Configuration

      BIOS: Standard or Unlocked

      eXpansion Modules for 2-3 External Monitors

      GPU Technology

      VGA / GPU Graphics Options

      Thermal Paste: GPU Heatsink

      Thermal Paste; CPU Heatsink

      Operating System(s)

      Business Productivity Software

      Keyboard (Language)

      Internal PCIe NVMe M.2 SSD

      Internal PCIe NVMe M.2 SSD

      RAID Options: HDD/SSD Storage

      1st Drive: HDD, SSD or SSHD

      External Optical Drive

      Internal Card Reader

      Security Cables / Devices:

      Wireless LAN

      TV Tuner (Internal and/or External)

      Add Extra LAN Port(s):

      Built-in Web Camera

      HDMI Port(s)

      Thunderbolt Port

      Standard Battery (internal)

      Choose Extra Battery

      Standard Power Cord - included

      Standard AC Adapter

      Extra Power Cord

      Choose Extra AC Adapter

      Carrying Case / Backpack

      Choose Your Warranty Plan


    Options
      Extra Thermal Pads for M.2; VRAM; RAM

      Graphics Tablet / Stylus


    Accessories
      Docking Stations, Hubs and Port Replicators

      Car Adapters and Inverters

      Cables, Converters and Adapters

      Cables/Adapters for External Monitors; DP; mDP; HDMI; DVI
