| Launch Date: | January 10, 2017 |

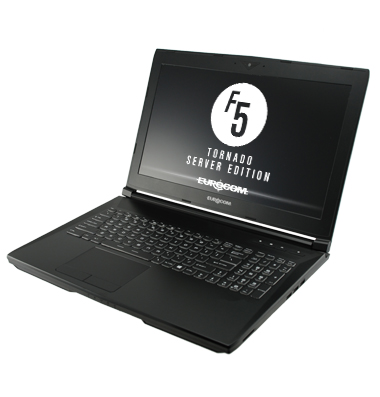

| Special Feature(s): | World's first Intel Xeon E3 1200 v5 series based "All-in-One" 6.4lbs / 2.92kg Mobile Server laptop with integrated 15.6-inch display, keyboard and built-in internal battery (UPS). |
| Main Chipset: | Intel C236 Chipset
|
| Processor: | Socket LGA 1151
TDP up to 91W
Xeon 1200 v5 series up to E3 1280 v5
|
| Video / GPU: | Modular; MXM 3.0
NVDIA GeForce GTX 980M, GTX 970M and GTX 965M
NVIDIA Quadro M1000M, M3000M, M4000M, M5000M
NVDIA GeForce GTX 1080, GTX 1070, GTX 1060
|
| Built-in PC Camera: | Built-in 2M FHD |
| LCD Size: | 15.6in (39.6cm) |
| LCD Specifications: | 15.6" FHD 1920x1080 @60Hz; IPS eDP
15.6" QFHD 3840x2160 @60Hz; IPS eDP
up to 4 active internal and/or external displays; up to 3084x2160 @ 60Hz
|
| Memory: | Four 260-pin SODIMM sockets
DDR4-2133/2400/3000/3200; up to 64GB |
| Total Storage: | up to 3 physical drives:
- 2x M.2 2280 SSD PCIe 2x/4x (NVMe) or SATA
- 1x 2.5" 9.5mm/7mm HDD/SSD/SHDD
- RAID 0/1 |
| Optical Drive: | External; USB based
|
| Card Reader: | 6-in-1 Push-Push Card Reader
Realtek RTS5249-GR
MMC/RSMMC SD/mini SD/SDHC/SDXC
UHS-II |
| Audio Architecture: | High Definition Audio; Realtek ALC8980GR
S/PDIF Digital Output
Built in microphone
Built in two 2W speakers and subwoofer
Sound Blaster X-FI MB5
External 7.1CH output (headphone, mic, line-in and S/PDIF)
ANSP 3D Sound Technology (headphone output) |
| LAN/WLAN/Bluetooth: | - 1Gb Ethernet LAN on-board; Killer/Rivet E2400
- WLAN / Bluetooth; M.2 2230 slot
|
| Security: | Kensington Lock
Intel PTT |
| Internal cards / # of slots/Type: | Three M.2 slots
-1st: WLAN M.2 2230 Card with PCIe x2 and USB
-2nd for SSD M.2 2280 Card with SATA / PCIe x2/x4
-3rd for SSD M.2 2280 Card with SATA / PCie x2/x4
|
| I/O Ports: | 1 x USB 3.1 (Thunderbolt 3 or DP 1.2 or HDMI 2.0)
3 x USB 3.0
1 x eSATA/USB 3.0
1 x miniDisplay Port 1.2
1 x HDMI 2.0
1 x Headphone out / SPDIF
1 x Microphone-in
1 x Line in
1 x Line out
1 x RJ-45 LAN
1 x DC-in |
| Internal Keyboard: | Multi-colour 7-colours backlit keyboard
TouchPad with multi-gesture and scrolling
W/A/S/D Gaming key |
| AC Adapter: | 230W 100-240V 50-60Hz Auto-switching
DC Output 19.5V, 16.9A
330W AC Adapter optional |
| Battery: | 8cells Smart Li-Ion; 14.4V; 5225mAh/75.24Wh
up to 130 minutes |
| Weight: | 2.92kg (6.45lbs) |
| Dimensions WxDxH: | 390x266x39.8mm; 15.60x10.64x1.59-inch
|
| Thickness: | 1.59in (39.8mm) |
| Shipping / Packaging L xWx H / N.W. / G.W.: | 547x112x319mm / 21.88x4.48x12.76 inch
5.48kg / 12lbs |
