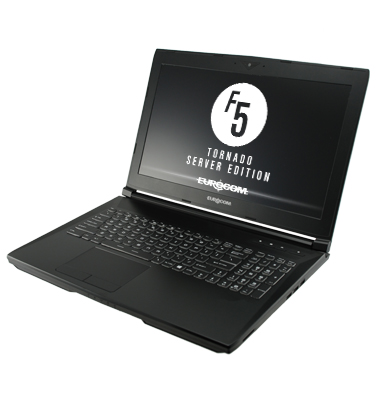

EUROCOM Tornado F5 SE
	15.6" (39.62cm); FHD 1920-by-1080 pixels; WLED backlit; eDP; LCD panel Heavy Duty Mechanical Design Chassis: Aluminium Alloy (Back Cover and Top Case) and German manufactured resins (Front Cover and Bottom Case) Weight: 2.92kg / 6.45 lbs w/ battery Chipset: Intel C236 Server Chipset Processor: XEON E3-1200 v5 series; socket based; LGA1151; up to 91W TDP LAN Adapter: 1GbE on board; Qualcomm/Atheros E2500 Memory: up to 64GB; four 260-pin SODIMM sockets; DDR4-2133/2400/3000 Storage: up to 24TB of storage with 3 physical drives: 2x M.2 2280 PCIe x2/x4 or SATA SSD and 1x HDD/SSD (9.5mm) SATA3 6Gb/s RAID Technology: RAID 0/1 with 2x NVMe SSDs VGA Technology: upgradeable MXM 3.0; NVIDIA GeForce: GTX 1070, 1060, 980M, 970M or 965M; Quadro: M1000M, M3000M, M4000M, M5000M, P3000, P4000 and P5000; up to 150W TDP; discrete GPU only (no Optimus) Card Reader: 6-in-1: UHS-II interface; MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push Keyboard and Touchpad: Anti-ghosting backlit multi-colour 7-colour keyboard with seperate numeric keypad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key Ports: 3x USB 3.0; 1x USB 3.1 type C (Thunderbolt 3); 1x miniDP 1.2; 1x HDMI 2.0; 1x Headphone; 1x Microphone-in; 1x S/PDIF (digital); 1x Line-in; 1x RJ-45 LAN; 1x DC-in Audio: High Definition Audio; S/PDIF Digital Output; Built in microphone; Built in two 2W speakers; Sound Blaster X-FI MB3; External 7.1CH output (headphone, mic, line-in and S/PDIF). Display Support: up to 4 active displays including internal LCD; up to 3840x2160 @ 60Hz Battery: 8cells; 14.4V 5225mAh/75.24Wh Li-Ion; up to 130 minutes Dimensions: 390x266x39.8mm / 15.6x10.64x1.59-inch

Currency:  CAD USD EUR GBP    Price:

Base Configuration   System and Display   EUROCOM Tornado F5 Server Edition   Choose your LCD Display   15.6-inch (39.6cm); 60Hz FHD 1920x1080; Matte; IPS; C/R 700:1; 300cd/m2; NTSC 72%; eDP; 30pin; LG LP156WF6-SPB1 15.6-inch (39.6cm); UHD; 60Hz; Matte; PLS; 700:1; 16ms; NTSC 72%; eDP; 40pin; Samsung LTN156FL02-101 [add $199] 15.6-inch (39.6cm); UHD; 3840x2160; 60Hz; Semi-Glossy; IPS/PLS; 700:1; NTSC 72%; eDP; Samsung LTN156FL02-L01 [add $199]   Display Calibration   Optional - choose from the options below: Professional Display Calibration with .icc Profile Saved on USB Flash Key [add $74]   eXpansion Modules for 2-3 External Monitors   None - Choose from the options below Matrox TripleHead2Go DisplayPort Edition; w/ 3 DP-out ports; up to 3 external displays; 5760x1080 (3x 1920x1080) or 3840x1200 (2x 1920x1200) [add $274]   GPU Technology   Single GPU support; Modular MXM3; Upgradeable   VGA / GPU Graphics Options   Quadro M1000M; 2GB GDDR5; N16P-Q1; 512 CUDA; MXM 3.0a; 40W Quadro M2000M; 4GB GDDR5; N16P-Q3; 640 CUDA; MXM 3.0a; 55W [add $83] Quadro M3000M; 4GB GDDR5; N16E-Q1; 1024 CUDA; MXM 3.0b; 28nm; 75W [add $250] Quadro M4000M; 4GB GDDR5; N16E-Q3; 1280 CUDA; MXM 3.0b; 100W [add $833] Quadro M5000M; 8GB GDDR5; N16E-Q5; 1536 CUDA; MXM 3.0b; 28nm; 100W [add $1500] 6GB GDDR5; NVIDIA GeForce GTX 1060; 1280 CUDA; N17E-G1; MXM 3.1b; 82x105mm; 75W [add $67] 8GB GDDR5X; NVIDIA GeForce GTX 1080; 2560 CUDA; N17E-G3; MXM 3.1; up to 150W [add $670]   GPU Heatsink - Thermal Paste   IC Diamond 7 Carat Thermal Compound for Maximum Performance Grizzly Kryonaut; Ultra High Performance Thermal Grease [add $25]   BIOS: Standard or Unlocked   Standard BIOS UNLOCKED BIOS [add $149]   Processor / CPU   Xeon E3-1240 v5; 4C/8T; 8MB L3; 3.5GHz; FCLGA1151; 14nm; 80W; SKL Xeon E3-1270 v5; 4C/8T; 8MB L3; 3.6GHz; FCLGA1151; 14nm; 80W [add $83] Xeon E3-1275 v5; 4C/8T; 8MB L3; 3.6GHz; FCLGA1151; 14nm; 80W; SKL [add $333] Xeon E3-1280 v5; 4C/8T; 8MB L3; 3.7GHz; FCLGA1151; 14nm; 80W; SKL [add $500] Xeon E3-1240 V6; 4C/8T; 8MB L3; 3.7GHz; FCLGA1151; 14nm; 72W; KBL [add $83] Xeon E3-1275 V6; 4C/8T; 8MB L3; 3.8GHz; FCLGA1151; 14nm; 73W; KBL [add $417] 3.3GHz (up to 3.9GHz) Intel Core i5-6600; 4C/4T; 6MB; 14nm; LGA1151; 65W [sub $337]   CPU Heatsink - Thermal Paste   IC Diamond 7 Carat Thermal Compound for Maximum Performance Grizzly Kryonaut; Ultra High Performance Thermal Grease [add $25]   Memory (RAM) Configuration   16GB; 1x 16GB; DDR4-2400; 260-pin; 1.2V; 1 SODIMM; G-Skill F4-2400C16S-16GRS 16GB; 1x 16GB; DDR4-2400; CL14; 260-pin; Kingston HyperX; 1.2V; 1 SODIMM 16GB; 1x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 1 SODIMM [add $17] 32GB; 2x 16GB; DDR4-2400; 260-pin; 1.2V; 2 SODIMMs; G-Skill F4-2400C16S-16GRS [add $333] 32GB; 2x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 2 SODIMMs [add $367] 32GB; 2x 16GB; DDR4-2400; CL14; 260-pin Kingston HyperX; 1.2V; 2 SODIMMs [add $333] 64GB; 4x 16GB; DDR4-2400; CL14; 260-pin; Kingston HyperX; 1.2V; 4 SODIMMs [add $833] 64GB; 4x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 4 SODIMMs [add $1067] 64GB; 4x 16GB; DDR4-2400; 260-pin; 1.2V; 4 SODIMMs; G-Skill F4-2400C16S-16GRS [add $833] 64GB; 2x 32GB; ECC; DDR4-2666; 260-pin; 1.2V; 2 SODIMMs [add $867] 64GB; 2x 32GB; DDR4-2666; Samsung; 260-pin; 1.2V; 2 SODIMMs [add $867]   Operating System(s)   None - Choose from the options below for Pre-install or install your own Microsoft Windows Server 2012 R2 x64 Standard; OEM Edition; w/ 5 CTL User CAL [add $1166] Microsoft Windows Server 2012 R2 x64 Standard; OEM Edition; w/ 10 CTL User CAL [add $1349] Microsoft Windows Server 2012 R2 x64 Standard; OEM Edition; w/ 15 CTL User CAL [add $1533] Microsoft Windows Server 2012 R2 x64 Standard; OEM Edition; w/ 20 CTL User CAL [add $1716] Linux Ubuntu installed; LTS 18.04; USB key; check for H/W limitations when ordering [add $163] Microsoft Windows 10 Home; 64-bit; OEM; USB key [add $166] Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key [add $208] Microsoft Windows 7 Professional 64-bit; OEM; with DVD and USB key [add $333] Microsoft Windows Server 2016 Standard; OEM Edition; w/ 5 CTL User CAL [add $1249] Microsoft Windows Server 2016 Standard; OEM Edition; w/ 1 CTL User CAL [add $916] Microsoft Server 2016 Datacenter; OEM Edition; w/ 5 User CAL [add $5829] Microsoft Server 2016 Datacenter; OEM Edition; w/ 25 User CAL [add $7079] Microsoft Windows Server 2019 x64 Standard; OEM; w/ 1 CTL User CAL [add $1249] Microsoft Windows Server 2019 x64 Standard; OEM; w/ 5 CTL User CALs [add $1666]   Keyboard (Language)   US English; QWERTY; Backlit Français / French; AZERTY; Backlit [add $83] Español / Spanish; QWERTY; Backlit [add $83] Alemán / German; QWERTZ; Backlit [add $83] Italiana / Italian; QWERTY; Backlit [add $83] Russian Latin; QWERTY; Backlit [add $83] UK English; QWERTY; Backlit [add $83]   Office/Business Productivity Software   None - Choose from the options below Microsoft Office 2021 Home and Student Edition; OEM; MLK; US/Canada version [add $129] Microsoft Office 2021 Home and Business Edition; OEM; MLK; US/Canada version [add $229]   Internal M.2 SSD Storage: NVMe or SATA   Choose your M.2 SSD from the options below (under the HDD cover): 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $249] 500GB; M.2; SSD; SATA3; R/W: 560/510MB/s; MICRON / CRUCIAL MX500 [add $166] 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $274] 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $333] 500GB; M.2 SAMSUNG 980 Pro; SSD; PCIe 4.0; NVMe; R/W: up to 7000/5100MB/s [add $416] 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $583] 1TB SSD; SAMSUNG 980 Pro; PCIe 4.0 NVMe M.2 2280; R/W: up to 7000/5100 MB/s [add $916] 1TB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $749] 2TB SSD; SAMSUNG 980 Pro; PCIe 4.0 NVMe M.2 2280; R/W: up to 7000/5100 MB/s [add $1499] 2TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $1249] 4TB; NVMe M.2; SSD; 22x80mm; Sabrent Rocket Q [add $2083] 8TB; M.2 NVMe SSD; 22x80mm; Sabrent Rocket Q; 5.7g/2.4oz [add $3333]   Internal M.2 SSD Storage: NVMe or SATA   Choose your M.2 SSD from the options below (under the CPU cover): 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $249] 500GB; M.2; SSD; SATA3; R/W: 560/510MB/s; MICRON / CRUCIAL MX500 [add $166] 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $274] 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $333] 500GB; M.2 SAMSUNG 980 Pro; SSD; NVMe; R/W: up to 7000/5100MB/s [add $416] 1TB SSD; SAMSUNG 980 Pro; PCIe 4.0 NVMe M.2 2280; R/W: up to 7000/5100 MB/s [add $916] 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $583] 2TB; M.2 SAMSUNG 970 Evo; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2500 MB/s [add $1249] 2TB SSD; SAMSUNG 980 Pro; PCIe 4.0 NVMe M.2 2280; R/W: up to 7000/5100 MB/s [add $1499] 4TB; NVMe M.2; SSD; 22x80mm; Sabrent Rocket Q [add $2083] 8TB; M.2 NVMe SSD; 22x80mm; Sabrent Rocket Q; 5.7g/2.4oz [add $3333]   RAID Options: HDD/SSD Storage   None - Choose from the options below RAID 0 setup - for maximum performance; minimum 2 physical drives are required [add $63] RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required [add $63] RAID 5 setup; 3 physical drives are required [add $63] Multiple Partitions with One O/S - please specify size of each partition [add $63] Multiple Partitions with Two O/S; please specify size of each partition; order 2nd O/S [add $63]   1st Drive: HDD, SSD or SSHD   1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in 1TB; HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm [add $142] 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm [add $33] 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W 560/530 MB/s [add $100] 480GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; R/W: 500/440 MB/s; 7mm 2.5-inch [add $308] 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm [add $267] 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s [add $312] 800GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; 7mm; R/W: 500/440 MB/s [add $642] 1TB SSD; SATA3; Micron 1100; 7mm; 2.5in [add $395] 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; MZ-77E1T0B/AM [add $395] 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $562] 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $1145] 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $812] 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $1645] 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm [add $3978] *** Without Hard Drive; with HDD bracket included *** [sub $56]   External Optical Drive   None - Choose from the options below External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0 [add $195] 24x DVD-RW; External; USB 2.0 [add $104]   Internal Card Reader   6-in-1 Card Reader; MMC/RSMMC/SD/MiniSD/SDHC/SDXC; UHS-II interface   TV Tuner (Internal and/or External)   None - Choose from the options below External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE [add $83]   Wireless LAN   2-in-1: 802.11a/c WLAN + Bluetooth 4.0; Intel Wireless-AC 7265; M.2 2230 2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8260; M.2 2230; up to 867Mbps; 2.4GHz/5GHz [add $17] 2-in-1: 802.11ac WLAN+Bluetooth 5; Intel Wireless-AC 9260; M.2 2230; up to 1.73Gbps [add $67] 2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8265; M.2 2230; up to 867Mbps; 2.4GHz/5GHz [add $33] 2-in-1; 802.11ac WLAN + Bluetooth 5; Killer Wireless-AC 1550 [add $67] 2-in-1; 802.11a/b/g/n/ac WLAN + Bluetooth 4.1; Killer Wireless-AC 1535 [add $33]   LAN Adapter - Extra Ports   Optional - Add Extra LAN Port(s) External USB 3.0 to 1GbE LAN Port (1x RJ45); Startech [add $89] External USB 3.0 to 2x 1GbE LAN; Startech; 2x RJ45 ports [add $149]   Built-in Web Camera   2.0 Megapixels; Webcam; Built-in Without Webcam installed [add $49]   Thunderbolt Port   1x Thunderbolt 3 (via USB 3.1 type C)   HDMI Port(s)   HDMI 2.0 Output Port   Standard Battery (internal)   8-cells Lithium-lon Battery; Easy to change   Choose Extra Battery   None - Choose from the options below 8-cells Lithium-lon Battery; Easy to change [add $149] 2pcs of 8-cells Smart Li-Ion Battery [add $298]   Standard AC Adapter   230W; 100V-250V; Auto-Switching (Worldwide) 280W AC Adapter; Auto switching;100-240V; w/ Round Plug [add $45] 330W AC Adapter; Auto-switching; 100-240V; 50-60Hz; DC 19.5V @ 16.9A [add $67]   Standard Power Cord - included   USA / Canada EUROPE UK SOUTH AFRICA AUSTRALIA   Extra Power Cord   None - Choose from the options below 1 Extra; USA/CANADA [add $8] 2 Extra; US/CANADA [add $15] 1 Extra; UK [add $8] 1 Extra; EUROPE [add $8] 1 Extra; SOUTH AFRICA [add $8] 1 Extra; AUSTRALIA [add $8] 2 Extra; AUSTRALIA [add $15] 2 Extra; SOUTH AFRICA [add $15] 2 Extra, EUROPE [add $15] 2 Extra; UK [add $15]   Choose Extra AC Adapter   None - Choose from the options below 230W; Auto-switching 100V-250V [add $121] 2 extra 230W AC Adapters; 100V-250V [add $242] 280W AC Adapter; Auto switching;100-240V; w/ Round Plug [add $166] 330W AC Adapter; 100-240V; w/ 4pin round plug [add $188] 2 extra 330W AC Adapters; Auto-switching; 100-250V [add $375]   Carrying Case   None - Choose from the options below Targus Trademark Notepac Plus Case 16-in, Black (CTM400); internal: 14.5x2x11.75in [add $83] TARGUS 16-inch Sport Backpack; Heavy-Duty Fabrics with Nylon Webbing Reinforcement; TCG650 [add $83] 17.3-inch Sport Backpack; Black; Targus Voyager TSB045CA [add $124] EVERKI TITAN; XXL Backpack for up to 18.4-inch laptops; EKP120 [add $208] 17-18-inch (43.1-45.7cm); Black; Clamshell; Targus CNXL18 Laptop Pro Case [add $158] 17-inch Rolling Travel Case; Black Nylon; Exterior 457x381x254mm / 18.28x15.24x10.16inch; Targus TCG717 [add $108]   Choose Your Warranty Plan   1 Year Return to Factory Depot with 1 Year of Tech Support 2 Years Return to Factory Depot with 2 Years of Tech Support [add $229] 3 Years Return to Factory Depot with 3 Years of Tech Support [add $349] Options   Extra Thermal Pads for M.2; VRAM; RAM   None - Choose from the options below: Set of M.2 SSD Thermal pads 45x19x8mm for Tornado F5/F7 [add $29]   Graphics Tablet / Stylus   None, Choose from the options below Wacom Intuos Pro;Small; 10.6x6.7in (active 6.3x3.9in); Pen Tablet; PTH460K0A [add $333] Wacom Intuos Pro - Medium; 13.2x8.5in (active 8.7x5.8in); Pen Tablet; PTH660 [add $416] Wacom Intuos Pro - Large; 16.8x11.2in (active 12.1x8.4in); Pen Tablet; PTH860 [add $583] Accessories   Docking Stations, Hubs and Port Replicators   None - Choose from the options below USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz [add $66] USB 3.0 Universal Docking Station; Targus DOCK160USZ; 2x DP 1.2; 2x HDMI 2.0; 1GbE LAN; 4x USB 3.0; 1x USB 3.1 Gen1 (C); Audio in/out; Lock slot [add $249]   Car Adapters and Inverters   None - Choose from the options below 700W Portable Power Inverter; 3 AC Outlets (US); Tripplite; 12V AC/60Hz; 12V DC, 1.26kg; 70x207.5x126mm [add $149] 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs [add $99]   Cables, Converters and Adapters   None - Choose from the options below: 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS [add $166] 2pcs DisplayPort to DVi-I Converter Cables for Matrox TH2G or DH2G DP Edition [add $48] 1pc DisplayPort to DVi-I Converter Cable for DP port and/or Matrox DH2G or TH2G DP Edition [add $24] 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10 [add $58]   DisplayPort Adapters, Cables and Converters   None - choose from the options below: MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID [add $191] HDMI or DVI to DP Active Converter (converts HDMI, DVI or Mini DVI input into a DP output); HDMI2DP [add $108] 10ft (3m) MiniDP to DP Cable; M/M; MDP2DPMM10 [add $58] 6-inch MiniDP to DP cable; M/F; MDP2DPMF6IN [add $41]   Security Cables and Security Devices   None - Choose from the options below Targus - Defcon CL Cable PA410C [add $41] Targus Defcon 1 Alarm Device PPA400C [add $41]
