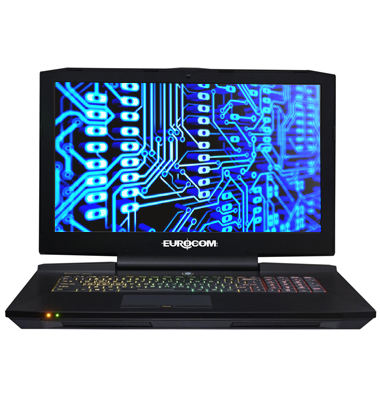

EUROCOM Sky X9W
Choice of FHD, QHD up to UHD 3840-by-2160 pixels; 17.3-inch (43.94mm); LCD Display; eDP; 100% AdobeRGB

The EUROCOM Sky X9W is heavy duty, high performance workstation-class laptop designed to replace desktop based workstation. It is GPU-and CPU-upgradeable, fully customizable and extremely flexible design, allowing the Sky X9W to be configured with a variety of options including wide range of Quadro GPUs and high performance desktop socket processors.

  • Chipset: Intel Z170 Express
  • VGA Technology: Quadro P5000, P3000, M5000M, K51000M, M4000M, M3000M, K3100M, M1000M or K1100M; GeForce GTX: 980M, 980, 970M, 1060 or 1070; supports 2nd card for PhysX; two MXM 3.0 slots; GPU-upgradeable
  • Processor: socket LGA1151, up to Intel i7-6700K, fully unlocked
  • Memory: up to 64GB; DDR4-2133 or DDR4-2400; 4 SODIMM sockets
  • Display Technology: supports up to 4 active displays (internal LCD and 3 external) via 2x miniDP 1.2 and/or 1x HDMI 2.0 and/or miniDP 1.2 (TB3 port); Nvidia Surround View
  • Storage: up to 20TB with 4 drives; 2x HDD/SSD (SATA3) + 2x M.2 PCIe Gen3 x4/SATA3; RAID 0/1
  • Communications: 2x 1GbE LAN RJ-45 ports Killer E2400 and WLAN/Bluetooth; Killer DoubleShot X3
  • Operating Systems: Microsoft Windows: 10, 8.1 and 7; Linux; CentOS
  • Expansion: Docking station available via Thunderbolt 3
  • Card Reader: 6-in-1 MMC/RSMMC/SD/miniSD/SDHC/SDXC up to UHS-II
  • Keyboard: Illuminated, backlit with customizable 7-colours
  • Security: TPM 2.0, Fingerprint and Kensington Lock
  • Audio System: Sound Blaster X-Fi MB5; external 7.1CH audio output; headphone out, microphone in, S/PDIF and Line-in port; two built-in FORSTER Speakers (2.2W)+ Subwoofer (2.5W)
  • Ports: 1x Thunderbolt 3 (USB 3.1 type C/HDMI 2.0/DP 1.2); 2x miniDP 1.2; 1x HDMI 2.0; 5x USB 3.0 (1x Powered USB AC/DC); S/PDIF; Headphone; Mic; Line-in; 2x RJ45 (LAN)
  • Weight and dimensions: 4.8kg / 10.56lbs; WxDxH 428x308x45mm / 17.12x12.32x1.8-inch
    •
    CustomizeSpecificationsImagesVideosBrochureBenchmarksReviewsPrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price ListLCD Chart
    Launch Date:January 20, 2016
    Special Feature(s):Intel Z170 Chipset; Skylake-S; supports Quadro Mx000M series
    Main Chipset:Intel Z170 (Skylake)
    Processor:Socket LGA 1151
    Skylake-S; up to i7-6700K, unlocked
    Video / GPU:Two MXM 3.0 slots
    supports single or dual/SLI
    NVIDIA Quadro: P5000, M5000M, K5100M, M4000M, M3000M, K3100M
    NVIDIA: GeForce GTX 980M MXM 3.0b cards (83x105mm)
    or single GTX 980 / N16E-GXX (107.6x115mm); up to 200W
    Built-in PC Camera:Built-in 2M FHD
    LCD Size:17.3in / 43.9cm
    LCD Specifications:17.3" FHD 1920x1080 or 4K Ultra HD 3840x2160
    Supports 4 active displays
    Memory:Four 260-pin, 1.2V, SODIMM sockets
    DDR4-2133/2400; up to 64GB
    Total Storage:up to 4 physical drives:
    - 2x M.2 2280 SSD PCIe Gen3 2x/4x or SATA
    - 2x 2.5" 9.5mm/7mm HDD/SSD/SHDD
    - RAID 0/1/5/10
    Optical Drive:External USB based
    DVD-RW or Blu Ray Burner
    Card Reader:6-in-1 Push-Push Card Reader
    MMC/RSMMC SD/mini SD/SDHC/SDXC
    UHS-II (SD 4.0)
    Audio Architecture:High Definition Audio
    S/PDIF Digital Output
    Built in array microphone
    Built in two 2W speakers (Forster) and subwoofer
    Sound Blaster X-FI MB5
    External 7.1CH output (headphone, mic, line-in and S/PDIF)
    ANSP 3D Sound Technology (headphone output)
    LAN/WLAN/Bluetooth:- WLAN / Bluetooth; M.2 2230 slot
    - Two 10/100/1000 Ethernet LAN on-board; Killer E2400
    - Support Killer Double Shot-X3 Pro
    Security:Kensington Lock
    Fingerprint
    TPM 2.0 on-board (Infineon SLB9665-TCG)
    Internal cards / # of slots/Type:Three M.2 slots
    -1st: WLAN M.2 2230 Card with PCIe x2 and USB (A Key)
    -2nd for SSD M.2 2280 Card with SATA / PCIe x2/x4 (M key)
    -3rd for SSD M.2 2280 Card with SATA / PCie x2/x4 (M key)
    I/O Ports:1 x USB 3.1 type C / Thunderbolt 3 / DP 1.2 / HDMI 2.0
    5 x USB 3.0 (1x powered USB port, AC/DC)
    2 x miniDisplay Port 1.2
    1 x HDMI 2.0 output
    1 x Headphone
    1 x Microphone-in
    1 x S/PDIF (digital)
    1 x Line in
    2 x RJ-45 LAN
    1 x DC-in
    Internal Keyboard:Backlit full size keyboard with numeric pad
    TouchPad with multi-gesture and scrolling
    W/A/S/D Gaming key
    AC Adapter:330W 100-240V 50-60Hz Auto-switching (worldwide)
    optional 660W (2x 330W) for Extreme Performance
    Battery:8cells Smart Li-Ion; 89W
    FexiCharger (via BIOS)
    Weight:4.8kg / 10.5lbs
    Dimensions WxDxH:428x308x45mm; 17.1x12.3x1.8-inch
    Thickness:1.6in / 39.9mm
