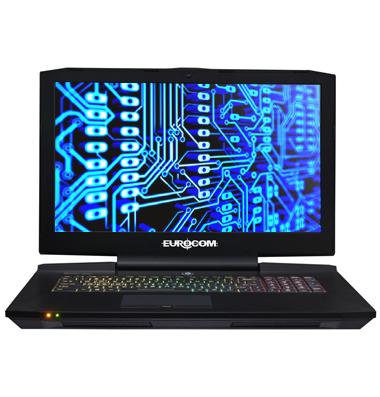

EUROCOM Sky X9W
Choice of FHD, QHD up to UHD 3840-by-2160 pixels; 17.3-inch (43.94mm); LCD Display; eDP; 100% AdobeRGB

The EUROCOM Sky X9W is heavy duty, high performance workstation-class laptop designed to replace desktop based workstation. It is GPU-and CPU-upgradeable, fully customizable and extremely flexible design, allowing the Sky X9W to be configured with a variety of options including wide range of Quadro GPUs and high performance desktop socket processors.

  • Chipset: Intel Z170 Express
  • VGA Technology: Quadro P5000, P3000, M5000M, K51000M, M4000M, M3000M, K3100M, M1000M or K1100M; GeForce GTX: 980M, 980, 970M, 1060 or 1070; supports 2nd card for PhysX; two MXM 3.0 slots; GPU-upgradeable
  • Processor: socket LGA1151, up to Intel i7-6700K, fully unlocked
  • Memory: up to 64GB; DDR4-2133 or DDR4-2400; 4 SODIMM sockets
  • Display Technology: supports up to 4 active displays (internal LCD and 3 external) via 2x miniDP 1.2 and/or 1x HDMI 2.0 and/or miniDP 1.2 (TB3 port); Nvidia Surround View
  • Storage: up to 20TB with 4 drives; 2x HDD/SSD (SATA3) + 2x M.2 PCIe Gen3 x4/SATA3; RAID 0/1
  • Communications: 2x 1GbE LAN RJ-45 ports Killer E2400 and WLAN/Bluetooth; Killer DoubleShot X3
  • Operating Systems: Microsoft Windows: 10, 8.1 and 7; Linux; CentOS
  • Expansion: Docking station available via Thunderbolt 3
  • Card Reader: 6-in-1 MMC/RSMMC/SD/miniSD/SDHC/SDXC up to UHS-II
  • Keyboard: Illuminated, backlit with customizable 7-colours
  • Security: TPM 2.0, Fingerprint and Kensington Lock
  • Audio System: Sound Blaster X-Fi MB5; external 7.1CH audio output; headphone out, microphone in, S/PDIF and Line-in port; two built-in FORSTER Speakers (2.2W)+ Subwoofer (2.5W)
  • Ports: 1x Thunderbolt 3 (USB 3.1 type C/HDMI 2.0/DP 1.2); 2x miniDP 1.2; 1x HDMI 2.0; 5x USB 3.0 (1x Powered USB AC/DC); S/PDIF; Headphone; Mic; Line-in; 2x RJ45 (LAN)
  • Weight and dimensions: 4.8kg / 10.56lbs; WxDxH 428x308x45mm / 17.12x12.32x1.8-inch
    •
    CustomizeSpecificationsImagesVideosBrochureBenchmarksReviewsPrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price ListLCD Chart
    Base Configuration
      System and Display
      - EUROCOM Sky X9W
      Choose your LCD Display
      - 17.3-inch (43.9cm); 60Hz; UHD; 3840x2160; Matte; Adobe 100% sRGB; eDP
      - 17.3-inch; 120Hz; QHD 2560x1440; Matte; TN; 5ms; 700:1; 400nts; NTSC 72%; eDP; AUO B173QTN01.0
      - 17.3-inch (43.9cm); 60Hz; FHD 1920x1080; Matte; IPS; 300nts; 700:1; 72% NTSC; eDP; 30pin
      Security - ANTI SPYING Package
      - Choose: optional Factory ANTI SPYING package.
      - Physical Removal of internal Webcam, Microphone and WLAN/Bluetooth Module
      - Physical Removal of internal Webcam and Microphone.
      Display Calibration
      - Optional - choose from the options below:
      - Professional Display Calibration with .icc Profile Saved on USB Flash Key
      eXpansion Modules for 2-3 External Monitors
      - None - Choose from the options below
      - Matrox TripleHead2Go DisplayPort Edition; w/ 3 DP-out ports; up to 3 external displays; 5760x1080 (3x 1920x1080) or 3840x1200 (2x 1920x1200)
      3D Devices for Precision Engineering
      - None, Choose from the options below:
      - 3Dconnexion CadMouse for Precision Engineering
      - 3Dconnexion SpaceMouse Enterprise for Precision Engineering; 3DX-700056
      Primary GPU-1
      - 4GB GDDR5; NVIDIA Quadro M3000M (N16E-Q1); 1024 CUDA; MXM 3.0b; 28nm; 75W
      - 8GB GDDR5; NVIDIA Quadro M5000M (N16E-Q5); 1536 CUDA; MXM 3.0b; 28nm; 100W
      - 4GB GDDR5; NVIDIA Quadro M4000M (N16E-Q3); 1280 CUDA; OpenGL 4.5; MXM 3.0b; 28nm; 100W
      - 2GB GDDR5; NVIDIA Quadro M1000M (N16P-Q1); 512 CUDA; 28nm; MXM 3.0a; 40W
      - 4GB GDDR5; NVIDIA Quadro K3100M (N15E-Q1); 768 CUDA; MXM 3.0b; 75W
      - 8GB GDDR5; NVIDIA Quadro K5100M (N15E-Q5); 1536 CUDA; MXM 3.0b; 100W
      - 6GB GDDR5; NVIDIA Quadro P3000 (N17E-Q1); 1280 CUDA; OpenGL; MXM 3.1; 16nm; 75W
      - 8GB GDDR5; NVIDIA Quadro P4000 (N17E-Q3); 1792 CUDA; OpenGL; MXM 3.1; 16nm; 100W
      - 16GB GDDR5; NVIDIA Quadro P5000 (N17E-Q5); 2048 CUDA; OpenGL; MXM 3.1; 16nm; 100W
      Secondary GPU-2
      - Add 2nd GPU for PhysX processing from the list below:
      - 8GB GDDR5; NVIDIA GTX 980M (N16E-GX); 1536 CUDA; 28nm; MXM 3.0b; 100W
      - 4GB GDDR5; NVIDIA Quadro K3100M (N15E-Q1); 768 CUDA; MXM 3.0b; 75W
      - 8GB GDDR5; NVIDIA Quadro M5000M (N16E-Q5); 1536 CUDA; 28nm; MXM 3.0b; 100W
      - 8GB GDDR5; NVIDIA Quadro K5100M (N15E-Q5); 1536 CUDA; MXM 3.0b; 100W
      - 8GB GDDR5; NVIDIA Quadro P4000 (N17E-Q3); 1792 CUDA; MXM 3.1; 16nm; 100W
      - 6GB GDDR5; NVIDIA Quadro P3000 (N17E-Q1); 1280 CUDA; MXM 3.1; 16nm; 75W
      - 16GB GDDR5; NVIDIA Quadro P5000 (N17E-Q5); 2048 CUDA; MXM 3.1; 16nm; 100W
      GPU Heatsink - Thermal Paste
      - IC Diamond 7 Carat Thermal Compound for Maximum Performance
      - Grizzly Kryonaut; Ultra High Performance Thermal Grease
      BIOS: Standard or Unlocked
      - Standard BIOS
      Processor / CPU
      - 4GHz (up to 4.2GHz) Intel Core i7-6700K; 4C/8T; 8MB; 14nm; LGA1151; 91W
      - 3.3GHz (up to 3.9GHz) Intel Core i5-6600; 4C/4T; 6MB; 14nm; LGA1151; 65W
      - 3.4GHz (up to 4GHz) Intel Core i7-6700; 4C/8T; 8MB; 14nm; LGA1151; 65W
      CPU Heatsink - Thermal Paste
      - IC Diamond 7 Carat Thermal Compound for Maximum Performance
      - Grizzly Kryonaut; Ultra High Performance Thermal Grease
      Memory (RAM) Configuration
      - 16GB; 2x 8GB; DDR4-2400; 260-pin; 1.2V; 2 SODIMMs; Micron
      - 16GB; 2x 8GB; DDR4-2400; CL14; 260-pin; 1.2V; Kingston HyperX; 2 SODIMMs
      - 32GB; 4x 8GB; DDR4-2400; CL14; 260-pin;1.2V; Kingston HyperX; 4 SODIMMs
      - 32GB; 2x 16GB; DDR4-2400; CL14; 260-pin Kingston HyperX; 1.2V; 2 SODIMMs
      - 32GB; 2x 16GB; DDR4-2400; 260-pin; 1.2V; 2 SODIMMs; G-Skill F4-2400C16S-16GRS
      - 64GB; 4x 16GB; DDR4-2400; 260-pin; 1.2V; 4 SODIMMs; G-Skill F4-2400C16S-16GRS
      - 64GB; 4x 16GB; DDR4-2400; CL14; 260-pin; Kingston HyperX; 1.2V; 4 SODIMMs
      Operating System(s)
      - None - Choose from the options below for Pre-install or install your own
      - Microsoft Windows 10 Home; 64-bit; OEM; USB key
      - Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key
      - Microsoft Windows 7 Professional 64-bit; OEM; with DVD and USB key
      - Linux Ubuntu installed; LTS 18.04; USB key; check for H/W limitations when ordering
      Keyboard (Language)
      - US English; QWERTY; Backlit
      - UK English; QWERTY; Backlit
      - Alemán / German; QWERTZ; Backlit
      - Chinese; QWERTY; Backlit
      - Danske / Danish; QWERTY; Backlit
      - Español / Spanish; QWERTY; Backlit
      - Français / French; AZERTY; Backlit
      - Italiana / Italian; QWERTY; Backlit
      - Norske / Norwegian; QWERTY; Backlit
      - Português / Portugese; QWERTY; Backlit
      - Svenska / Swedish; QWERTY; Backlit
      - Swiss German; QWERTZ; Backlit
      Office/Business Productivity Software
      - None - Choose from the options below
      - Microsoft Office 2021 Home and Student Edition; OEM; MLK; US/Canada
      - Microsoft Office 2021 Home and Business Edition; OEM; MLK; US/Canada
      RAID Options: M.2 PCIe/M.2 SATA/mSATA Storage
      - None - Choose from the options below:
      - RAID 0 - for maximum performance; 2x M.2 SSDs are required
      - RAID 1 - for redundancy; 2x M.2 SSDs are required
      Internal M.2 SSD Storage: NVMe or SATA
      - Choose your SSD M.2 type 2280 (80x22nm) from the options below:
      - 250GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 500GB; M.2 SAMSUNG 980 Pro; SSD; PCIe 4.0; NVMe; R/W: up to 7000/5100MB/s
      - 1TB SSD; SAMSUNG 980 Pro; PCIe 4.0 NVMe M.2 2280; R/W: up to 7000/5100 MB/s
      - 1TB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 2TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      Internal M.2 SSD Storage: NVMe or SATA
      - Choose your SSD M.2 type 2280 (80x22mm) from the options below:
      - 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2 SAMSUNG 980 Pro; SSD; NVMe; R/W: up to 7000/5100MB/s
      - 1TB SSD; SAMSUNG 980 Pro; PCIe 4.0 NVMe M.2 2280; R/W: up to 7000/5100 MB/s
      - 1TB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 2TB; M.2 SAMSUNG 970 Evo; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2500 MB/s
      RAID Options: HDD/SSD Storage
      - None - Choose from the options below
      - RAID 0 setup - for maximum performance; minimum 2 physical drives are required
      - RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required
      - RAID 5 setup; 3 physical drives are required
      - RAID 10 setup; 4 physical drives are required
      - Dual RAID Setup; RAID 0 and RAID 1; 4 physical drives are required
      - Multiple Partitions with One O/S - please specify size of each partition
      - Multiple Partitions with Two O/S; please specify size of each partition; order 2nd O/S
      1st Drive: HDD, SSD or SSHD
      - 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in
      - 1TB; HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in
      - 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm
      - 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm
      - 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W 560/530 MB/s
      - 480GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; R/W: 500/440 MB/s; 7mm 2.5-inch
      - 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm
      - 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s
      - 800GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; 7mm; R/W: 500/440 MB/s
      - 1TB SSD; SATA3; Micron 1100; 7mm; 2.5in
      - 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; MZ-77E1T0B/AM
      - 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm
      - *** Without Hard Drive; with HDD bracket included ***
      2nd Drive: HDD, SSD or SSHD
      - Choose your 2nd HDD/SSD/SHHD from the options below:
      - 1TB HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in
      - 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in
      - 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm
      - 256GB SSD; MLC; Micron M1100; SATA3 6Gb/s; 7mm; 2.5
      - 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s
      - 480GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; R/W: 500/440 MB/s; 7mm 2.5-inch
      - 512GB SSD; MLC; Micron M1100; SATA3 (6Gb/s); 7mm
      - 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s
      - 800GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; 7mm; R/W: 500/440 MB/s
      - 1TB SSD; MLC; Micron 1100 TLC 3D NAND; SATA3 6Gb/s; 7mm; 2.5-inch
      - 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 8TB SSD; Micron 5100 Enterprise; SATA3 6Gb/s; R/W (MB/s): 540 / 520; 2.5inch; 7mm
      External Optical Drive
      - None - Choose from the options below
      - External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0
      - 24x DVD-RW; External; USB 2.0
      Internal Card Reader
      - 6-in-1 Card Reader; MMC/RSMMC/SD/MiniSD/SDHC/SDXC; UHS-II interface
      Biometric Device
      - Built-in Fingerprint Reader
      Embedded Security Chip
      - None, embedded TPM 2.0 encryption motherboard version available
      - Embedded TPM 2.0 Security Chip for Data Encryption
      TV Tuner (Internal and/or External)
      - None - Choose from the options below
      - External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE
      Wireless LAN
      - 2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8260; M.2 2230; up to 867Mbps; 2.4GHz/5GHz
      - 2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8265; M.2 2230; up to 867Mbps; 2.4GHz/5GHz
      - 2-in-1; 802.11ac WLAN + Bluetooth 5; Killer Wireless-AC 1550
      - 2-in-1; 802.11a/b/g/n/ac WLAN + Bluetooth 4.1; Killer Wireless-AC 1535
      Built-in Web Camera
      - 2.0 Megapixels; Webcam; Built-in
      - Without Webcam installed
      HDMI Port(s)
      - HDMI 2.0 Output Port
      Standard Battery (internal)
      - 8-cells Lithium-lon Battery; Easy to change
      Choose Extra Battery
      - None - Choose from the options below
      - 8-cells Lithium-lon Battery; Easy to change
      Standard AC Adapter
      - 330W AC Adapter; Auto-switching; 100-240V; 50-60Hz; DC 19.5V @ 16.9A
      - 660W (2x 330W) AC Adapter; Auto-switching;100-240V w/Converter Box (for Maximum XTU/OC/SLI Performance)
      - 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; with DC cable
      Standard Power Cord - included
      - USA / Canada
      - EUROPE
      - UK
      - SOUTH AFRICA
      - AUSTRALIA
      Extra Power Cord
      - None - Choose from the options below
      - 1 Extra; USA/CANADA
      - 2 Extra; US/CANADA
      - 1 Extra; UK
      - 1 Extra; EUROPE
      - 1 Extra; SOUTH AFRICA
      - 1 Extra; AUSTRALIA
      - 2 Extra; AUSTRALIA
      - 2 Extra; SOUTH AFRICA
      - 2 Extra, EUROPE
      - 2 Extra; UK
      Choose Extra AC Adapter
      - None - Choose from the options below
      - 330W AC Adapter; 100-240V; w/ 4pin round plug
      - 2 extra 330W AC Adapters; Auto-switching; 100-250V
      - 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; w/ DC cable
      Carrying Case
      - None - Choose from the options below
      - 17.3-inch Sport Backpack; Black; Targus Voyager TSB953GL
      - 17-inch Rolling Travel Case; Black Nylon; Exterior 457x381x254mm / 18.28x15.24x10.16inch; Targus TCG717
      - Targus Clamshell Classic Plus; Black Nylon; up 18-inch laptop; CN418GL
      Choose Your Warranty Plan
      - 1 Year Return to Factory Depot with 1 Year of Tech Support
      - 2 Years Return to Factory Depot with 2 Years of Tech Support
      - 3 Years Return to Factory Depot with 3 Years of Tech Support

    Options
      Extra Thermal Pads for M.2; VRAM; RAM
      - None - Choose from the options below:
      - Set of M.2 SSD Thermal pads 15x15x2mm
      Graphics Tablet / Stylus
      - None, Choose from the options below
      - Wacom Intuos Pro;Small; 10.6x6.7in (active 6.3x3.9in); Pen Tablet; PTH460K0A
      - Wacom Intuos Pro - Medium; 13.2x8.5in (active 8.7x5.8in); Pen Tablet; PTH660
      - Wacom Intuos Pro - Large; 16.8x11.2in (active 12.1x8.4in); Pen Tablet; PTH860

    Accessories
      Docking Stations, Hubs and Port Replicators
      - None - Choose from the options below
      - USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz
      - Universal USB-C DV4K Docking Station; w/ 65W AC Adapter; Black; Targus DOCK310USZ
      Car Adapters and Inverters
      - None - Choose from the options below
      - 700W Portable Power Inverter; 3 AC Outlets (US); Tripplite; 12V AC/60Hz; 12V DC, 1.26kg; 70x207.5x126mm
      - 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs
      Cables, Converters and Adapters
      - None - Choose from the options below:
      - 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS
      - 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10
      DisplayPort Adapters, Cables and Converters
      - None - choose from the options below:
      - MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID
      - HDMI or DVI to DP Active Converter (converts HDMI, DVI or Mini DVI input into a DP output); HDMI2DP
      - 10ft (3m) MiniDP to DP Cable; M/M; MDP2DPMM10
      - 6-inch MiniDP to DP cable; M/F; MDP2DPMF6IN
      Security Cables and Security Devices
      - None - Choose from the options below
      - Targus - Defcon CL Cable PA410C
      - Targus Defcon 1 Alarm Device PPA400C
