How do I change the Boot sequence in my BIOS on my Eurocom Z7 R2 Laptop Jun 28, 2023
In order to change your boot order in the BIOS you enter the BIOS upon startup by selecting F2 over and over. Once in the BIOS go to the Boot Manager and you will see a list of all the bootable Hard drives in your Laptop.
Simply choose the Hard Drive you wish to Boot from and then Save and Exit your BIOS. Upon the next startup your computer will boot from the chose Drive.
If you Hard drive does not appear in the Boot manager, then the computer does not see that hard drive as a Bootable drive.
|
How do I manually adjust the Fan speeds on my Eurocom Z7 R2 Laptop Jun 28, 2023
By Default, the fans in your Eurocom Z7 R2 are set to Automatic. This means the fans will speed up when necessary to keep your laptop running cool.
If at any time you want to manually adjust your fan speeds, go to the bottom right hand corner of the screen near the time under the hidden Icons and open the Control Center software. In the Control center you can adjust the fan speeds to your desired speeds.
If you temporarily want to put the fan speeds to full, you can also select Fn-1. You can toggle the fan speed back to your standard setup by selecting Fn-1 again.
|
How do I upgrade RAM, SSD's, Wireless card...Change Keyboard, Battery or heatsinks? Sky Z7R2 Mar 13, 2024 PDF Document
If you want to remove or add any components to your Eurocom Sky Z7 R2 laptop, here is a disassembly manual to help..
Remove or Add RAM, SSD drives or Wireless card, Processor and Video card Swap Keyboard, battery or Heatsinks
|

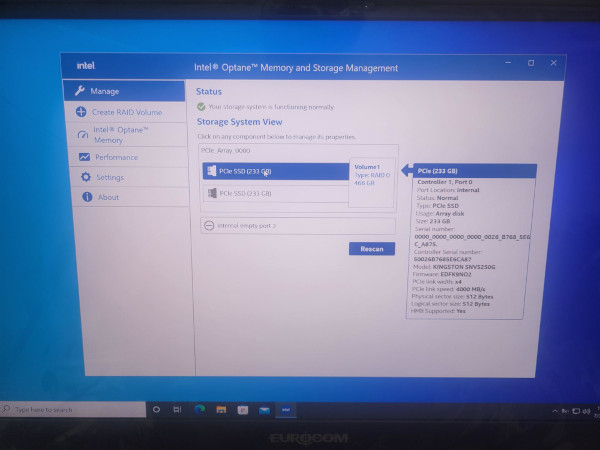

Intel Rapid Storage Technology app has been replaced... Jul 30, 2024
For many years we have been using Intel Rapid Storage Technology to configure and make changes to our Storage Drives and RAID setups. Since the introduction of the Intel Z590 Chipset this software has been replaced by Intel Optane Memory and Storage Management software.
If your Chipset is Intel Z590 or newer and you are trying to manage your SSD`s, Hard drives or your RAID setup using Intel Rapid Storage Technology but are missing features, download Intel Optane Memory and Storage Management from the provided Software Thumb drive provided with your laptop and install it. If you cannot find the provided Thumb drive you can also download the software from the App Store.
|
Just Upgraded to 128GB in Z7 R2 and now laptop won't boot. Sep 22, 2021
You just upgraded your RAM to the maximum capacity of 128GB in your Eurocom Sky Z7 R2 but now your notebook will not boot. It starts but just runs and runs and never boots up.
This has been identified an a re-occurring problem when upgrading your notebook to 4 x 32GB stick of RAM
The way to fix this issue is to add your RAM one stick at a time. If you doing a major upgrade in RAM sometimes the system resources are overwhelmed by the large change. Simply put on stick of 32GB of RAM in your notebook and start your notebook. Then shut off your notebook and add a second stick and re-start. Then do the same with the 3rd and 4th.
This will allow your system to use the systems resources to identify and use the large 32GB sticks of RAM.
|
Sky Z7 R2: How to setup RAID? Jun 15, 2023
1/ Go to BIOS, select “Setup Utility”, choose ADVANCED, then go into the “Intel Rapid Storage Technology” menu and select what type of RAID (0/1/5) you would like and which drives you would like to run in RAID setup.
2/ Once that is done, when installing Windows, the system would require to load additional drivers to initialize the drive(s). Drivers are located on the provided USB key in subdirectory of “ X170KM-G DRIVER 1.07.04\OPTIONS\RAID\F6FLPY-X64\" Once those drivers are loaded, you should be able to see the RAID when installing Windows O/S
3/ Please also note that if the system is set in RAID mode and you decide to switch to NONE RAID mode then everything on the drive becomes unusable. That is why you have to make the decision what RAID setup you want before installing Operating System / Windows.
|
Sky Z7 R2: Running RAID 0/1/5 with PCIe 3.0 NVMe SSDs Sep 22, 2021
Sky Z7 R2 has four M.2 slots for storage. Three of the M.2 slots are NVMe PCIe 3.0 and one M.2 is NVMe PCIe 4.0. The PCIe 4.0 slot can utilize the faster PCIe Gen4 SSDs.
This single PCIe PCIe 4.0 SSD cannot be included in any type of RAID setup on your Laptop. Only the 3 NVMe PCIe 3.0 drive can be used in RAID 0/1/5 RAID.
The reason for this is that the technology used in the PCIe 4.0 slot is not compatible with the PCIe 3.0 based SSDs to be together in a RAID array.
|
|
