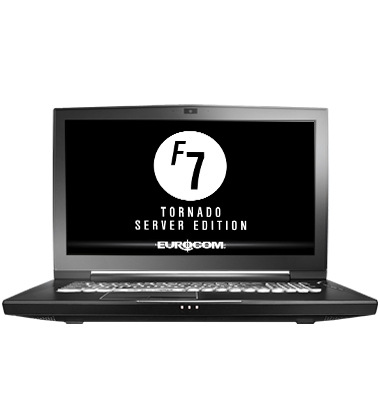

17.3-inch; FHD 120Hz (1920x1080) or 4K UHD 60Hz (3840x2160) Launching Eurocom Tornado F7 Server Edition, heavy-duty Intel XEON based laptop with an all-in-one design with integrated display, keyboard and built-in UPS/battery pack, ensuring you have dedicated Server on the Go capability anytime, anywhere. EUROCOM Tornado F7 Server supports up to 28TB of storage with five physical drives in RAID 0/1/5/10 and up to 128GB of memory. Weight/Dimensions: 4.14kg (9.1lbs); 428x314x24-51mm (17.12x12.56x0.96-2.04-inch) Operating Systems: Microsoft Server 2016; Linux/Ubuntu; VMware VSphere 6.7 U2 Core Logic: Intel C246 Chipset Processor: Intel XEON E series and/or i9-9900K; LGA1151; up to 8C/16T Memory: up to 128GB; DDR4 ECC (with Xeon) or non-ECC (with i7/i9); 4x SODIMM sockets Storage: up to 40TB of storage with five physical drives 3x M.2 NVMe PCIe x4 + 2x 2.5" SATA3) Redundancy and Performance: RAID 0/1/5/10 with 5 drives; RAID 0/1/5 with NVMe SSDs Network: 1GbE; RJ-45 LAN on-board; VPro; Intel I219-LM chipset I/O Ports: 1x Thunderbolt 3.0; 5x USB 3.1; miniDP; HDMI 2.0; Mic in; Headphone S/PDIF out; Line-in; Line out; RJ-45 / LAN Security: Smartcard Reader, TPM 2.0; Fingerprint; BIOS Disk Encryption; Kensington Lock; HDD BIOS Password; optional "anti hacking" with webcam, mic and WLAN removed. Heavy Duty Mechanical Design: Aluminium Alloy (Back Cover and Top Case) and German manufactured resins (Front Cover and Bottom Case)

Configure

Specs

Images

Brochure

Components

Upgrade

Drivers

Base Configuration   Choose your LCD Display   Choose from the options below 17.3-inch (43.9cm); 120Hz FHD 1920x1080; Matte; 94% NTSC; TN; 3ms; eDP; 40pin; N173HHE-G32 [$356] 17.3-inch (43.9cm); 60Hz; UHD; 3840x2160; Matte; Adobe 100% sRGB; eDP [$559]   Processor / CPU   Choose from the options below Xeon E-2176G; 6C/12T; 12MB L3; 3.7GHz (up to 4.7GHz); LGA1151; 14nm; 80W [$639] Xeon E-2186G; 6C/12T; 12MB L3; 3.8GHz (up to 4.7GHz); LGA1151; 14nm; 95W [$799] Xeon E-2288G; 8C/16T; 16MB L3; 3.7GHz (up to 5.0GHz); LGA1151; 14nm; 95W [$1039] 3.6GHz (up to 5.0GHz) Intel Core i9-9900K/9900KF; 8C/16T; 16MB L3; 14nm; LGA1151; 95W [$879] 3.6GHz (up to 4.9GHz) Intel Core i7-9700K; 8C/8T; 12MB L3; 14nm; Coffee Lake; LGA1151; 95W [$719] 3.1GHz (up to 5GHz) Intel Core i9-9900; 8C/16T; 16MB Smart Cache; 14nm; LGA1151; 65W [$879] 2.0GHz (up to 4.3GHz) Intel Core i7-9700T; 8C/8T; 12MB L3; 14nm; LGA1151; 35W [$639] 2.1GHz (up to 4.4GHz) Intel Core i9-9900T; 8C/16T; 16MB L3; 14nm; LGA1151; 35W; [$959]   Memory Configuration   Choose from the options below 32GB; 2x 16GB; DDR4-2133; ECC; 260-pin; Kingston; 1.2V; 2 SODIMMs [$576] 64GB; 4x 16GB; DDR4-2133; ECC; 260-pin; Kingston; 1.2V; 4 SODIMMs [$1152] 64GB; 2x 32GB; DDR4-2666; 260-pin; 1.2V; 2 SODIMMs; Micron/Crucial/Samsung [$1152] 64GB; 2x 32GB; ECC; DDR4-2666; 260-pin; 1.2V; 2 SODIMMs [$1152] 64GB; 2x 32GB; DDR4-3200; Micron; 260-pin; 1.2V; 2 SODIMMs [$1152] 128GB; 4x 32GB; DDR4-2666; Samsung; 260-pin; 1.2V; 4 SODIMMs [$2304] 128GB; 4x 32GB; ECC; DDR4-2666; 260-pin; 1.2V; 4 SODIMMs [$2304] 128GB; 4x 32GB; DDR4-3200; Micron; 260-pin; 1.2V; 4 SODIMMs [$2304]   BIOS: Standard or Unlocked   Choose from the options below UNLOCKED BIOS [$143]   eXpansion Modules for 2-3 External Monitors   Choose from the options below Matrox TripleHead2Go DisplayPort Edition; w/ 3 DP-out ports; up to 3 external displays; 5760x1080 (3x 1920x1080) or 3840x1200 (2x 1920x1200) [$399]   GPU Technology   Choose from the options below   VGA / GPU Graphics Options   Choose from the options below NVIDIA GeForce GTX 1060; 6GB DDR5; 1280 CUDA; N17E-G1; MXM 3.1b; 82x105mm; 75W [$499] Quadro P3200; 6GB GDDR5; N18E-Q1; 1792 CUDA; MXM 3.1; 75W [$1196] Quadro P4200; 8GB GDDR5; N18E-Q3; 2304 CUDA; MXM 3.1; 115W [$1718] Quadro P5200; 16GB GDDR5; N18E-Q5; 2560 CUDA; MXM 3.1; 160W [$2399]   Thermal Paste: GPU Heatsink   Choose from the options below Grizzly Kryonaut; Ultra High Performance Thermal Grease [$79]   Thermal Paste; CPU Heatsink   Choose from the options below Grizzly Kryonaut; Ultra High Performance Thermal Grease [$79]   Operating System(s)   Choose from the options below Microsoft Windows 10 Home; 64-bit; OEM; USB key [$159] Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key [$299] Microsoft Windows Server 2022 x64 Standard; OEM; w/ 1 CTL User CAL [$1359] Microsoft Windows Server 2022 x64 Standard; OEM; w/ 5 CTL User CALs [$1759] Microsoft Windows Server 2016 Standard; OEM Edition; w/ 1 CTL User CAL [$879] Microsoft Windows Server 2016 Standard; OEM Edition; w/ 5 CTL User CAL [$1199] Microsoft Server 2016 Datacenter; OEM Edition; w/ 5 User CAL [$5596] Microsoft Server 2016 Datacenter; OEM Edition; w/ 25 User CAL [$6796]   Keyboard (Language)   Choose from the options below US English; QWERTY; Backlit [$135] Français / French; AZERTY; Backlit [$135] Alemán / German; QWERTZ; Backlit [$135] Español / Spanish; QWERTY; Backlit [$135] Nordic; QWERTY; Backlit [$135] UK English; QWERTY; Backlit [$135]   Business Productivity Software   Choose from the options below Microsoft Office 2024 Home and Student Edition; OEM; MLK; US/Canada [$143] Microsoft Office 2024 Home and Business Edition; OEM; MLK; US/Canada [$279]   RAID Configuration   Choose from the options below RAID 0 - for maximum performance; at least 2 physical drives are required [$76] RAID 1 - for redundancy; at least 2x physical drives are required [$76] RAID 5 - at least 3 physical drives are required [$76]   Internal PCIe NVMe M.2 SSD   Choose from the options below 500GB; M.2 SAMSUNG 980 Pro; SSD; PCIe 4.0; NVMe; R/W: up to 7000/5100MB/s [$399] 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [$319] 1TB; SSD; PCIe 4.0 x4 / 5.0 x2 NVMe; M.2; R/W: up to 5000/4200 MB/s; SAMSUNG 990 EVO [$719] 1TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W up to 7,450/6,900 MB/s [$879] 2TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [$999] 2TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W: up to 7000/5100 MB/s [$999] 4TB SSD; PCIe Gen 4.0 x4, NVMe 2.0; M.2; 22x80mm; Samsung 990 Pro; AES 256-bit Encryption [$1299] 8TB; M.2 NVMe SSD; 22x80mm; Sabrent Rocket Q; 5.7g/2.4oz [$1999]   Internal PCIe NVMe M.2 SSD   Choose from the options below 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [$135] 500GB; M.2 SAMSUNG 980 Pro; SSD; NVMe; R/W: up to 7000/5100MB/s [$399] 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [$319] 1TB SSD; PCIe Gen 4.0 x4, NVMe 2.0 ; M.2 2280; R/W: up to 5000/4200 MB/s; SAMSUNG 990 EVO [$719] 1TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W up to 7,450/6,900 MB/s [$879] 2TB; M.2 SAMSUNG 970 Evo; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2500 MB/s [$999] 2TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W: up to 7000/5100 MB/s [$999] 4TB SSD; PCIe Gen 4.0 x4, NVMe 2.0; M.2; 22x80mm; Samsung 990 Pro; w/ AES 256-bit Encryption [$1299] 8TB; M.2 NVMe SSD; 22x80mm; Sabrent Rocket Q; 5.7g/2.4oz [$1999]   Internal PCIe NVMe M.2 SSD   Choose from the options below 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [$319] 500GB; M.2 SAMSUNG 980 Pro; SSD; NVMe; R/W: up to 7000/5100MB/s [$399] 1TB; SSD; PCIe 4.0 x4 / 5.0 x2 NVMe; M.2; R/W: up to 5000/4200 MB/s; SAMSUNG 990 EVO [$719] 1TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W up to 7,450/6,900 MB/s [$879] 2TB; M.2 SAMSUNG 970 Evo; NVMe; SSD; R/W: 3500/2500 MB/s [$999] 2TB SSD NVMe; PCIe 5.0; M.2 2280; CORSAIR MP700 PRO; R/W: up to 12400/11800 MB/s [$999] 4TB SSD; PCIe Gen 4.0 x4, NVMe 2.0; M.2; 22x80mm; Samsung 990 Pro w/ AES 256-bit Encryption [$1299] 8TB; M.2 NVMe SSD; 22x80mm; Sabrent Rocket Q; 5.7g/2.4oz [$1999]   RAID Options: HDD/SSD Storage   Choose from the options below RAID 0 setup - for maximum performance; minimum 2 physical drives are required [$60] RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required [$60] RAID 5 setup; 3 physical drives are required [$60] RAID 10 setup; 4 physical drives are required [$60]   1st Drive: HDD, SSD or SSHD   Choose from the options below 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in [$180] 1TB; HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in [$180] 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm [$316] 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm [$212] 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W 560/530 MB/s [$276] 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm [$436] 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s [$479] 1TB SSD; SATA3; Micron 1100; 7mm; 2.5in [$559] 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; MZ-77E1T0B/AM [$559] 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [$719] 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [$1279] 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [$959] 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [$1759] 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm [$3999] *** Without Hard Drive; with HDD bracket included *** [$126]   2nd Drive: HDD, SSD or SSHD   Choose from the options below 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [$719] 1TB HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in [$180] 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [$559] 1TB SSD; MLC; Micron 1100 TLC 3D NAND; SATA3 6Gb/s; 7mm; 2.5-inch [$559] 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in [$180] 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [$1279] 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm [$316] 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [$959] 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [$1759] 8TB SSD; Micron 5100 Enterprise; SATA3 6Gb/s; R/W (MB/s): 540 / 520; 2.5inch; 7mm [$3999]   External Optical Drive   Choose from the options below External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0 [$319] 24x DVD-RW; External; USB 2.0 [$119]   Internal Card Reader   Choose from the options below   Security: Biometric Device   Choose from the options below Built-in Fingerprint Reader [$39]   Embedded Security Chip   Choose from the options below Embedded TPM 2.0 Security Chip for Data Encryption [$120]   Security Cables / Devices:   Choose from the options below Targus - Defcon CL Cable PA410C [$39] Targus Defcon 1 Alarm Device PPA400C [$39]   Built-in Smart Card Reader   Choose from the options below   Wireless LAN   Choose from the options below 2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8265; M.2 2230; up to 867Mbps; 2.4GHz/5GHz [$79] 2-in-1: 802.11ac WLAN+Bluetooth 5; Intel Wireless-AC 9260; M.2 2230; up to 1.73Gbps [$111] 2-in-1; 802.11a/b/g/n/ac WLAN + Bluetooth 4.1; Killer Wireless-AC 1535 [$79] 2-in-1; Intel AX200; WiFi 6 802.11ax + BT 5.2; up to 2.4Gbps; WLAN Module; M.2 2230; Wi-Fi(PCIe), BT(USB) [$63]   TV Tuner (Internal and/or External)   Choose from the options below External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE [$79]   Built-in Web Camera   Choose from the options below 2.0 Megapixels; Webcam; Built-in [$55]   Thunderbolt Port   Choose from the options below   Standard Battery (internal)   Choose from the options below 8-cells Lithium-lon Battery; Easy to change [$143]   Choose Extra Battery   Choose from the options below 8-cells Lithium-lon Battery; Easy to change [$143]   Standard Power Cord - included   Choose from the options below USA / Canada [$7] EUROPE [$7] UK [$7] SOUTH AFRICA [$7] AUSTRALIA [$7]   Standard AC Adapter   Choose from the options below 280W AC Adapter; Auto switching;100-240V; Round Plug; 2.2lbs/1kg; 7.25x3.25x1.5in/185x80x35mm [$159] 330W AC Adapter; Auto-switching; 100-240V; 50-60Hz; DC 19.5V @ 16.9A [$180] 780W AC Adapter; 110V-250V Auto Switching; 3lbs/1.3kg; 12.8x4.3x1.6in/325x110x40mm; with DC cable [$448]   Extra Power Cord   Choose from the options below 1 Extra; USA/CANADA [$7] 2 Extra; US/CANADA [$14] 1 Extra; UK [$7] 1 Extra; EUROPE [$7] 1 Extra; SOUTH AFRICA [$7] 1 Extra; AUSTRALIA [$7] 2 Extra; AUSTRALIA [$14] 2 Extra; SOUTH AFRICA [$14] 2 Extra, EUROPE [$14] 2 Extra; UK [$14]   Choose Extra AC Adapter   Choose from the options below 280W AC Adapter; Auto switching;100-240V; Round Plug; 2.2lbs/1kg; 7.25x3.25x1.5in/185x80x35mm [$159] 330W AC Adapter; 100-240V; w/ 4pin round plug [$180] 2 extra 330W AC Adapters; Auto-switching; 100-250V [$360] 780W AC Adapter; 110V-250V Auto Switching; 3lbs/1.3kg; 12.8x4.3x1.6in/325x110x40mm; w/ DC cable [$448]   Carrying Case   Choose from the options below 16in Sport Backpack; Heavy-Duty Fabrics with Nylon Webbing Reinforcement; TARGUS TCG650 [$95] 18.4in EVERKI ContemPRO; XXL Backpack; EKP117B; 530x420x220mm [$239] 17.3in Sport Backpack; Black; Targus Voyager TSB953GL [$135] 18in (43.1-45.7cm); Black; Clamshell; Targus CNXL18 Laptop Pro Case [$151] 17in Rolling Travel Case; Black Nylon; Exterior 457x381x254mm / 18.28x15.24x10.16in; Targus TCG717 [$103]   Choose Your Warranty Plan   Choose from the options below 2 Years Return to Factory Depot with 2 Years of Tech Support [$220] 3 Years Return to Factory Depot with 3 Years of Tech Support [$335] Options   Extra Thermal Pads for M.2; VRAM; RAM   Choose from the options below Set of M.2 SSD Thermal pads 45x19x8mm for Tornado F5/F7 [$28]   Graphics Tablet / Stylus   Choose from the options below Wacom Intuos Pro;Small; 10.6x6.7in (active 6.3x3.9in); Pen Tablet; PTH460K0A [$319] Wacom Intuos Pro - Medium; 13.2x8.5in (active 8.7x5.8in); Pen Tablet; PTH660 [$399] Wacom Intuos Pro - Large; 16.8x11.2in (active 12.1x8.4in); Pen Tablet; PTH860 [$559] Accessories   Docking Stations, Hubs and Port Replicators   Choose from the options below USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz [$63] Universal USB-C DV4K Docking Station; w/ 65W AC Adapter; Black; Targus DOCK310USZ [$319]   Car Adapters and Inverters   Choose from the options below 700W Portable Power Inverter; 3 AC Outlets (US); Tripplite; 12V AC/60Hz; 12V DC, 1.26kg; 70x207.5x126mm [$143] 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs [$95]   Cables, Converters and Adapters   Choose from the options below 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS [$159] 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10 [$55]   Cables/Adapters for External Monitors; DP; mDP; HDMI; DVI   Choose from the options below MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID [$183] HDMI or DVI to DP Active Converter (converts HDMI, DVI or Mini DVI input into a DP output); HDMI2DP [$103] 10ft (3m) MiniDP to DP Cable; M/M; MDP2DPMM10 [$55] 6-inch MiniDP to DP cable; M/F; MDP2DPMF6IN [$39]
