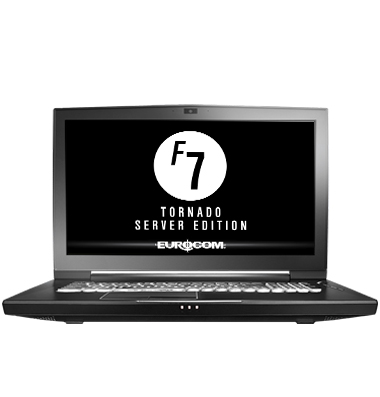

EUROCOM Tornado F7SE

ConfigureSpecsUpgradeComponentsImagesBrochureDrivers

17.3-inch; FHD 120Hz (1920x1080) or 4K UHD 60Hz (3840x2160)

Launching Eurocom Tornado F7 Server Edition, heavy-duty Intel XEON based laptop with an all-in-one design with integrated display, keyboard and built-in UPS/battery pack, ensuring you have dedicated Server on the Go capability anytime, anywhere. EUROCOM Tornado F7 Server supports up to 28TB of storage with five physical drives in RAID 0/1/5/10 and up to 128GB of memory.

  • Weight/Dimensions: 4.14kg (9.1lbs); 428x314x24-51mm (17.12x12.56x0.96-2.04-inch)
  • Operating Systems: Microsoft Server 2016; Linux/Ubuntu; VMware VSphere 6.7 U2
  • Core Logic: Intel C246 Chipset
  • Processor: Intel XEON E series and/or i9-9900K; LGA1151; up to 8C/16T
  • Memory: up to 128GB; DDR4 ECC (with Xeon) or non-ECC (with i7/i9); 4x SODIMM sockets
  • Storage: up to 40TB of storage with five physical drives 3x M.2 NVMe PCIe x4 + 2x 2.5" SATA3)
  • Redundancy and Performance: RAID 0/1/5/10 with 5 drives; RAID 0/1/5 with NVMe SSDs
  • Network: 1GbE; RJ-45 LAN on-board; VPro; Intel I219-LM chipset
  • I/O Ports: 1x Thunderbolt 3.0; 5x USB 3.1; miniDP; HDMI 2.0; Mic in; Headphone S/PDIF out; Line-in; Line out; RJ-45 / LAN
  • Security: Smartcard Reader, TPM 2.0; Fingerprint; BIOS Disk Encryption; Kensington Lock; HDD BIOS Password; optional "anti hacking" with webcam, mic and WLAN removed.
  • Heavy Duty Mechanical Design: Aluminium Alloy (Back Cover and Top Case) and German manufactured resins (Front Cover and Bottom Case)
    		•
    Base Configuration
      System and Display
      - Tornado F7 Server Edition
      Choose your LCD Display
      - 17.3-inch (43.9cm); 120Hz FHD 1920x1080; Matte; 94% NTSC; TN; 3ms; eDP; 40pin; N173HHE-G32
      - 17.3-inch (43.9cm); 60Hz; UHD; 3840x2160; Matte; Adobe 100% sRGB; eDP
      Processor / CPU
      - Xeon E-2176G; 6C/12T; 12MB L3; 3.7GHz (up to 4.7GHz); LGA1151; 14nm; 80W
      - Xeon E-2186G; 6C/12T; 12MB L3; 3.8GHz (up to 4.7GHz); LGA1151; 14nm; 95W
      - Xeon E-2288G; 8C/16T; 16MB L3; 3.7GHz (up to 5.0GHz); LGA1151; 14nm; 95W
      - 3.6GHz (up to 5.0GHz) Intel Core i9-9900K/9900KF; 8C/16T; 16MB L3; 14nm; LGA1151; 95W
      - 3.6GHz (up to 4.9GHz) Intel Core i7-9700K; 8C/8T; 12MB L3; 14nm; Coffee Lake; LGA1151; 95W
      - 3.1GHz (up to 5GHz) Intel Core i9-9900; 8C/16T; 16MB Smart Cache; 14nm; LGA1151; 65W
      - 2.0GHz (up to 4.3GHz) Intel Core i7-9700T; 8C/8T; 12MB L3; 14nm; LGA1151; 35W
      - 2.1GHz (up to 4.4GHz) Intel Core i9-9900T; 8C/16T; 16MB L3; 14nm; LGA1151; 35W;
      Memory Configuration
      - 32GB; 2x 16GB; DDR4-2133; ECC; 260-pin; Kingston; 1.2V; 2 SODIMMs
      - 64GB; 4x 16GB; DDR4-2133; ECC; 260-pin; Kingston; 1.2V; 4 SODIMMs
      - 64GB; 2x 32GB; DDR4-2666; 260-pin; 1.2V; 2 SODIMMs; Micron/Crucial/Samsung
      - 64GB; 2x 32GB; ECC; DDR4-2666; 260-pin; 1.2V; 2 SODIMMs
      - 64GB; 2x 32GB; DDR4-3200; Micron; 260-pin; 1.2V; 2 SODIMMs
      - 128GB; 4x 32GB; DDR4-2666; Samsung; 260-pin; 1.2V; 4 SODIMMs
      - 128GB; 4x 32GB; ECC; DDR4-2666; 260-pin; 1.2V; 4 SODIMMs
      - 128GB; 4x 32GB; DDR4-3200; Micron; 260-pin; 1.2V; 4 SODIMMs
      BIOS: Standard or Unlocked
      - Standard BIOS
      - UNLOCKED BIOS
      eXpansion Modules for 2-3 External Monitors
      - None - Choose from the options below
      - Matrox TripleHead2Go DisplayPort Edition; w/ 3 DP-out ports; up to 3 external displays; 5760x1080 (3x 1920x1080) or 3840x1200 (2x 1920x1200)
      GPU Technology
      - Single GPU support; Modular MXM3; Upgradeable
      VGA / GPU Graphics Options
      - NVIDIA GeForce GTX 1060; 6GB DDR5; 1280 CUDA; N17E-G1; MXM 3.1b; 82x105mm; 75W
      - Quadro P3200; 6GB GDDR5; N18E-Q1; 1792 CUDA; MXM 3.1; 75W
      - Quadro P4200; 8GB GDDR5; N18E-Q3; 2304 CUDA; MXM 3.1; 115W
      - Quadro P5200; 16GB GDDR5; N18E-Q5; 2560 CUDA; MXM 3.1; 160W
      Thermal Paste: GPU Heatsink
      - Grizzly Kryonaut; Ultra High Performance Thermal Grease
      Thermal Paste; CPU Heatsink
      - Grizzly Kryonaut; Ultra High Performance Thermal Grease
      Operating System(s)
      - None - Choose from the options below for Pre-install or install your own
      - Microsoft Windows 10 Home; 64-bit; OEM; USB key
      - Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key
      - Microsoft Windows Server 2022 x64 Standard; OEM; w/ 1 CTL User CAL
      - Microsoft Windows Server 2022 x64 Standard; OEM; w/ 5 CTL User CALs
      - Microsoft Windows Server 2016 Standard; OEM Edition; w/ 1 CTL User CAL
      - Microsoft Windows Server 2016 Standard; OEM Edition; w/ 5 CTL User CAL
      - Microsoft Server 2016 Datacenter; OEM Edition; w/ 5 User CAL
      - Microsoft Server 2016 Datacenter; OEM Edition; w/ 25 User CAL
      Business Productivity Software
      - None - Choose from the options below
      - Microsoft Office 2024 Home and Student Edition; OEM; MLK; US/Canada
      - Microsoft Office 2024 Home and Business Edition; OEM; MLK; US/Canada
      Keyboard (Language)
      - US English; QWERTY; Backlit
      - Français / French; AZERTY; Backlit
      - Alemán / German; QWERTZ; Backlit
      - Español / Spanish; QWERTY; Backlit
      - Nordic; QWERTY; Backlit
      - UK English; QWERTY; Backlit
      RAID Configuration
      - None - Choose from the options below:
      - RAID 0 - for maximum performance; at least 2 physical drives are required
      - RAID 1 - for redundancy; at least 2x physical drives are required
      - RAID 5 - at least 3 physical drives are required
      Internal PCIe NVMe M.2 SSD
      - Choose your SSD M.2 type 2280 (80x22nm) from the options below:
      - 500GB; M.2 SAMSUNG 980 Pro; SSD; PCIe 4.0; NVMe; R/W: up to 7000/5100MB/s
      - 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 1TB; SSD; PCIe 4.0 x4 / 5.0 x2 NVMe; M.2; R/W: up to 5000/4200 MB/s; SAMSUNG 990 EVO
      - 1TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W up to 7,450/6,900 MB/s
      - 2TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      - 2TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W: up to 7000/5100 MB/s
      - 4TB SSD; PCIe Gen 4.0 x4, NVMe 2.0; M.2; 22x80mm; Samsung 990 Pro; AES 256-bit Encryption
      - 8TB; NVMe PCIe 5.0; SSD; M.2; 22x80mm; Samsung 9100 Pro; R/W: 14,800 / 13,400 MB/s
      Internal PCIe NVMe M.2 SSD
      - Choose your SSD M.2 type 2280 (80x22mm) from the options below:
      - 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2 SAMSUNG 980 Pro; SSD; NVMe; R/W: up to 7000/5100MB/s
      - 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 1TB SSD; PCIe Gen 4.0 x4, NVMe 2.0 ; M.2 2280; R/W: up to 5000/4200 MB/s; SAMSUNG 990 EVO
      - 1TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W up to 7,450/6,900 MB/s
      - 2TB; M.2 SAMSUNG 970 Evo; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2500 MB/s
      - 2TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W: up to 7000/5100 MB/s
      - 4TB SSD; PCIe Gen 4.0 x4, NVMe 2.0; M.2; 22x80mm; Samsung 990 Pro; w/ AES 256-bit Encryption
      - 8TB; NVMe PCIe 5.0; SSD; M.2; 22x80mm; Samsung 9100 Pro; R/W: 14,800 / 13,400 MB/s
      Internal PCIe NVMe M.2 SSD
      - Choose your SSD M.2 type 2280 from the options below:
      - 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2 SAMSUNG 980 Pro; SSD; NVMe; R/W: up to 7000/5100MB/s
      - 1TB; SSD; PCIe 4.0 x4 / 5.0 x2 NVMe; M.2; R/W: up to 5000/4200 MB/s; SAMSUNG 990 EVO
      - 1TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W up to 7,450/6,900 MB/s
      - 2TB; M.2 SAMSUNG 970 Evo; NVMe; SSD; R/W: 3500/2500 MB/s
      - 2TB SSD NVMe; PCIe 5.0; M.2 2280; CORSAIR MP700 PRO; R/W: up to 12400/11800 MB/s
      - 4TB SSD; PCIe Gen 4.0 x4, NVMe 2.0; M.2; 22x80mm; Samsung 990 Pro w/ AES 256-bit Encryption
      - 8TB; NVMe PCIe 5.0; SSD; M.2; 22x80mm; Samsung 9100 Pro; R/W: 14,800 / 13,400 MB/s
      RAID Options: HDD/SSD Storage
      - None - Choose from the options below
      - RAID 0 setup - for maximum performance; minimum 2 physical drives are required
      - RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required
      - RAID 5 setup; 3 physical drives are required
      - RAID 10 setup; 4 physical drives are required
      1st Drive: HDD, SSD or SSHD
      - 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in
      - 1TB; HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in
      - 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm
      - 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm
      - 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W 560/530 MB/s
      - 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm
      - 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s
      - 1TB SSD; SATA3; Micron 1100; 7mm; 2.5in
      - 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; MZ-77E1T0B/AM
      - 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm
      - *** Without Hard Drive; with HDD bracket included ***
      2nd Drive: HDD, SSD or SSHD
      - Choose your 2nd HDD/SSD/SHHD from the options below:
      - 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 1TB HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in
      - 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 1TB SSD; MLC; Micron 1100 TLC 3D NAND; SATA3 6Gb/s; 7mm; 2.5-inch
      - 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in
      - 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm
      - 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 8TB SSD; Micron 5100 Enterprise; SATA3 6Gb/s; R/W (MB/s): 540 / 520; 2.5inch; 7mm
      External Optical Drive
      - None - Choose from the options below
      - External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0
      - 24x DVD-RW; External; USB 2.0
      Internal Card Reader
      - 6-in-1 Card Reader; MMC/RSMMC/SD/MiniSD/SDHC/SDXC; UHS-II interface
      Security: Biometric Device
      - Built-in Fingerprint Reader
      Embedded Security Chip
      - Embedded TPM 2.0 Security Chip for Data Encryption
      Security Cables / Devices:
      - None - Choose from the options below
      - Targus - Defcon CL Cable PA410C
      - Targus Defcon 1 Alarm Device PPA400C
      Built-in Smart Card Reader
      - Built-in Smart Card Reader
      Wireless LAN
      - 2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8265; M.2 2230; up to 867Mbps; 2.4GHz/5GHz
      - 2-in-1: 802.11ac WLAN+Bluetooth 5; Intel Wireless-AC 9260; M.2 2230; up to 1.73Gbps
      - 2-in-1; 802.11a/b/g/n/ac WLAN + Bluetooth 4.1; Killer Wireless-AC 1535
      - 2-in-1; Intel AX200; WiFi 6 802.11ax + BT 5.2; up to 2.4Gbps; WLAN Module; M.2 2230; Wi-Fi(PCIe), BT(USB)
      TV Tuner (Internal and/or External)
      - None - Choose from the options below
      - External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE
      Built-in Web Camera
      - 2.0 Megapixels; Webcam; Built-in
      Thunderbolt Port
      - 1x Thunderbolt 3 (via USB 3.1 type C)
      Standard Battery (internal)
      - 8-cells Lithium-lon Battery; Easy to change
      Choose Extra Battery
      - None - Choose from the options below
      - 8-cells Lithium-lon Battery; Easy to change
      Standard Power Cord - included
      - USA / Canada
      - EUROPE
      - UK
      - SOUTH AFRICA
      - AUSTRALIA
      Standard AC Adapter
      - 280W AC Adapter; Auto switching;100-240V; Round Plug; 2.2lbs/1kg; 7.25x3.25x1.5in/185x80x35mm
      - 330W AC Adapter; Auto-switching; 100-240V; 50-60Hz; DC 19.5V @ 16.9A
      - 780W AC Adapter; 110V-250V Auto Switching; 3lbs/1.3kg; 12.8x4.3x1.6in/325x110x40mm; with DC cable
      Extra Power Cord
      - None - Choose from the options below
      - 1 Extra; USA/CANADA
      - 2 Extra; US/CANADA
      - 1 Extra; UK
      - 1 Extra; EUROPE
      - 1 Extra; SOUTH AFRICA
      - 1 Extra; AUSTRALIA
      - 2 Extra; AUSTRALIA
      - 2 Extra; SOUTH AFRICA
      - 2 Extra, EUROPE
      - 2 Extra; UK
      Choose Extra AC Adapter
      - None - Choose from the options below
      - 280W AC Adapter; Auto switching;100-240V; Round Plug; 2.2lbs/1kg; 7.25x3.25x1.5in/185x80x35mm
      - 330W AC Adapter; 100-240V; w/ 4pin round plug
      - 2 extra 330W AC Adapters; Auto-switching; 100-250V
      - 780W AC Adapter; 110V-250V Auto Switching; 3lbs/1.3kg; 12.8x4.3x1.6in/325x110x40mm; w/ DC cable
      Carrying Case / Backpack
      - None - Choose from the options below
      - 16in Sport Backpack; Heavy-Duty Fabrics with Nylon Webbing Reinforcement; TARGUS TCG650
      - 18.4in EVERKI ContemPRO; XXL Backpack; EKP117B; 530x420x220mm
      - 17.3in Sport Backpack; Black; Targus Voyager TSB953GL
      - 18in (43.1-45.7cm); Black; Clamshell; Targus CNXL18 Laptop Pro Case
      - 17in Rolling Travel Case; Black Nylon; Exterior 457x381x254mm / 18.28x15.24x10.16in; Targus TCG717
      Choose Your Warranty Plan
      - 1 Year Return to Factory Depot with 1 Year of Tech Support
      - 2 Years Return to Factory Depot with 2 Years of Tech Support
      - 3 Years Return to Factory Depot with 3 Years of Tech Support

    Options
      Extra Thermal Pads for M.2; VRAM; RAM
      - None - Choose from the options below:
      - Set of M.2 SSD Thermal pads 45x19x8mm for Tornado F5/F7
      Graphics Tablet / Stylus
      - None, Choose from the options below
      - Wacom Intuos Pro;Small; 10.6x6.7in (active 6.3x3.9in); Pen Tablet; PTH460K0A
      - Wacom Intuos Pro - Medium; 13.2x8.5in (active 8.7x5.8in); Pen Tablet; PTH660
      - Wacom Intuos Pro - Large; 16.8x11.2in (active 12.1x8.4in); Pen Tablet; PTH860

    Accessories
      Docking Stations, Hubs and Port Replicators
      - None - Choose from the options below
      - USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz
      - Universal USB-C DV4K Docking Station; w/ 65W AC Adapter; Black; Targus DOCK310USZ
      Car Adapters and Inverters
      - None - Choose from the options below
      - 700W Portable Power Inverter; 3 AC Outlets (US); Tripplite; 12V AC/60Hz; 12V DC, 1.26kg; 70x207.5x126mm
      - 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs
      Cables, Converters and Adapters
      - None - Choose from the options below:
      - 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS
      - 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10
      Cables/Adapters for External Monitors; DP; mDP; HDMI; DVI
      - None - choose from the options below:
      - MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID
      - HDMI or DVI to DP Active Converter (converts HDMI, DVI or Mini DVI input into a DP output); HDMI2DP
      - 10ft (3m) MiniDP to DP Cable; M/M; MDP2DPMM10
      - 6-inch MiniDP to DP cable; M/F; MDP2DPMF6IN
