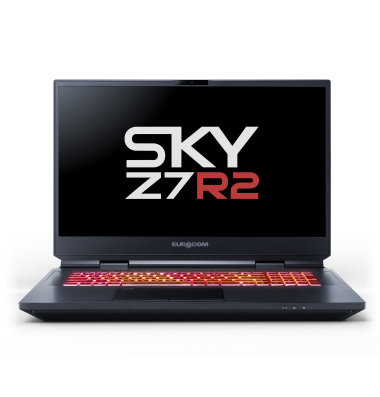

EUROCOM Sky Z7 R2 Server
Choice of 17.3in FHD @144Hz, QHD @165Hz or UHD @60Hz eDP LCD panels

EUROCOM Sky Z7 R2 Mobile Server is powered by Intel Z590 PCIe 4.0 chipset, LGA1200 socket 10 cores/ 20threads based CPUs and supports up to 128GB of DDR4-3600 memory. It comes with 4x M.2 NVMe physical slots for up to 32TB of SSD storage in RAID 0/1/5.

  • Chipset: Intel Z590 PCIe 4.0 architecture
  • Processor: socketed desktop LGA1200 CPU, up to Intel i9-10900K (10C/20T) / i9-11900K (8C/16T)
  • Memory: up to 128GB; DDR4 up to 3600; four 260-pin, 1.2V, SODIMM sockets
  • GPU Technology: NVIDIA GeForce RTX 3080, RTX 3070 and 3060; MXM 3.1 module
  • Storage: Up to 32TB SSD; four physical drives; three M.2 2280 NVMe PCIe 3.0 x4; one slot is PCIe 4.0
  • Communications: 2.5Gigabit LAN RJ-45 port Killer E3000; supports Killer DoubleShot Pro (w/ Killer WLAN)
  • Keyboard: RGB Keyboard with individual key illumination; N-Key Rollover & Anti-Ghosting; Microsoft Precision Touchpad with multi-gesture two buttons
  • Loaded with Security: TPM 2.0; Fingerprint scanner; Kensington lock
  • Audio System: S/PDIF Output (Optical); Creative Super X-Fi Ultra DSP chip; Creative Sound Blaster Atlas; ESS SABRE HiFi DAC for high resolution headphone output
  • Ports: 2x Thunderbolt 4.0; type C (requires PCIe 4.0 based CPU such as 11900K); 1x USB-C 3.2 Gen2;
    3 x USB-A 3.2 Gen2; 2x miniDP 1.4; 1x HDMI 2.0 output (with HDCP); 1x 2-in-1 Audio jack (Headphone/Microphone); 1x 2-in-1 Audio jack (Microphone/SPDIF Optical output); 1x RJ-45 LAN; 2x DC-in
  • Weight and Dimensions: Weight- 3.8 kg/8.36 lbs; Thickness- 1.76”/44 mm; WxDxH- 399mm x 319mm x 44mm/15.96” x 12.76” x 1.76”
  • CustomizeSpecificationsImagesBrochurePrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price List
    Launch Date:Dec 1, 2022
    Special Feature(s):Intel Z590 Chipset; PCIe 4.0 architecture; LGA1200 socket 10th and 11th gen CPUs; NVIDIA GeForce RTX 30x0 MXM 3.1 V2.0 GPUs PCIe 4.0
    Main Chipset:Intel Z590
    Processor:Socket LGA 1200
    up to i9-10900K (PCIe 3.0); 10cores/20threads
    up to i9-11900K (PCIe 4.0);8cores/16threads
    Video / GPU:- one MXM 3.1 REV 2.0 slot; PCIe 4.0
    - NVIDIA GeForce: RTX 3080 (16GB DDR6); RTX 3070 (8GB DDR6); RTX 3060 (6GB DDR6)
    Built-in PC Camera:Built-in 1M
    LCD Size:17.3in / 43.9cm
    LCD Specifications:17.3" FHD 144Hz, FHD 300Hz, QHD 165Hz; UHD 60Hz; eDP
    Memory:Four 260-pin, 1.2V, SODIMM sockets
    DDR4-2666/2933/3000/3200/3600; up to 128GB
    Total Storage:Four physical M.2 drives:
    - 3x M.2 2280 NVMe PCIe Gen3 x4
    - 1x M.2 2280 NVMe PCIe Gen4 x4
    Optical Drive:External USB based
    DVD-RW or Blu Ray Burner
    Card Reader:1x microSD Card Reader
    Audio Architecture:High Definition Audio
    S/PDIF Output (optical)
    Built in noise cancelling microphone
    Built in 2.1 Speaker System
    T1 Smart Amp
    Creative Super X-Fi Ultra DSP chip
    Creative Sound Blaster Atlas
    ESS SABRE HiFi DAC for high res headphone output
    LAN/WLAN/Bluetooth:- WLAN / Bluetooth; M.2 2230 slot
    - 2.5 Gigabit Ethernet RJ-45 LAN on-board; Killer E3000
    - supports Killer DoubleShot Pro (with Killer WLAN)
    Security:Kensington Lock
    Fingerprint
    TPM 2.0 on-board
    Internal cards / # of slots/Type:Five M.2 slots
    -1x: WLAN M.2 2230; PCIe x2
    -4x; M.2 NVMe SSD
    I/O Ports:2 x Thunderbolt 4.0; type C (requires PCIe 4.0 based CPU such as 11900K)
    1 x USB-C 3.2 Gen2
    3 x USB-A 3.2 Gen2
    2 x miniDP 1.4
    1 x HDMI 2.0 output (with HDCP)
    1 x 2-in-1 Audio jack (Headphone/Microphone)
    1 x 2-in-1 Audio jack (Microphone/SPDIF Optical output)
    1 x RJ-45 LAN
    2 x DC-in
    Internal Keyboard:- RGB Keyboard with individual key illumination
    N-Key-Rollover and Anti-Ghosting
    - Microsoft Precision Touchpad with multi-gesture two buttons
    AC Adapter:2x 280W; 100-240V 50-60Hz Auto-switching (worldwide)
    optional 780W for Extreme Performance
    Battery:8cells Smart Li-Ion; 97Wh
    Easy to change
    Weight:3.8kg / 8.36lbs
    Dimensions WxDxH:399x319x44mm / 15.96x12.76x1.76in
    Thickness:1.76in / 44mm
