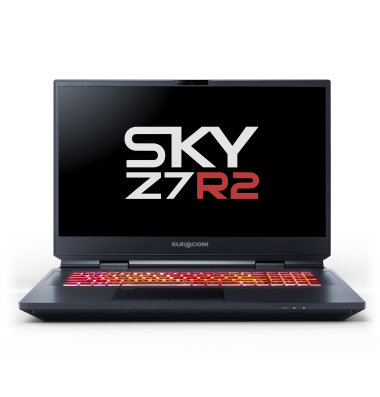

EUROCOM Sky Z7 R2 Server
Choice of 17.3in FHD @144Hz, QHD @165Hz or UHD @60Hz eDP LCD panels

EUROCOM Sky Z7 R2 Mobile Server is powered by Intel Z590 PCIe 4.0 chipset, LGA1200 socket 10 cores/ 20threads based CPUs and supports up to 128GB of DDR4-3600 memory. It comes with 4x M.2 NVMe physical slots for up to 32TB of SSD storage in RAID 0/1/5.

  • Chipset: Intel Z590 PCIe 4.0 architecture
  • Processor: socketed desktop LGA1200 CPU, up to Intel i9-10900K (10C/20T) / i9-11900K (8C/16T)
  • Memory: up to 128GB; DDR4 up to 3600; four 260-pin, 1.2V, SODIMM sockets
  • GPU Technology: NVIDIA GeForce RTX 3080, RTX 3070 and 3060; MXM 3.1 module
  • Storage: Up to 32TB SSD; four physical drives; three M.2 2280 NVMe PCIe 3.0 x4; one slot is PCIe 4.0
  • Communications: 2.5Gigabit LAN RJ-45 port Killer E3000; supports Killer DoubleShot Pro (w/ Killer WLAN)
  • Keyboard: RGB Keyboard with individual key illumination; N-Key Rollover & Anti-Ghosting; Microsoft Precision Touchpad with multi-gesture two buttons
  • Loaded with Security: TPM 2.0; Fingerprint scanner; Kensington lock
  • Audio System: S/PDIF Output (Optical); Creative Super X-Fi Ultra DSP chip; Creative Sound Blaster Atlas; ESS SABRE HiFi DAC for high resolution headphone output
  • Ports: 2x Thunderbolt 4.0; type C (requires PCIe 4.0 based CPU such as 11900K); 1x USB-C 3.2 Gen2;
    3 x USB-A 3.2 Gen2; 2x miniDP 1.4; 1x HDMI 2.0 output (with HDCP); 1x 2-in-1 Audio jack (Headphone/Microphone); 1x 2-in-1 Audio jack (Microphone/SPDIF Optical output); 1x RJ-45 LAN; 2x DC-in
  • Weight and Dimensions: Weight- 3.8 kg/8.36 lbs; Thickness- 1.76”/44 mm; WxDxH- 399mm x 319mm x 44mm/15.96” x 12.76” x 1.76”
  • CustomizeSpecificationsImagesBrochureBenchmarksPrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price List
    How do I change the Boot sequence in my BIOS on my Eurocom Z7 R2 Laptop
    Jun 28, 2023

    In order to change your boot order in the BIOS you enter the BIOS upon startup by selecting F2 over and over. Once in the BIOS go to the Boot Manager and you will see a list of all the bootable Hard drives in your Laptop.

    Simply choose the Hard Drive you wish to Boot from and then Save and Exit your BIOS. Upon the next startup your computer will boot from the chose Drive.

    If you Hard drive does not appear in the Boot manager, then the computer does not see that hard drive as a Bootable drive.

    How do I manually adjust the Fan speeds on my Eurocom Z7 R2 Laptop
    Jun 28, 2023

    By Default, the fans in your Eurocom Z7 R2 are set to Automatic. This means the fans will speed up when necessary to keep your laptop running cool.

    If at any time you want to manually adjust your fan speeds, go to the bottom right hand corner of the screen near the time under the hidden Icons and open the Control Center software. In the Control center you can adjust the fan speeds to your desired speeds.

    If you temporarily want to put the fan speeds to full, you can also select Fn-1. You can toggle the fan speed back to your standard setup by selecting Fn-1 again.

    How do I upgrade RAM, SSD's, Wireless card...Change Keyboard, Battery or heatsinks? Sky Z7R2
    Mar 13, 2024
    PDF Document

    If you want to remove or add any components to your Eurocom Sky Z7 R2 laptop, here is a disassembly manual to help..

    Remove or Add RAM, SSD drives or Wireless card, Processor and Video card
    Swap Keyboard, battery or Heatsinks

    Just Upgraded to 128GB in Z7 R2 and now laptop won't boot.
    Sep 22, 2021

    You just upgraded your RAM to the maximum capacity of 128GB in your Eurocom Sky Z7 R2 but now your notebook will not boot. It starts but just runs and runs and never boots up.

    This has been identified an a re-occurring problem when upgrading your notebook to 4 x 32GB stick of RAM

    The way to fix this issue is to add your RAM one stick at a time. If you doing a major upgrade in RAM sometimes the system resources are overwhelmed by the large change. Simply put on stick of 32GB of RAM in your notebook and start your notebook. Then shut off your notebook and add a second stick and re-start. Then do the same with the 3rd and 4th.

    This will allow your system to use the systems resources to identify and use the large 32GB sticks of RAM.

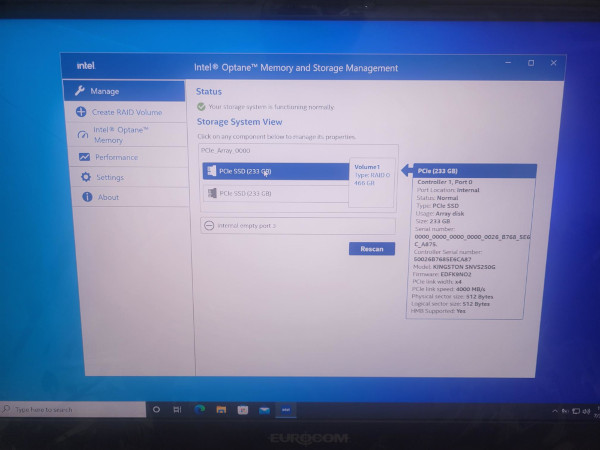

    Sky Z7 R2: Running RAID 0/1/5 with PCIe 3.0 NVMe SSDs
    Sep 22, 2021

    Sky Z7 R2 has four M.2 slots for storage. Three of the M.2 slots are NVMe PCIe 3.0 and one M.2 is NVMe PCIe 4.0. The PCIe 4.0 slot can utilize the faster PCIe Gen4 SSDs.

    This single PCIe PCIe 4.0 SSD cannot be included in any type of RAID setup on your Laptop. Only the 3 NVMe PCIe 3.0 drive can be used in RAID 0/1/5 RAID.

    The reason for this is that the technology used in the PCIe 4.0 slot is not compatible with the PCIe 3.0 based SSDs to be together in a RAID array.
