| Launch Date: | October 9, 2018 |

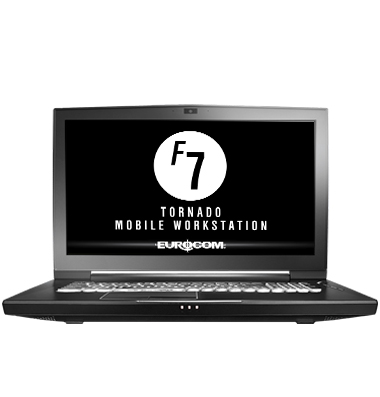

| Special Feature(s): | GPU and CPU Upgradeable Mobile Workstation based on C246 Chipset with Xeon and i7 support. |
| Main Chipset: | Intel C246 Chipset
|
| Processor: | LGA1151 socket
Xeon, i7 and i9 Processors
up up i7 8086K; 6C/12T
up to Xeon E-2186G; 6C/12T
up up i9 9900K; 8C/16T
up to i7 9700K; 8C/8T |
| Video / GPU: | Modular; MXM 3.1
NVIDIA Quadro P5200, P4200, P3200 |
| Built-in PC Camera: | Built-in 2M FHD |
| LCD Size: | 17.3in / 43.9cm |
| LCD Specifications: | FHD @120Hz or UHD (4K) @ 60Hz
up to 4 active displays; up 4K @ 60Hz |
| Memory: | Four 260-pin SODIMM sockets
DDR4-2133/2400/2666; up to 128GB
ECC support with Xeon
non-ECC support with i7 |
| Total Storage: | up to 5 physical drives:
- 3x M.2 2280 SSD PCIe 2x/4x (NVMe)
- 2x 2.5in 9.5mm/7mm HDD/SSD/SHDD; SATA3
- RAID 0/1/5 |
| Optical Drive: | External; USB based
|
| Card Reader: | 6-in-1 Push-Push Card Reader
Realtek RTS5169-VEC-GR
MMC/RSMMC SD/mini SD/SDHC/SDXC
UHS-II |
| Audio Architecture: | High Definition Audio; Realtek ALC1220-VB2-CG
S/PDIF Output
Built in mic
Built in two 2W speakers and subwoofer
Sound Blaster X-FI MB5
External 7.1CH output (headphone, mic, line-in and S/PDIF)
ANSP 3D Sound Technology (headphone output) |
| LAN/WLAN/Bluetooth: | - 1GbE LAN on-board; Intel I219-LM; vPRO
- WLAN / Bluetooth; PCIe; via M.2 slot
|
| Security: | Smartcard Reader (Realtek RTS5169-VEC-GR)
TPM 2.0 (Infineon SLB9665TT2.0)
Fingerprint (Synaptics TM-03368-001 Touchpad + F/P)
BIOS Disk Encryption
BIOS Disk Password
Kensington Lock
|
| Internal cards / # of slots/Type: | Four M.2 slots
-1st: WLAN M.2 2230 Card with PCIe x2 and USB
-2nd for SSD M.2 2280; SATA / PCIe x2/x4
-3rd for SSD M.2 2280; SATA / PCie x2/x4
-4th for SSD M.2 2280; SATA / PCie x2/x4 |
| I/O Ports: | 1 x Thunderbolt3 (USB 3.1 or DP 1.2 or HDMI 2.0); Intel Alpine Ridge JHL6340
5 x USB 3.1
1 x Mini Display Port 1.2
1 x HDMI 2.0
1 x Headphone out / SPDIF
1 x Microphone-in
1 x Line in
1 x Line out
1 x RJ-45 LAN
1 x DC-in |
| Internal Keyboard: | White backlit keyboard
TouchPad with multi-gesture and scrolling
SYNAPTICS TM-03368-001(Touchpad with Fingerprint) |
| AC Adapter: | 330W 100-240V 50-60Hz Auto-switching
780W optional
|
| Battery: | 8cells Smart Li-Ion; 6250mAh; 90Wh
|
| Weight: | 4.14kg (9.1lbs) |
| Dimensions WxDxH: | 428x314x24-51mm (17.12x12.56x0.96-2.04-inch)
|
| Thickness: | 096-2.04in / 24-51mm |
