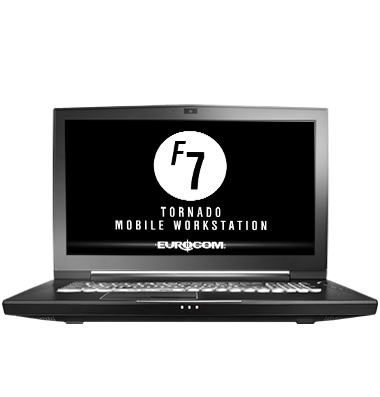

EUROCOM Tornado F7W
	17.3-inch; FHD 120Hz (1920x1080) or 4K UHD 60Hz (3840x2160) Launching Eurocom Tornado F7, heavy-duty GPU and CPU upgradeable,Intel Xeon laptop with an all-in-one design with integrated display, keyboard and built-in UPS/battery pack, ensuring you have dedicated on-the-go capability anytime, anywhere. EUROCOM Tornado F7 supports up to 22TB of storage with five physical drives in RAID 0/1/5 and up to 128GB of memory. Weight/Dimensions: 4.14kg (9.1lbs); 428x314x24-51mm (17.12x12.56x0.96-2.04-inch) Operating Systems: Microsoft: Server 2016R2, Windows 10; Linux/Ubuntu, VMware VSphere 6.7 U2 Core Logic: Intel C246 Chipset Processor: Intel XEON E series; and/or i9 9900K; LGA1151; up to 8C/16T GPU Technology: GPU-upgradeable; Modular MXM 3.1; Quadro: P5200, P4200 and P3200 Memory: up to 128GB; DDR4 ECC (with Xeon) or non-ECC (with i7/i9); 4x SODIMM sockets Storage: up to 28TB of storage with five physical drives 3x M.2 NVMe PCIe x4 + 2x 2.5" SATA3) Redundancy and Performance: RAID 0/1/5 Network: 1GbE; RJ-45 LAN on-board; VPro; Intel I219-LM chipset I/O Ports: 1x Thunderbolt 3.0; 5x USB 3.1; miniDP; HDMI 2.0; Mic in; Headphone S/PDIF out; Line-in; Line out; RJ-45 / LAN Security: Smartcard Reader, TPM 2.0; Fingerprint; BIOS Disk Encryption; Kensington Lock; HDD BIOS Password Mechanical Design Chassis: Aluminium Alloy (Back Cover and Top Case) and German manufactured resins (Front Cover and Bottom Case)

Currency:  CAD USD EUR GBP    Price:

Base Configuration   System and Display   EUROCOM Tornado F7W   Choose your LCD Display   17.3-inch (43.9cm); 120Hz FHD 1920x1080; Matte; 94% NTSC; TN; 3ms; eDP; 40pin; N173HHE-G32 17.3-inch (43.9cm); UHD; 4K; 60Hz; 3840x2160; Matte; Adobe 100% sRGB; eDP [add $170]   Security - ANTI SPYING Package   Choose: optional Factory ANTI SPYING package. Physical Removal of internal Webcam, Microphone and WLAN/Bluetooth Module [add $99] Physical Removal of internal Webcam and Microphone. [add $69]   Display Calibration   Optional - choose from the options below: Professional Display Calibration with .icc Profile Saved on USB Flash Key [add $74]   eXpansion Modules for 2-3 External Monitors   None - Choose from the options below Matrox TripleHead2Go DisplayPort Edition; w/ 3 DP-out ports; up to 3 external displays; 5760x1080 (3x 1920x1080) or 3840x1200 (2x 1920x1200) [add $274]   3D Devices for Precision Engineering   None, Choose from the options below: 3Dconnexion CadMouse for Precision Engineering [add $166] 3Dconnexion SpaceMouse Enterprise for Precision Engineering [add $583]   GPU Technology   Single GPU support; Modular MXM3; Upgradeable   VGA / GPU Graphics Options   Quadro P3200; 6GB GDDR5; N18E-Q1; 1792 CUDA; MXM 3.1; 75W Quadro P4200; 8GB GDDR5; N18E-Q3; 2304 CUDA; MXM 3.1; 115W [add $544] Quadro P5200; 16GB GDDR5; N18E-Q5; 2560 CUDA; MXM 3.1; 160W [add $1253] 8GB GDDR5; NVIDIA GeForce GTX 1070; 2048 CUDA; N17E-G2; MXM 3.1b; 82x105mm; 115W [sub $451] 6GB GDDR5; NVIDIA GeForce GTX 1060; 1280 CUDA; N17E-G1; MXM 3.1; 100x124mm; 75W [sub $600]   GPU Heatsink - Thermal Paste   IC Diamond 7 Carat Thermal Compound for Maximum Performance Grizzly Kryonaut; Ultra High Performance Thermal Grease [add $25]   BIOS: Standard or Unlocked   Standard BIOS UNLOCKED BIOS [add $125]   Processor / CPU   Xeon E-2176G; 6C/12T; 12MB L3; 3.7GHz (up to 4.7GHz); LGA1151; 14nm; 80W Xeon E-2186G; 6C/12T; 12MB L3; 3.8GHz (up to 4.7GHz); LGA1151; 14nm; 95W [add $167] Xeon E-2288G; 8C/16T; 16MB L3; 3.7GHz (up to 5.0GHz); LGA1151; 14nm; 95W [add $417] 3.2GHz (up to 4.6GHz) Intel Core i7-8700; 6C/12T; 12MB L3; 14nm; Coffee Lake; LGA1151; 65W [sub $128] 3.7GHz (up to 4.7GHz) Intel Core i7-8700K; 6C/12T; 12MB L3; 14nm; Coffee Lake; LGA1151; 95W [sub $25] 3.1GHz (up to 5GHz) Intel Core i9-9900; 8C/16T; 16MB Smart Cache; 14nm; LGA1151; 65W [add $250] 3.6GHz (up to 4.9GHz) Intel Core i7-9700KF; 8C/8T; 12MB L3; 14nm; Coffee Lake; LGA1151; 95W [add $83] 3.6GHz (up to 5.0GHz) Intel Core i9-9900KF; 8C/16T; 16MB L3; 14nm; LGA1151; 95W [add $250]   CPU Heatsink - Thermal Paste   IC Diamond 7 Carat Thermal Compound for Maximum Performance Grizzly Kryonaut; Ultra High Performance Thermal Grease [add $25]   Memory (RAM) Configuration   16GB; 1x 16GB; DDR4-2133; ECC; 260-pin; Kingston; 1.2V; 1 SODIMM 32GB; 2x 16GB; DDR4-2133; ECC; 260-pin; Kingston; 1.2V; 2 SODIMMs [add $300] 64GB; 4x 16GB; DDR4-2133; ECC; 260-pin; Kingston; 1.2V; 4 SODIMMs [add $900] 32GB; 2x 16GB; DDR4-2400; 260-pin; 1.2V; 2 SODIMMs; G-Skill F4-2400C16S-16GRS [add $367] 64GB; 4x 16GB; DDR4-2400; 260-pin; 1.2V; 4 SODIMMs; G-Skill F4-2400C16S-16GRS [add $867] 32GB; 2x 16GB; DDR4-3000; Corsair; CL16; 260-pin; 1.2V; 2 SODIMMs [add $400] 64GB; 4x 16GB; DDR4-3000; Corsair; CL16; 260-pin; 1.2V; 4 SODIMMs [add $1100] 64GB; 2x 32GB; DDR4-2666; Samsung; 260-pin; 1.2V; 2 SODIMMs [add $1017] 128GB; 4x 32GB; DDR4-2666; Samsung; 260-pin; 1.2V; 4 SODIMMs [add $2333]   Operating System(s)   None - Choose from the options below for Pre-install or install your own Microsoft Windows 10 Home; 64-bit; OEM; USB key [add $141] Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key [add $166] Microsoft Windows Server 2019 x64 Standard; OEM; w/ 1 CTL User CAL [add $1249] Microsoft Windows Server 2019 x64 Standard; OEM; w/ 5 CTL User CALs [add $1666] Microsoft Windows Server 2016 Standard; OEM Edition; w/ 1 CTL User CAL [add $916] Microsoft Windows Server 2016 Standard; OEM Edition; w/ 5 CTL User CAL [add $1249] Microsoft Server 2016 Datacenter; OEM Edition; w/ 5 User CAL [add $5829] Microsoft Server 2016 Datacenter; OEM Edition; w/ 25 User CAL [add $7079]   Keyboard (Language)   US English; QWERTY; Backlit Français / French; AZERTY; Backlit [add $83] Alemán / German; QWERTZ; Backlit [add $83] Español / Spanish; QWERTY; Backlit [add $83] Nordic; QWERTY; Backlit [add $83] UK English; QWERTY; Backlit [add $83]   Office/Business Productivity Software   None - Choose from the options below Microsoft Office 2019 Home and Student Edition; OEM; MLK; US/Canada version [add $133] Microsoft Office 2019 Home and Business Edition; OEM; MLK; US/Canada version [add $208]   RAID Options: M.2 PCIe/M.2 SATA/mSATA Storage   None - Choose from the options below: RAID 0 - for maximum performance; 2x M.2 PCIe x2 x4 or 2x M.2 SATA are required; NVMe SSD are RAIDable [add $75] RAID 1 - for redundancy; 2x M.2 PCIe x2 x4 or 2x M.2 SATA are required; NVMe SSD are RAIDable [add $75] RAID 5 - for maximum performance; 3x M.2 PCIe x2 x4 or 3x M.2 SATA are required; NVMe SSD are RAIDable [add $75]   Internal M.2 SSD Storage: NVMe or SATA   Choose your SSD M.2 type 2280 (80x22nm) from the options below: 32GB, Intel Optane Memory; R/W: 1350 / 290 MB/s; PCIe NVMe 3.0 x2 [add $129] 250GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $141] 250GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $249] 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $274] 500GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $333] 512GB; M.2 SAMSUNG 970 Pro; SSD; NVMe; R/W: 3500/2700 MB/s [add $666] 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $583] 1TB; M.2 SAMSUNG 970 Pro; SSD; NVMe; R/W: 3500/2700 MB/s [add $916] 1TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $749] 2TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $1249] 4TB; NVMe M.2; SSD; 22x80mm; R/W: 3000/1400 MB/s; 580K/650K IOPS; Sabrent Rocket [add $2083]   Internal M.2 SSD Storage: NVMe or SATA   Choose your SSD M.2 type 2280 (80x22mm) from the options below: 250GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $249] 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $274] 500GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $333] 512GB; M.2 SAMSUNG 970 Pro; SSD; NVMe; R/W: 3500/2700 MB/s [add $666] 1TB; M.2 SAMSUNG 970 Pro; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2700 MB/s [add $916] 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $583] 1TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $749] 2TB; M.2 SAMSUNG 970 Evo; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2500 MB/s [add $1249] 4TB; NVMe M.2; SSD; 22x80mm; R/W: 3000/1400 MB/s; 580K/650K IOPS; Sabrent Rocket [add $2083]   Internal M.2 SSD Storage; slot #3: NVMe or SATA   Choose your SSD M.2 type 2280 from the options below: 250GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $249] 500GB; M.2; SSD; SATA3; R/W: 560/510MB/s; MICRON / CRUCIAL MX500 [add $166] 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $274] 500GB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $333] 512GB; M.2 SAMSUNG 970 Pro; SSD; NVMe; R/W: 3500/2700 MB/s [add $666] 1TB; M.2 SAMSUNG 970 Pro; SSD NVMe; R/W: 3500/2700 MB/s [add $916] 1TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s [add $749] 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $583] 2TB; M.2 SAMSUNG 970 Evo; NVMe; SSD; R/W: 3500/2500 MB/s [add $1249] 4TB; NVMe M.2; SSD; 22x80mm; R/W: 3000/1400 MB/s; 580K/650K IOPS; Sabrent Rocket [add $2083]   RAID Options: HDD/SSD Storage   None - Choose from the options below RAID 0 setup - for maximum performance; minimum 2 physical drives are required [add $63] RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required [add $63] Multiple Partitions with Two O/S; please specify size of each partition; order 2nd O/S [add $63] Multiple Partitions with One O/S - please specify size of each partition [add $63]   1st Drive: HDD, SSD or SSHD   1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in 1TB; HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in 1.5TB; 5400rpm; SATA3; Hitachi Travelstar 5K1500; 9.5mm; 2.5in [add $17] 2TB; SSHD; SATA3; Seagate FireCuda ST2000LX001; 2.5in 7mm [add $142] 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm [add $33] 256GB SSD; MLC; Samsung 850 Pro; SATA3 6Gb/s; Read/Write (MB/s): 550/520; 7mm [add $100] 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm [add $267] 512GB SSD; Samsung 860 Pro; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $312] 1TB SSD; SATA3; Micron 1100; 7mm; 2.5in [add $395] 1TB SSD; Samsung 860 Evo; SATA3; 7mm; 2.5in; R/W: 550/520 MB/s [add $395] 1TB SSD; Samsung 860 Pro; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $562] 2TB SSD; Samsung 860 Pro; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $1145] 2TB SSD; Samsung 860 Evo; SATA3; 7mm; 2.5in; R/W: 550/520 MB/s [add $812] 4TB SSD; Samsung 860 Evo; SATA3; 7mm; 2.5in; R/W: 550/520 MB/s [add $1645] 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm [add $3978] *** Without Hard Drive; with HDD bracket included *** [sub $56]   2nd Drive: HDD, SSD or SSHD   Choose your 2nd HDD/SSD/SHHD from the options below: 1TB SSD; Samsung 860 Pro; SATA3; R/W: 560/530 MB/s; 7mm; 2.5in [add $749] 1TB HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in [add $188] 1TB SSD; Samsung 860 Evo; SATA3; 7mm; 2.5in; R/W: 550/520 MB/s [add $583] 1TB SSD; MLC; Micron 1100 TLC 3D NAND; SATA3 6Gb/s; 7mm; 2.5-inch [add $583] 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in [add $188] 1.5TB HDD; 5400rpm; Hitachi Travelstar 5K1500; 9.5mm; 2.5in [add $204] 2TB SSD; Samsung 860 Pro; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $1333] 2TB SSD; Samsung 860 Evo; SATA3; 7mm; 2.5in; R/W: 550/520 MB/s [add $999] 2TB; SSHD; SATA3; Seagate FireCuda ST2000LX001; 2.5in 7mm [add $329] 4TB SSD; Samsung 860 Evo; SATA3; 7mm; 2.5in; R/W: 550/520 MB/s [add $1833] 8TB SSD; Micron 5100 Enterprise; SATA3 6Gb/s; R/W (MB/s): 540 / 520; 2.5inch; 7mm [add $4166]   External Optical Drive   None - Choose from the options below External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0 [add $195] 24x DVD-RW; External; USB 2.0 [add $104]   Internal Card Reader   6-in-1 Card Reader; MMC/RSMMC/SD/MiniSD/SDHC/SDXC; UHS-II interface   Biometric Device   Built-in Fingerprint Reader   Embedded Security Chip   Embedded TPM 2.0 Security Chip for Data Encryption   Built-in Smart Card Reader   Built-in Smart Card Reader   TV Tuner (Internal and/or External)   None - Choose from the options below External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE [add $83]   Wireless LAN   2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8265; M.2 2230; up to 867Mbps; 2.4GHz/5GHz 2-in-1; 802.11a/b/g/n/ac WLAN + Bluetooth 4.1; Killer Wireless-AC 1535 2-in-1: 802.11ac WLAN+Bluetooth 5; Intel Wireless-AC 9260; M.2 2230; up to 1.73Gbps [add $33] 2-in-1: 802.11ac WLAN+Bluetooth 5; Intel Wireless-AC 9560; M.2; CNVio [add $33] 2-in-1; 802.11ac WLAN + Bluetooth 5; Killer Wireless-AC 1550 [add $33] Killer Wi-Fi 6 AX1650x; 802.11 a/b/g/n/ac WLAN+ Bluetooth 5.0; M.2; 22x30mm [add $58]   Built-in Web Camera   2.0 Megapixels; Webcam; Built-in   Thunderbolt Port   1x Thunderbolt 3 (via USB 3.1 type C)   Standard Battery (internal)   8-cells Smart Li-lon Battery   Choose Extra Battery   None - Choose from the options below 8-cells Smart Li-Ion Battery [add $149] 2pcs of 8-cells Smart Li-Ion Battery [add $298]   Standard AC Adapter   330W AC Adapter; Auto-switching; 100-240V; 50-60Hz; DC 19.5V @ 16.9A 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; w/ DC cable [add $288]   Choose Extra AC Adapter   None - Choose from the options below 330W AC Adapter; Auto-switching; 100-240V [add $188] 2 extra 330W AC Adapters; Auto-switching; 100-250V [add $375] 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; w/ DC cable [add $475]   Standard Power Cord - included   USA / Canada EUROPE UK SOUTH AFRICA AUSTRALIA   Carrying Case   None - Choose from the options below TARGUS 16-inch Sport Backpack; Heavy-Duty Fabrics with Nylon Webbing Reinforcement; TCG650 [add $83] EVERKI TITAN; XXL Backpack for up to 18.4-inch laptops; EKP120 [add $208] 17.3-inch Sport Backpack; Black; Targus Voyager TSB045CA [add $100] 17-18-inch (43.1-45.7cm); Black; Clamshell; Targus CNXL18 Laptop Pro Case [add $124] 17-inch Rolling Travel Case; Black Nylon; Exterior 457x381x254mm / 18.28x15.24x10.16inch; Targus TCG717 [add $108]   Choose Your Warranty Plan   1 Year Return to Factory Depot with 1 Year of Tech Support 2 Years Return to Factory Depot with 2 Years of Tech Support [add $146] 3 Years Return to Factory Depot with 3 Years of Tech Support [add $313] Options   Extra Thermal Pads for M.2 SSD   None - Choose from the options below: Set of M.2 SSD Thermal pads 15x15x2mm [add $38]   Extra Power Cord   None - Choose from the options below 2 Extra; US/CANADA [add $15] 1 Extra; USA/CANADA [add $8] 1 Extra; UK [add $8] 1 Extra; EUROPE [add $8] 1 Extra; SOUTH AFRICA [add $8] 1 Extra; AUSTRALIA [add $8] 2 Extra; AUSTRALIA [add $15] 2 Extra; SOUTH AFRICA [add $15] 2 Extra, EUROPE [add $15] 2 Extra; UK [add $15]   Graphics Tablet / Stylus   None, Choose from the options below Wacom Intuos Pro - Small; 12.6x8.2x0.5in (active 6.2x3.9in); Pen Tablet; 5080lpi [add $333] Wacom Intuos Pro - Medium; 13.2x8.5x0.3in (active 8.7x5.8in); Pen Tablet; 5080lpi [add $416] Wacom Intuos Pro - Large; 16.8x11.2x0.3in (active 12.1x8.4in); Pen Tablet; 5080lpi [add $583] Accessories   Docking Stations, Hubs and Port Replicators   None - Choose from the options below USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz [add $66] USB 3.0 Universal Docking Station; Targus DOCK160USZ; 2x DP 1.2; 2x HDMI 2.0; 1GbE LAN; 4x USB 3.0; 1x USB 3.1 Gen1 (C); Audio in/out; Lock slot [add $249]   Car Adapters and Inverters   None - Choose from the options below 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs [add $99]   Cables, Converters and Adapters   None - Choose from the options below: 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS [add $166] 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10 [add $58]   DisplayPort Adapters, Cables and Converters   None - choose from the options below: MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID [add $191] HDMI or DVI to DP Active Converter (converts HDMI, DVI or Mini DVI input into a DP output); HDMI2DP [add $108] 10ft (3m) MiniDP to DP Cable; M/M; MDP2DPMM10 [add $58] 6-inch MiniDP to DP cable; M/F; MDP2DPMF6IN [add $41]   Security Cables and Security Devices   None - Choose from the options below Targus - Defcon CL Cable PA410C [add $41] Targus Defcon 1 Alarm Device PPA400C [add $41]

Currency:  CAD USD EUR GBP    Price:
