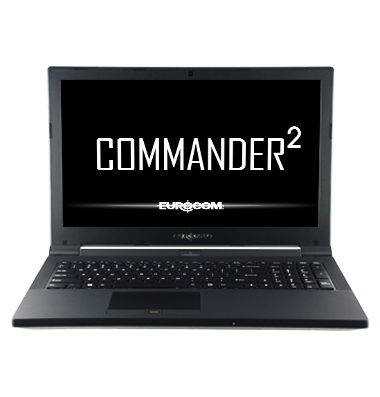

EUROCOM Commander 2
15.6-inch FHD 1920-by-1080 pixels; 16:9 panel; 3.8mm; eDP; LCD can be open up to 180 degrees.

  • Chipset: Intel Q370; vPro Technology
  • LAN Adapter: 1GbE on-board (Intel I219)
  • Processor: up to 2.9GHz; socket LGA1151; Intel i7-8700T, i7-8700, i5-8600, i5-9600K, i7-9700K
  • Memory: up to 64GB; DDR4-2666; SODIMM; two 260-pin sockets
  • GPU Controller: Intel HD Graphics 630; iGPU
  • Storage: up to 24TB of storage; three drives (2nd HDD/SSD via ODD bay, 3rd via M.2)
  • Optical Drive: choice of DVD-RW or Blu-RW; internal ODD
  • Operating System: Microsoft: Windows 10, Server 2016; Linux; VMware ESXI
  • Audio: Built in two 2W speakers; built in microphone; S/PDIF output
  • Keyboard: LED illuminated keyboard; built in touchpad with multi-gesture and scrolling function
  • I/O Ports: 1x Thunderbolt 3; 2x USB 3.0 (1x powered USB); 1x USB 2.0; 1x HDMI out; 1x VGA; 1x 2-in-1 Audio Jack (Headphone / S/PDIF); 1x Mic; 1x RJ-45
  • Docking Station Port:optional hot docking station available
  • SmartCard Reader: built in SmartCard Reader (Alcor Micro AU9560-GBS-GR)
  • Card Reader: MMC/RSMMC/SD/mini SD/SHDC/SDXC
  • Communications: built in 1Gb LAN (Intel I219 vPro); M.2 WLAN; prewired for LTE/4G M.2 WAN module
  • Power: 65W, 120W or 150W AC Adapter 100-250V; 6-cell 62WH Smart Li-Ion batteries (340 minutes)
  • Security: TPM 2.0; Kensington Lock; Fingerprint Reader
  • Dimensions and Weight: 382x259.5x32.95mm; 15.28x10.38x1.32-inch; 2.5kg/5.5lbs

    Docking Station:
  • Dimensions and Weight: 380x206x33mm/15.2x8.24x1.32-inch; 0.85kg/1.87lb
  • I/O Ports: 3x USB 2.0; 4x USB 3.0 (including 1x powered); 1x CRT; 1x DVI-D; 1x HDMI-out; 1x Headphone out; 1x Mic in; 1x S/PDIF; 1x RJ45/LAN; 1x RS232 (serial); 1x docking port; 1x DC-in, 1x Kensington Security Lock slot
  • HDMI and DVI ports: support 1920x1080 FHD 60Hz external monitors only
  • Storage: ODD (DVD-RW or Blu Ray) or HDD/SSD
  • Power: external 90W AC Adapter provided
    CustomizeSpecificationsImagesBrochurePrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price List
    How do I hook up an Thunderbolt Docking Station to my Commander 2 laptop
    Jun 28, 2019
    PDF Document

    If you have purchased a Commander 2 laptop along with the recommended docking station, you may be wondering how it all hooks up.

    The Commander 2 has a Thunderbolt 2 connection. The Thunderbolt 2 cable comes out of the Thunderbolt port and goes directly into the Thunderbolt Port on the back of the Docking Station marked "60W".

    The external monitor's DisplayPort connection is then connected to the DisplayPort slot on the back of the Docking Station.

    A photo of all the ports on the Docking Station is attached to the FAQ for reference.

    How to use Commander Docking Station? What I/O ports are there?
    May 13, 2016
    PDF Document
