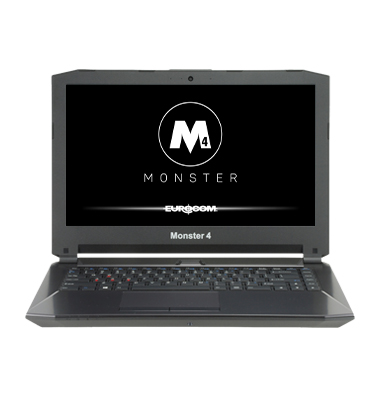

14-inch (35.56cm) FHD 1920-by-1080 or QHD 2560-by-1440 pixels The Monster 4 is a high performance "Little Monster": lightweight, ultraportable yet fully loaded with high end GTX 970M graphics, FHD high resolution display, Core i7 Skylake CPU, up to 64GB of DDR4 memory, 3G/LTE antenna, an optional super-fast M2 NVMe drive, plus a standard bay that can fit another blazing fast SSD drive or storage drive. Processor: on-board; Intel Core i7-6700HQ or 6820HK Processor VGA Technology: on-board; NVIDIA GeForce GTX 970M (3GB DDR5); Microsoft Hybrid Graphics; supports up to four active displays Memory: Two 260-pin SODIMM sockets; DDR4-2133/2400; 1.2V; up to 64GB Storage: up to 16TB of storage with 2 physical drives: one HDD/SSD (7mm) and one M.2 2280 SSD SATA3 / PCIe x4 Card Reader: 6-in-1: MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push Keyboard and Touchpad: Backlit A4 size; TouchPad with multi-gesture and scrolling Sound System: High Definition Audio; S/PDIF digital output; Built in array microphone; Built in two 2W speakers; SOUND BLASTER® X-FI® MB5; ANSP 3D sound technology on headphone output; External 5.1CH audio output supported by headphone, microphone and S/PDIF jack Ports: 4 x USB 3.0 (1x powered USB port, AC/DC); 2x mini Display Port 1.2; HDMI out; Headphone; 1 x Microphone-in; S/PDIF (digital); RJ-45 LAN; DC-in Communications: 1GbE LAN, WLAN, built in antenna for optional 3G/4G/LTE/HSPA Operating Systems: Windows 10, 8.1 and 7 Security: Kensington Lock and Embedded TPM 2.0 Battery: Polymer; 45WH; up to 290 minutes in UMA mode Weight: 2kg / 4.4bs Dimensions: WxDxH: 349x247x25.4mm

Configure

Specs

Images

Videos

Brochure

Benchmarks

Reviews

Components

Manual

Upgrade

Drivers

Base Configuration   System and Display   EUROCOM Monster 4   Display Calibration   Optional - choose from the options below: Professional Display Calibration with .icc Profile Saved on USB Flash Key [add $71]   Choose your LCD Display   14.0-inch (35.56cm); FHD 1920x1080; 60Hz; Matte; 700:1; 300nts; 84% sRGB; LED; eDP; 30pin; LP140WF3-SPD1   Security - ANTI SPYING Package   Choose: optional Factory ANTI SPYING package. Physical Removal of internal Webcam and Microphone. [add $66] Physical Removal of internal Webcam, Microphone and WLAN/Bluetooth Module [add $95]   Processor / CPU   2.60 GHz (up to 3.5) Intel Mobile Core i7-6700HQ; on-board/SMT; 4C/8T; 6MB; 14nm; HD Graphics 530; 45W 2.70 GHz (up to 3.6) Intel Mobile Core i7-6820HK; on-board/SMT; 4C/8T; 8MB L3; 14nm; HD Graphics 530; 45W [add $187]   Memory Configuration   8GB; 1x 8GB; DDR4; 2400Hz; CL14; 260-pin;1.2V; Kingston HyperX; 1 SODIMM 16GB; 2x 8GB; DDR4-2133; CL15; 260-pin; Micron; 1.2V; 2 SODIMMs [add $108] 16GB; 1x 16GB; DDR4-2133; CL15; 260-pin; Micron; 1.2V; 1 SODIMM [add $132] 16GB; 1x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 1 SODIMM [add $180] 16GB; 2x 8GB; DDR4-3000; Corsair; 260-pin; 1.2V; 2 SODIMMs [add $180] 16GB; 1x 16GB; DDR4-2400; CL14; 260-pin; Kingston HyperX; 1.2V; 1 SODIMM [add $164] 16GB; 2x 8GB; DDR4-2400; CL14; 260-pin; 1.2V; Kingston HyperX; 2 SODIMMs [add $156] 32GB; 2x 16GB; DDR4-2400; CL14; 260-pin Kingston HyperX; 1.2V; 2 SODIMMs [add $484] 32GB; 2x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 2 SODIMMs [add $516] 32GB; 2x 16GB; DDR4-2400; 260-pin; 1.2V; 2 SODIMMs; G-Skill F4-2400C16S-16GRS [add $484] 32GB; 2x 16GB; DDR4-2133; CL15; 260-pin; Micron; 1.2V; 2 SODIMMs [add $420] 64GB; 2x 32GB; DDR4-2666; 260-pin; 1.2V; 2 SODIMMs; Micron/Crucial/Samsung [add $996]   VGA / GPU Graphics Options   3GB GDDR5; NVIDIA GTX 970M (N16E-GT); 1280 CUDA; GPU/VRAM Clock 924MHz/2500MHz; Maxwell (28nm); on-board; 60W   Thermal Paste: GPU Heatsink   Standard Thermal Paste IC Diamond 7 Carat Thermal Compound for Maximum Performance [add $55] Grizzly Kryonaut; Ultra High Performance Thermal Grease [add $79]   Thermal Paste; CPU Heatsink   Standard Thermal Paste Grizzly Kryonaut; Ultra High Performance Thermal Grease [add $79] IC Diamond 7 Carat Thermal Compound for Maximum Performance [add $55]   Operating System(s)   None - Choose from the options below for Pre-install or install your own Microsoft Windows 7 Professional 64-bit; OEM; with DVD and USB key [add $319] Microsoft Windows 10 Home; 64-bit; OEM; USB key [add $159] Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key [add $299] Linux Ubuntu installed; LTS 18.04; USB key [add $156] Microsoft Windows Server 2022 x64 Standard; OEM; w/ 1 CTL User CAL [add $1359] Microsoft Windows Server 2022 x64 Standard; OEM; w/ 5 CTL User CALs [add $1759]   Keyboard (Language)   US English; QWERTY; Backlit UK English; QWERTY; Backlit [add $80] Español / Spanish; QWERTY; Backlit [add $80] Alemán / German; QWERTZ; Backlit [add $80] Français / French; AZERTY; Backlit [add $80] Italiana / Italian; QWERTY; Backlit [add $80] Norske / Norwegian; QWERTY; Backlit [add $80] Português / Portugese; QWERTY; Backlit [add $80] Svenska / Swedish; QWERTY; Backlit [add $80] Swiss; QWERTZ; Backlit [add $80]   Business Productivity Software   None - Choose from the options below Microsoft Office 2024 Home and Student Edition; OEM; MLK; US/Canada [add $143] Microsoft Office 2024 Home and Business Edition; OEM; MLK; US/Canada [add $279]   Internal PCIe NVMe M.2 SSD   Choose your SSD M.2 type 2280 (80x22mm) from the options below: 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $135] 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980 [add $319] 500GB; M.2 SAMSUNG 980 Pro; SSD; NVMe; R/W: up to 7000/5100MB/s [add $399] 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $263] 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s [add $559] 1TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W up to 7,450/6,900 MB/s [add $879] 1TB SSD; PCIe Gen 4.0 x4, NVMe 2.0 ; M.2 2280; R/W: up to 5000/4200 MB/s; SAMSUNG 990 EVO [add $719] 2TB SSD; SAMSUNG 990 Pro; PCIe Gen 4.0 x4, NVMe 2.0; M.2 2280; R/W: up to 7000/5100 MB/s [add $999] 2TB; M.2 SAMSUNG 970 Evo; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2500 MB/s [add $999] 2TB SSD NVMe; PCIe 5.0; M.2 2280; CORSAIR MP700 PRO; R/W: up to 12400/11800 MB/s [add $999] 4TB SSD; PCIe Gen 4.0 x4, NVMe 2.0; M.2; 22x80mm; Samsung 990 Pro; w/ AES 256-bit Encryption [add $1299] 8TB; M.2 NVMe SSD; 22x80mm; Sabrent Rocket Q; 5.7g/2.4oz [add $1999]   RAID Options: HDD/SSD Storage   None - Choose from the options below RAID 0 setup - for maximum performance [add $60] RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required [add $60]   1st Drive: HDD, SSD or SSHD   1TB;SSHD; SATA3; Seagate FireCuda ST1000LX015; 2.5in; 7mm 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm [add $104] 120GB MLC SSD; Intel 530 series; SATA3 6Gb/s; 7mm [add $3] 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W 560/530 MB/s [add $64] 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm 240GB MLC SSD; Intel 530 series; SATA3 (6Gb/s); 7mm [add $107] 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s [add $267] 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm [add $224] 1TB SSD; SATA3; Micron 1100; 7mm; 2.5in [add $347] 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; MZ-77E1T0B/AM [add $347] 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $507] 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $747] 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro [add $1067] 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s [add $1547] 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm [add $3787] *** Without Hard Drive; with HDD bracket included *** [sub $86]   External Optical Drive   None - Choose from the options below External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0 [add $319] External; DVD-RW Burner; USB 2.0 [add $119]   Internal Card Reader   6-in-1 Card Reader; SD/MS/MMC/SM/CF/MicroDrive   Embedded Security Chip   Embedded TPM 2.0 Security Chip for Data Encryption   Security Cables / Devices:   None - Choose from the options below Targus - Defcon CL Cable PA410C [add $39] Targus Defcon 1 Alarm Device PPA400C [add $39]   Wireless LAN   2-in-1: 802.11b/g/n WLAN + Bluetooth 4.0 Combo; M.2 2230; Realtek RTL8723BE 2-in-1: 802.11a/c WLAN + Bluetooth 4.0; Intel Wireless-AC 7265; M.2 2230 [add $16] 2-in-1: 802.11ac WLAN+Bluetooth 5; Intel Wireless-AC 9260; M.2 2230; up to 1.73Gbps [add $80] 2-in-1; 802.11a/b/g/n/ac WLAN + Bluetooth 4.1; Killer Wireless-AC 1535 [add $48]   Mobile Broadband Ready (M.2 for LTE/3G/4G Module + antennas + SIM slot)   Optional; Choose the list below: 4G LTE Mobile Broadband; M.2; Huawei ME906S; 42x30mm; installed [add $287]   TV Tuner (Internal and/or External)   None - Choose from the options below External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE [add $79] External; USB 2.0; Hauppauge HVR-955Q; ATSC/NTSC/QAM TV Tuner; w/ Remote [add $151]   Gaming Accessories   None - Choose from the options below Gaming Mouse Logitech G600 MMO Gaming Mouse; 20 Programmable Buttons [add $159]   Built-in Web Camera   2.0 Megapixels; FHD   Standard Battery (internal)   4-cells; Smart Li-Ion Battery   Choose Extra Battery   None - Choose from the options below 4-cells Smart-Lion Battery [add $132]   Standard Power Cord - included   USA / Canada EUROPE UK SOUTH AFRICA AUSTRALIA   Standard AC Adapter   180W Auto-Switching 100V-250V AC Adapter   Extra Power Cord   None - Choose from the options below 2 Extra; US/CANADA [add $14] 1 Extra; USA/CANADA [add $7] 1 Extra; AUSTRALIA [add $7] 2 Extra; AUSTRALIA [add $14] 2 Extra, EUROPE [add $14] 1 Extra; EUROPE [add $7] 1 Extra; SOUTH AFRICA [add $7] 2 Extra; SOUTH AFRICA [add $14] 1 Extra; UK [add $7] 2 Extra; UK [add $14]   Choose Extra AC Adapter   None - Choose from the options below 180W; Auto-Switching 100-250V [add $135]   Carrying Case   None - Choose from the options below 16in Targus Trademark Notepac Plus Case; Black (CTM400); internal: 14.5x2x11.75in [add $103] 16in Sport Backpack; Heavy-Duty Fabrics with Nylon Webbing Reinforcement; TARGUS TCG650 [add $95] 18in (43.1-45.7cm); Black; Clamshell; Targus CNXL18 Laptop Pro Case [add $151] 17.3in Sport Backpack; Black; Targus Voyager TSB953GL [add $135]   Choose Your Warranty Plan   1 Year Return to Factory Depot with 1 Year of Tech Support 2 Years Return to Factory Depot with 2 Years of Tech Support [add $220] 3 Years Return to Factory Depot with 3 Years of Tech Support [add $335] Options   Extra Thermal Pads for M.2; VRAM; RAM   None - Choose from the options below: Set of M.2 SSD Thermal pads 15x15x2mm [add $36]   Graphics Tablet / Stylus   None, Choose from the options below Wacom Intuos Pro;Small; 10.6x6.7in (active 6.3x3.9in); Pen Tablet; PTH460K0A [add $319] Wacom Intuos Pro - Medium; 13.2x8.5in (active 8.7x5.8in); Pen Tablet; PTH660 [add $399] Wacom Intuos Pro - Large; 16.8x11.2in (active 12.1x8.4in); Pen Tablet; PTH860 [add $559] Accessories   External Hard Drive for Data Backup or Network Storage (NAS)   None - Choose from the options below 2TB Buffalo LinkStation 210; 1-Bay NAS Network Attached Storage [add $396] 4TB; BUFFALO LinkStation 720 4TB 2-Bay; Network Attached Storage/NAS Storage/Network Storage/Media Server/File Server [add $636]   Docking Stations, Hubs and Port Replicators   None - Choose from the options below USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz [add $63]   Car Adapters and Inverters   None - Choose from the options below 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs [add $95]   Cables, Converters and Adapters   None - Choose from the options below: 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS [add $159] 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10 [add $55] 1pc DisplayPort to DVi-I Converter Cable for DP port and/or Matrox DH2G or TH2G DP Edition [add $23] 2pcs DisplayPort to DVi-I Converter Cables for Matrox TH2G or DH2G DP Edition [add $46] 3pcs of DisplayPort to DVi-I Converter Cables for Matrox TH2G DP Edition [add $70]   Cables/Adapters for External Monitors; DP; mDP; HDMI; DVI   None - choose from the options below: MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID [add $183] DP to DVI Video Adapter M/M; Startech DP2DVIDAP [add $39]
