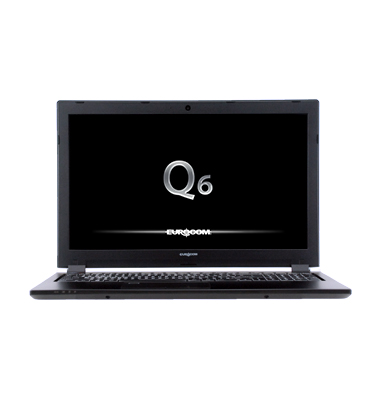

EUROCOM Q6
15.6in UHD 60Hz or FHD 60Hz, 120Hz, 144Hz

  • Platform: Coffee Lake Intel HM370; NVIDIA MAX-Q design 18.6mm thin
  • Powerful Processor: Intel Core i7-8750H (6cores/12threads); on-board
  • GPU Technology: NVIDIA GeForce GTX 1070 (8GB DDR5); on-board; Microsoft Hybrid Graphics mode
  • Display Technology: supports total 4 active displays; supports NVIDIA Surround View via HDMI x1 and miniDP x2.
  • Robust Design: Titanium Black Aluminum Alloy (AL-5052): back cover, top case and bottom case.
  • Cooling: High performance, high quality copper GPU and CPU heatsinks to keep your system running cool.
  • Memory: Two 260-pin SODIMM sockets; DDR4-2400/2666/3000; 1.2V; up to 64GB
  • Storage: up to 10TB of storage with 2 physical drives: 1x M.2 2280 SSD SATA3 / PCIe x4 and 1x HDD/SSD SATA3 6Gb/s and RAID 0/1
  • Communications: 1GbE LAN, WLAN (M.2) and optional LTE/4G M.2 module (built-in antenna and SIM socket)
  • Sound System: SoundBlasterX Pro Gaming 360; ALC1220
  • Card Reader: 6-in-1: MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push
  • Keyboard and Touchpad: Backlit multi-colour full size 7-colour keyboard with numeric pad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key
  • Loaded with Ports: 2x USB 3.1c; 3x USB 3.0; 2x mini Display Port 1.3; HDMI 2.0 output; 2-in-1 Audio Jack (Headphone + S/PDIF output); Microphone-in; RJ-45 LAN; DC-in
  • Operating Systems: Windows 10
  • Security: Kensington Lock, Fingerprint and Embedded TPM 2.0 Encryption
  • Battery: 4cells Lithium Polymer; 55WH; up to 300 minutes in UMA mode
  • Weight: 1.9kg / 4.2lbs
  • Dimensions: WxDxH: 380x249x18.6mm / 15.2x9.96x0.74-inch
    		•

    CustomizeSpecificationsImagesBrochureBenchmarksReviewsPrice ListComponentsUser ManualDriversUpgradeUpgrade Price List
    Base Configuration
      System and Display
      - EUROCOM Q6
      Choose your LCD Display
      - 15.6-inch (39.6cm); 60Hz FHD 1920x1080; Matte; IPS; 700:1; NTSC 72%; 30pin; LG LP156WF6-SPP2
      - 15.6-inch (39.6cm); 144Hz FHD 1920x1080; Matte; IPS; NTSC 72%; 300 cd/m2; eDP; 40pin; LG LP156WFG-SPF2
      - 15.6-inch (39.6cm); UHD; 60Hz; Matte; IPS; 25ms; 800:1; NTSC 72%; 300 cd/m2; eDP 40pin; LP156UD1-SPB1
      Display Calibration
      - Optional - choose from the options below:
      - Professional Display Calibration with .icc Profile Saved on USB Flash Key
      eXpansion Modules for 2-3 External Monitors
      - None - Choose from the options below
      - Matrox TripleHead2Go DisplayPort Edition; w/ 3 DP-out ports; up to 3 external displays; 5760x1080 (3x 1920x1080) or 3840x1200 (2x 1920x1200)
      VGA / GPU Graphics Options
      - 8GB GDDR5; NVIDIA GTX 1070 (N17E-G2); 2048 CUDA; Pascal (16nm); on-board; 100W
      GPU Heatsink - Thermal Paste
      - Standard Thermal Paste
      - IC Diamond 7 Carat Thermal Compound for Maximum Performance
      - Grizzly Kryonaut; Ultra High Performance Thermal Grease
      Processor / CPU
      - 2.20 GHz (up to 3.9) Intel Mobile Core i7-8750H; on-board/SMT; 6C/12T; 9MB L3; 14nm; 45W
      - 2.30 GHz (up to 4.0) Intel Mobile Core i5-8300H; on-board/SMT; 4C/8T; 8MB L3; 14nm; 45W
      CPU Heatsink - Thermal Paste
      - IC Diamond 7 Carat Thermal Compound for Maximum Performance
      - Grizzly Kryonaut; Ultra High Performance Thermal Grease
      Memory (RAM) Configuration
      - 16GB; 2x 8GB; DDR4-2400; CL14; 260-pin; 1.2V; Kingston HyperX; 2 SODIMMs
      - 16GB; 1x 16GB; DDR4-2400; CL14; 260-pin; Kingston HyperX; 1.2V; 1 SODIMM
      - 16GB; 2x 8GB; DDR4; 2666Hz; CL15; 260-pin;1.2V; Kingston HyperX; 2 SODIMMs
      - 16GB; 2x 8GB; DDR4-3000; Corsair; 260-pin; 1.2V; 2 SODIMMs
      - 16GB; 1x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 1 SODIMM
      - 32GB; 2x 16GB; DDR4; 2666Hz; CL15; 260-pin;1.2V; Kingston HyperX; 2 SODIMMs
      - 32GB; 2x 16GB; DDR4-2400; CL14; 260-pin Kingston HyperX; 1.2V; 2 SODIMMs
      - 32GB; 2x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 2 SODIMMs
      - 64GB; 2x 32GB; DDR4-2666; Samsung; 260-pin; 1.2V; 2 SODIMMs
      Operating System(s)
      - None - Choose from the options below for Pre-install or install your own
      - Microsoft Windows 10 Home; 64-bit; OEM; USB key
      - Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key
      - Linux Ubuntu installed; LTS 18.04; USB key; check for H/W limitations when ordering
      Keyboard (Language)
      - US English; QWERTY; Backlit
      - UK English; QWERTY; Backlit
      - Alemán / German; QWERTZ; Backlit
      - Español / Spanish; QWERTY; Backlit
      - Français / French; AZERTY; Backlit
      - Italiana / Italian; QWERTY; Backlit
      - Norske / Norwegian; QWERTY; Backlit
      - Português / Portugese; QWERTY; Backlit
      - Svenska / Swedish; QWERTY; Backlit
      - Swiss German; QWERTZ; Backlit
      Office/Business Productivity Software
      - None - Choose from the options below
      - Microsoft Office 2021 Home and Student Edition; OEM; MLK; US/Canada
      - Microsoft Office 2021 Home and Business Edition; OEM; MLK; US/Canada
      Internal M.2 SSD Storage: NVMe or SATA
      - Choose your SSD M.2 type 2280 (80x22nm) from the options below:
      - 250GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2 SAMSUNG 980 Pro; SSD; PCIe 4.0; NVMe; R/W: up to 7000/5100MB/s
      - 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 1TB SSD; SAMSUNG 980 Pro; PCIe 4.0 NVMe M.2 2280; R/W: up to 7000/5100 MB/s
      - 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 1TB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 2TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      RAID Options: HDD/SSD Storage
      - None - Choose from the options below
      - RAID 0 setup - for maximum performance
      - RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required
      1st Drive: HDD, SSD or SSHD
      - 1TB; HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in
      - 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm
      - 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm
      - 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W 560/530 MB/s
      - 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s
      - 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm
      - 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 1TB SSD; SATA3; Micron 1100; 7mm; 2.5in
      - 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; MZ-77E1T0B/AM
      - 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm
      - *** Without Hard Drive; with HDD bracket included ***
      External Optical Drive
      - None - Choose from the options below
      - External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0
      - External; DVD-RW Burner; USB 2.0
      Internal Card Reader
      - 6-in-1 Card Reader; SD/MS/MMC/SM/CF/MicroDrive
      Biometric Device
      - Built-in Fingerprint Reader
      Embedded Security Chip
      - Embedded TPM 2.0 Security Chip for Data Encryption
      Mobile Broadband Ready (M.2 for LTE/3G/4G Module + antennas + SIM slot)
      - Optional; Choose the list below:
      - 4G LTE Mobile Broadband; M.2; Huawei ME906S; 42x30mm; installed
      Wireless LAN
      - 2-in-1: 802.11ac WLAN+Bluetooth 5; Intel Wireless-AC 9260; M.2 2230; up to 1.73Gbps
      TV Tuner (Internal and/or External)
      - None - Choose from the options below
      - External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE
      - External; USB 2.0; Hauppauge HVR-955Q; ATSC/NTSC/QAM TV Tuner; w/ Remote
      Gaming Accessories
      - None - Choose from the options below
      - Gaming Mouse Logitech G600 MMO Gaming Mouse; 20 Programmable Buttons
      Built-in Web Camera
      - 2.0 Megapixels; FHD
      Choose Extra Battery
      - None - Choose from the options below
      - 4-cells Smart-Lion Battery
      Standard AC Adapter
      - 180W Auto-Switching 100V-250V AC Adapter
      - 200W AC Adapter; 100-240V; Auto-Switching (Worldwide)
      Standard Power Cord - included
      - USA / Canada
      - EUROPE
      - UK
      - SOUTH AFRICA
      - AUSTRALIA
      Extra Power Cord
      - None - Choose from the options below
      - 1 Extra; USA/CANADA
      - 2 Extra; US/CANADA
      - 1 Extra; AUSTRALIA
      - 2 Extra; AUSTRALIA
      - 2 Extra, EUROPE
      - 1 Extra; EUROPE
      - 1 Extra; SOUTH AFRICA
      - 2 Extra; SOUTH AFRICA
      - 2 Extra; UK
      - 1 Extra; UK
      Choose Extra AC Adapter
      - None - Choose from the options below
      - 180W; Auto-Switching 100-250V
      - 200W; Auto-switching 100V-250V; Worldwide
      Carrying Case
      - None - Choose from the options below
      - EVERKI ContemPRO; XXL Backpack for up to 18.4-inch laptops; EKP117B; 530x420x220mm; 42l
      - Targus Trademark Notepac Plus Case 16-in, Black (CTM400); internal: 14.5x2x11.75in
      - TARGUS 16-inch Sport Backpack; Heavy-Duty Fabrics with Nylon Webbing Reinforcement; TCG650
      - 17-18-inch (43.1-45.7cm); Black; Clamshell; Targus CNXL18 Laptop Pro Case
      - 17.3-inch Sport Backpack; Black; Targus Voyager TSB953GL
      Choose Your Warranty Plan
      - 1 Year Return to Factory Depot with 1 Year of Tech Support
      - 2 Years Return to Factory Depot with 2 Years of Tech Support
      - 3 Years Return to Factory Depot with 3 Years of Tech Support

    Options
      Graphics Tablet / Stylus
      - None, Choose from the options below
      - Wacom Intuos Pro;Small; 10.6x6.7in (active 6.3x3.9in); Pen Tablet; PTH460K0A
      - Wacom Intuos Pro - Medium; 13.2x8.5in (active 8.7x5.8in); Pen Tablet; PTH660
      - Wacom Intuos Pro - Large; 16.8x11.2in (active 12.1x8.4in); Pen Tablet; PTH860

    Accessories
      External Hard Drive for Data Backup or Network Storage (NAS)
      - None - Choose from the options below
      - 2TB, NAS; Network Attached Storage; External 3.5-inch; WDH1NC20000N
      Docking Stations, Hubs and Port Replicators
      - None - Choose from the options below
      - USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz
      Car Adapters and Inverters
      - None - Choose from the options below
      - 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs
      Cables, Converters and Adapters
      - None - Choose from the options below:
      - 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS
      - 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10
      - 1pc DisplayPort to DVi-I Converter Cable for DP port and/or Matrox DH2G or TH2G DP Edition
      - 2pcs DisplayPort to DVi-I Converter Cables for Matrox TH2G or DH2G DP Edition
      - 3pcs of DisplayPort to DVi-I Converter Cables for Matrox TH2G DP Edition
      DisplayPort Adapters, Cables and Converters
      - None - choose from the options below:
      - MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID
      - DP to DVI Video Adapter M/M; Startech DP2DVIDAP
      Security Cables and Security Devices
      - None - Choose from the options below
      - Targus - Defcon CL Cable PA410C
      - Targus Defcon 1 Alarm Device PPA400C
