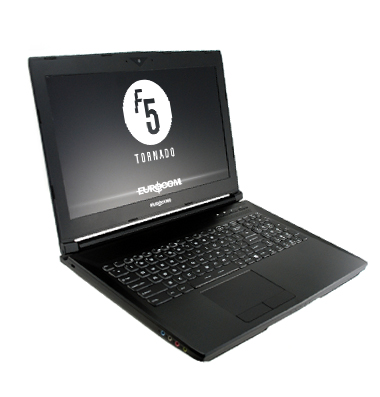

EUROCOM Tornado F5
15.6-inch FHD 1920-by-1080 pixels or 4K UHD 3840-by-2160 pixels

  • Fully upgradeable, fully customizable - a True Workhorse
    Turn the EUROCOM Tornado F5 into the laptop of your dreams by selecting the components you want to fit inside this highly capable, yet very mobile chassis.

  • Chassis: Aluminium Alloy (Back Cover and Top Case) and German manufactured resins (Front Cover and Bottom Case)
  • Chipset: High Performance Intel Z170 Express Chipset
  • Processor: Socket based; LGA1151; up to 91W TDP; choice of Core i7, i5, i3 up to 6700K/7700K.
  • VGA Technology: upgradeable MXM 3.0; NVIDIA GeForce: GTX 1080, 1070, 1060, 980M, 970M or 965M; Quadro: M1000M, M3000M, M4000M, M5000M, P3000, P4000 and P5000; up to 150W TDP; discrete GPU only (no Optimus)
  • Memory: Four 260-pin SODIMM sockets; DDR4-2133/2400/3000; up to 64GB
  • Storage: up to 16TB with 3 physical drives: 2x M.2 2280 PCIe x2/x4 or SATA SSD and 1x HDD/SSD (9.5mm) SATA3 6Gb/s; RAID 0/1 with 2x NVMe SSDs.
  • Card Reader: 6-in-1: UHS-II interface; MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push
  • Keyboard and Touchpad: Anti-ghosting backlit multi-colour 7-colour keyboard with seperate numeric keypad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key
  • Ports: 3x USB 3.0; 1x USB 3.1 type C (Thunderbolt 3); 1x miniDP 1.2; 1x HDMI 2.0; 1x Headphone; 1x Microphone-in; 1x S/PDIF (digital); 1x Line-in; 1x RJ-45 LAN; 1x DC-in
  • Audio: High Definition Audio; S/PDIF Digital Output; Built in microphone; Built in two 2W speakers; Sound Blaster X-FI MB3; External 7.1CH output (headphone, mic, line-in and S/PDIF).
  • Display Support: Supports up to 4 active displays including internal LCD; up to 3840x2160 @ 60Hz
  • Battery: 8cells; 14.4V 5225mAh/75.24Wh Li-Ion; up to 130 minutes
  • Weight: 2.92kg / 6.45 lbs w/ battery
  • Dimensions: 390x266x39.8mm / 15.6x10.64x1.59-inch
    		•

    CustomizeSpecificationsImagesVideosBrochureBenchmarksReviewsPrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price ListLCD Chart
    Base Configuration
      System and Display
      - EUROCOM Tornado F5
      Choose your LCD Display
      - 15.6in (39.6cm); 60Hz FHD 1920x1080; Matte; IPS; C/R 700:1; 300cd/m2; NTSC 72%; eDP; 30pin; LG LP156WF6-SPB1
      - 15.6in (39.6cm); UHD; 60Hz; Matte; PLS; 700:1; 16ms; NTSC 72%; eDP; 40pin; Samsung LTN156FL02-101
      G-Sync
      - without NVIDIA G-SYNC™
      - with NVIDIA G-SYNC™
      Security - ANTI SPYING Package
      - Choose: optional Factory ANTI SPYING package.
      - Physical Removal of internal Webcam and Microphone.
      Display Calibration
      - Optional - choose from the options below:
      - Professional Display Calibration with .icc Profile Saved on USB Flash Key
      eXpansion Modules for 2-3 External Monitors
      - None - Choose from the options below
      - Matrox TripleHead2Go DisplayPort Edition; w/ 3 DP-out ports; up to 3 external displays; 5760x1080 (3x 1920x1080) or 3840x1200 (2x 1920x1200)
      GPU Technology
      - Single GPU support; Modular MXM3; Upgradeable
      VGA / GPU Graphics Options
      - 8GB GDDR5; NVIDIA GeForce GTX 1070; 2048 CUDA; N17E-G2; MXM 3.1
      - 8GB GDDR5X; NVIDIA GeForce GTX 1080; 2560 CUDA; N17E-G3; MXM 3.1; up to 150W
      - NVIDIA GeForce GTX 1060; 6GB DDR5; 1280 CUDA; N17E-G1; MXM 3.1b; 82x105mm; 75W
      - 6GB GDDR5; NVIDIA GTX 970M (N16E-GT); 1280 CUDA; GPU/VRAM Clock 924MHz/2500MHz; Maxwell (28nm); MXM 3.0b; 81W
      - 8GB GDDR5; NVIDIA GTX 980M (N16E-GX); 1536 CUDA; GPU/VRAM Clock 1038MHz/2500MHz; Maxwell (28nm); MXM 3.0b; 100W
      - Quadro M1000M; 2GB GDDR5; N16P-Q1; 512 CUDA; MXM 3.0a; 40W
      - Quadro M3000M; 4GB GDDR5; N16E-Q1; 1024 CUDA; MXM 3.0b; 28nm; 75W
      - Quadro M4000M; 4GB GDDR5; N16E-Q3; 1280 CUDA; MXM 3.0b; 100W
      - Quadro M5000M; 8GB GDDR5; N16E-Q5; 1536 CUDA; MXM 3.0b; 28nm; 100W
      - Quadro P5000; 16GB GDDR5; N17E-Q5; 2048 CUDA; MXM 3.1b; 82x105mm; 100W
      GPU Heatsink - Thermal Paste
      - IC Diamond 7 Carat Thermal Compound for Maximum Performance
      - Grizzly Kryonaut; Ultra High Performance Thermal Grease
      Processor / CPU
      - 3.6GHz (up to 4.2GHz) Intel Core i7-7700; 4C/8T; 8MB L3; 14nm; LGA1151; 65W; Intel D Graphics 630
      - 4.2GHz (up to 4.5GHz) Intel Core i7-7700K; 4C/8T; LGA1151; 91W
      - 3.8GHz (up to 4.2GHz) Intel Core i5-7600K; 4C/4T; 6MB L3; 14nm; LGA1151; 91W
      - 4GHz (up to 4.2GHz) Intel Core i7-6700K; 4C/8T; 8MB; 14nm; LGA1151; 91W
      - 3.3GHz (up to 3.9GHz) Intel Core i5-6600; 4C/4T; 6MB; 14nm; LGA1151; 65W
      - 3.4GHz (up to 4GHz) Intel Core i7-6700; 4C/8T; 8MB; 14nm; LGA1151; 65W
      BIOS: Standard or Unlocked
      - Standard BIOS
      - UNLOCKED BIOS
      CPU Heatsink - Thermal Paste
      - IC Diamond 7 Carat Thermal Compound for Maximum Performance
      - Grizzly Kryonaut; Ultra High Performance Thermal Grease
      Memory (RAM) Configuration
      - 8GB; 1x 8GB; DDR4; 2400Hz; CL14; 260-pin;1.2V; Kingston HyperX; 1 SODIMM
      - 16GB; 2x 8GB; DDR4-2400; CL14; 260-pin; 1.2V; Kingston HyperX; 2 SODIMMs
      - 16GB; 1x 16GB; DDR4-2400; 260-pin; 1.2V; 1 SODIMM; G-Skill F4-2400C16S-16GRS
      - 16GB; 1x 16GB; DDR4-2400; CL14; 260-pin; Kingston HyperX; 1.2V; 1 SODIMM
      - 16GB; 1x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 1 SODIMM
      - 16GB; 2x 8GB; DDR4-3000; Corsair; 260-pin; 1.2V; 2 SODIMMs
      - 24GB; 3x 8GB; DDR4; 2400Hz; CL14; 260-pin; 1.2V; Kingston HyperX; 3 SODIMMs
      - 32GB; 4x 8GB; DDR4-2400; CL14; 260-pin;1.2V; Kingston HyperX; 4 SODIMMs
      - 32GB; 2x 16GB; DDR4-2400; 260-pin; 1.2V; 2 SODIMMs; G-Skill F4-2400C16S-16GRS
      - 32GB; 2x 16GB; DDR4-2400; CL14; 260-pin Kingston HyperX; 1.2V; 2 SODIMMs
      - 32GB; 2x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 2 SODIMMs
      - 32GB; 4x 8GB; DDR4-3000; Corsair; 260-pin; 1.2V; 4 SODIMMs
      - 48GB; 3x 16GB; DDR4-2400; CL14; 260-pin; Kingston HyperX; 1.2V; 3 SODIMMs
      - 48GB; 3x 16GB; DDR4-2400; 260-pin; 1.2V; 3 SODIMMs; G-Skill F4-2400C16S-16GRS
      - 48GB; 3x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 3 SODIMMs
      - 64GB; 4x 16GB; DDR4-2400; CL14; 260-pin; Kingston HyperX; 1.2V; 4 SODIMMs
      - 64GB; 4x 16GB; DDR4-2400; 260-pin; 1.2V; 4 SODIMMs; G-Skill F4-2400C16S-16GRS
      - 64GB; 4x 16GB; DDR4-3000; Corsair; 260-pin; 1.2V; 4 SODIMMs
      Operating System(s)
      - None - Choose from the options below for Pre-install or install your own
      - Microsoft Windows 10 Home; 64-bit; OEM; USB key
      - Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key
      - Microsoft Windows 7 Professional 64-bit; OEM; with DVD and USB key
      Keyboard (Language)
      - US English; QWERTY; Backlit
      - Français / French; AZERTY; Backlit
      - Español / Spanish; QWERTY; Backlit
      - Alemán / German; QWERTZ; Backlit
      - Italiana / Italian; QWERTY; Backlit
      - Russian Latin; QWERTY; Backlit
      - UK English; QWERTY; Backlit
      Office/Business Productivity Software
      - None - Choose from the options below
      - Microsoft Office 2021 Home and Student Edition; OEM; MLK; US/Canada
      - Microsoft Office 2021 Home and Business Edition; OEM; MLK; US/Canada
      RAID Configuration
      - None - Choose from the options below:
      - RAID 0 - for maximum performance; at least 2 physical drives are required
      - RAID 1 - for redundancy; at least 2x physical drives are required
      Internal M.2 SSD Storage
      - Choose your SSD M.2 type 2280 (80x22nm) from the options below:
      - 250GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 500GB; M.2 SAMSUNG 980 Pro; SSD; PCIe 4.0; NVMe; R/W: up to 7000/5100MB/s
      - 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 1TB SSD; SAMSUNG 990 Pro; PCIe 4.0 NVMe M.2 2280; R/W speeds up to 7,450/6,900 MB/s
      - 1TB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 2TB; M.2 SAMSUNG 970 EVO; SSD; NVMe; R/W: 3500/2500 MB/s
      - 4TB; NVMe PCIe 4.0; M.2; SSD; 22x80mm; Samsung 990 Pro MZ-V9P4T0B/AM; AES 256-bit Encryption
      Internal M.2 SSD Storage
      - Choose your SSD M.2 type 2280 (80x22mm) from the options below:
      - 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 500GB; M.2 SAMSUNG 980 Pro; SSD; NVMe; R/W: up to 7000/5100MB/s
      - 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 1TB SSD; SAMSUNG 990 Pro; PCIe 4.0 NVMe M.2 2280; R/W speeds up to 7,450/6,900 MB/s
      - 1TB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 2TB; M.2 SAMSUNG 970 Evo; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2500 MB/s
      - 4TB; NVMe PCIe 4.0; M.2; SSD; 22x80mm; Samsung 990 Pro MZ-V9P4T0B/AM; AES 256-bit Encryption
      RAID Options: HDD/SSD Storage
      - None - Choose from the options below
      - RAID 0 setup - for maximum performance; minimum 2 physical drives are required
      - RAID 1 setup - for full fault tolerance; minimum 2 physical hard drives are required
      - Multiple Partitions with Two O/S; please specify size of each partition; order 2nd O/S
      - Multiple Partitions with One O/S - please specify size of each partition
      1st Drive: HDD, SSD or SSHD
      - 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in
      - 1TB; HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in
      - 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm
      - 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm
      - 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W 560/530 MB/s
      - 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm
      - 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s
      - 1TB SSD; SATA3; Micron 1100; 7mm; 2.5in
      - 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; MZ-77E1T0B/AM
      - 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm
      External Optical Drive
      - None - Choose from the options below
      - External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0
      - 24x DVD-RW; External; USB 2.0
      Internal Card Reader
      - 6-in-1 Card Reader; MMC/RSMMC/SD/MiniSD/SDHC/SDXC; UHS-II interface
      TV Tuner (Internal and/or External)
      - None - Choose from the options below
      - External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE
      Wireless LAN
      - 2-in-1: 802.11b/g/n WLAN + Bluetooth 4.0 Combo; M.2 2230; Realtek RTL8723BE
      - 2-in-1; 802.11a/b/g/n/ac WLAN + Bluetooth 4.1; Killer Wireless-AC 1535
      - 2-in-1: 802.11ac WLAN+Bluetooth 5; Intel Wireless-AC 9260; M.2 2230; up to 1.73Gbps
      - 2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8265; M.2 2230; up to 867Mbps; 2.4GHz/5GHz
      - 2-in-1; 802.11ac WLAN + Bluetooth 5; Killer Wireless-AC 1550
      Add Extra LAN Port(s) to your laptop
      - Optional - Add Extra LAN Port(s)
      - 1GbE USB 3.0 to 1GbE (1x RJ45 port) Adapter; Startech
      - USB-C to Dual Gigabit Ethernet Adapter; 2x RJ-45 ports; Startech US1GC301AU2R; VIA/VLI VL817 / ASIX AX88179A
      Gaming Accessories
      - None - Choose from the options below
      - Gaming Mouse Logitech G600 MMO Gaming Mouse; 20 Programmable Buttons
      Built-in Web Camera
      - 2.0 Megapixels; Webcam; Built-in
      - Without Webcam installed
      HDMI Port(s)
      - HDMI 2.0 Output Port
      Thunderbolt Port
      - 1x Thunderbolt 3 (via USB 3.1 type C)
      Standard Battery (internal)
      - 8-cells Lithium-lon Battery; Easy to change
      Choose Extra Battery
      - None - Choose from the options below
      - 8-cells Lithium-lon Battery; Easy to change
      - 2pcs of 8-cells Smart Li-Ion Battery
      Standard AC Adapter
      - 230W; 100V-250V; Auto-Switching (Worldwide)
      - 330W AC Adapter; Auto-switching; 100-240V; 50-60Hz; DC 19.5V @ 16.9A
      - 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; with DC cable
      Standard Power Cord - included
      - USA / Canada
      - EUROPE
      - UK
      - SOUTH AFRICA
      - AUSTRALIA
      Extra Power Cord
      - None - Choose from the options below
      - 2 Extra; US/CANADA
      - 1 Extra; USA/CANADA
      - 1 Extra; UK
      - 1 Extra; EUROPE
      - 1 Extra; SOUTH AFRICA
      - 1 Extra; AUSTRALIA
      - 2 Extra; AUSTRALIA
      - 2 Extra; SOUTH AFRICA
      - 2 Extra, EUROPE
      - 2 Extra; UK
      Choose Extra AC Adapter
      - None - Choose from the options below
      - 230W; Auto-switching 100V-250V
      - 2 extra 230W AC Adapters; 100V-250V
      - 330W AC Adapter; 100-240V; w/ 4pin round plug
      - 2 extra 330W AC Adapters; Auto-switching; 100-250V
      - 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; w/ DC cable
      Carrying Case
      - None - Choose from the options below
      - Targus Trademark Notepac Plus Case 16-in, Black (CTM400); internal: 14.5x2x11.75in
      - TARGUS 16-inch Sport Backpack; Heavy-Duty Fabrics with Nylon Webbing Reinforcement; TCG650
      - 17.3-inch Sport Backpack; Black; Targus Voyager TSB953GL
      - EVERKI ContemPRO; XXL Backpack for up to 18.4-inch laptops; EKP117B; 530x420x220mm; 42l
      - 17-18-inch (43.1-45.7cm); Black; Clamshell; Targus CNXL18 Laptop Pro Case
      - 17-inch Rolling Travel Case; Black Nylon; Exterior 457x381x254mm / 18.28x15.24x10.16inch; Targus TCG717
      Choose Your Warranty Plan
      - 1 Year Return to Factory Depot with 1 Year of Tech Support
      - 2 Years Return to Factory Depot with 2 Years of Tech Support
      - 3 Years Return to Factory Depot with 3 Years of Tech Support

    Options
      Extra Thermal Pads for M.2; VRAM; RAM
      - None - Choose from the options below:
      - Set of M.2 SSD Thermal pads 45x19x8mm for Tornado F5/F7
      Graphics Tablet / Stylus
      - None, Choose from the options below
      - Wacom Intuos Pro;Small; 10.6x6.7in (active 6.3x3.9in); Pen Tablet; PTH460K0A
      - Wacom Intuos Pro - Medium; 13.2x8.5in (active 8.7x5.8in); Pen Tablet; PTH660
      - Wacom Intuos Pro - Large; 16.8x11.2in (active 12.1x8.4in); Pen Tablet; PTH860

    Accessories
      Docking Stations, Hubs and Port Replicators
      - None - Choose from the options below
      - USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz
      - Universal USB-C DV4K Docking Station; w/ 65W AC Adapter; Black; Targus DOCK310USZ
      Car Adapters and Inverters
      - None - Choose from the options below
      - 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs
      Cables, Converters and Adapters
      - None - Choose from the options below:
      - 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS
      - 1pc DisplayPort to DVi-I Converter Cable for DP port and/or Matrox DH2G or TH2G DP Edition
      - 2pcs DisplayPort to DVi-I Converter Cables for Matrox TH2G or DH2G DP Edition
      - 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10
      Cables/Adapters for External Monitors; DP; mDP; HDMI; DVI
      - None - choose from the options below:
      - MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID
      - 10ft (3m) MiniDP to DP Cable; M/M; MDP2DPMM10
      - 6-inch MiniDP to DP cable; M/F; MDP2DPMF6IN
      - HDMI or DVI to DP Active Converter (converts HDMI, DVI or Mini DVI input into a DP output); HDMI2DP
      Security Cables and Security Devices
      - None - Choose from the options below
      - Targus - Defcon CL Cable PA410C
      - Targus Defcon 1 Alarm Device PPA400C
