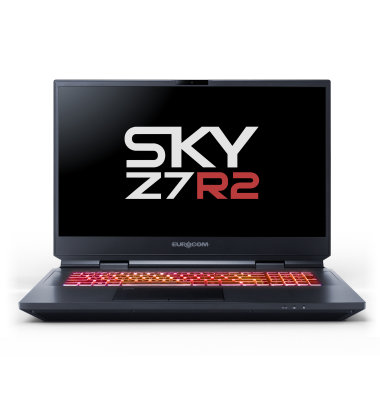

EUROCOM Sky Z7 R2 Server
Choice of 17.3in FHD @144Hz, QHD @165Hz or UHD @60Hz eDP LCD panels

EUROCOM Sky Z7 R2 Mobile Server is powered by Intel Z590 PCIe 4.0 chipset, LGA1200 socket 10 cores/ 20threads based CPUs and supports up to 128GB of DDR4-3600 memory. It comes with 4x M.2 NVMe physical slots for up to 32TB of SSD storage in RAID 0/1/5.

  • Chipset: Intel Z590 PCIe 4.0 architecture
  • Processor: socketed desktop LGA1200 CPU, up to Intel i9-10900K (10C/20T) / i9-11900K (8C/16T)
  • Memory: up to 128GB; DDR4 up to 3600; four 260-pin, 1.2V, SODIMM sockets
  • GPU Technology: NVIDIA GeForce RTX 3080, RTX 3070 and 3060; MXM 3.1 module
  • Storage: Up to 32TB SSD; four physical drives; three M.2 2280 NVMe PCIe 3.0 x4; one slot is PCIe 4.0
  • Communications: 2.5Gigabit LAN RJ-45 port Killer E3000; supports Killer DoubleShot Pro (w/ Killer WLAN)
  • Keyboard: RGB Keyboard with individual key illumination; N-Key Rollover & Anti-Ghosting; Microsoft Precision Touchpad with multi-gesture two buttons
  • Loaded with Security: TPM 2.0; Fingerprint scanner; Kensington lock
  • Audio System: S/PDIF Output (Optical); Creative Super X-Fi Ultra DSP chip; Creative Sound Blaster Atlas; ESS SABRE HiFi DAC for high resolution headphone output
  • Ports: 2x Thunderbolt 4.0; type C (requires PCIe 4.0 based CPU such as 11900K); 1x USB-C 3.2 Gen2;
    3 x USB-A 3.2 Gen2; 2x miniDP 1.4; 1x HDMI 2.0 output (with HDCP); 1x 2-in-1 Audio jack (Headphone/Microphone); 1x 2-in-1 Audio jack (Microphone/SPDIF Optical output); 1x RJ-45 LAN; 2x DC-in
  • Weight and Dimensions: Weight- 3.8 kg/8.36 lbs; Thickness- 1.76”/44 mm; WxDxH- 399mm x 319mm x 44mm/15.96” x 12.76” x 1.76”
  • CustomizeSpecificationsImagesBrochureBenchmarksPrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price List

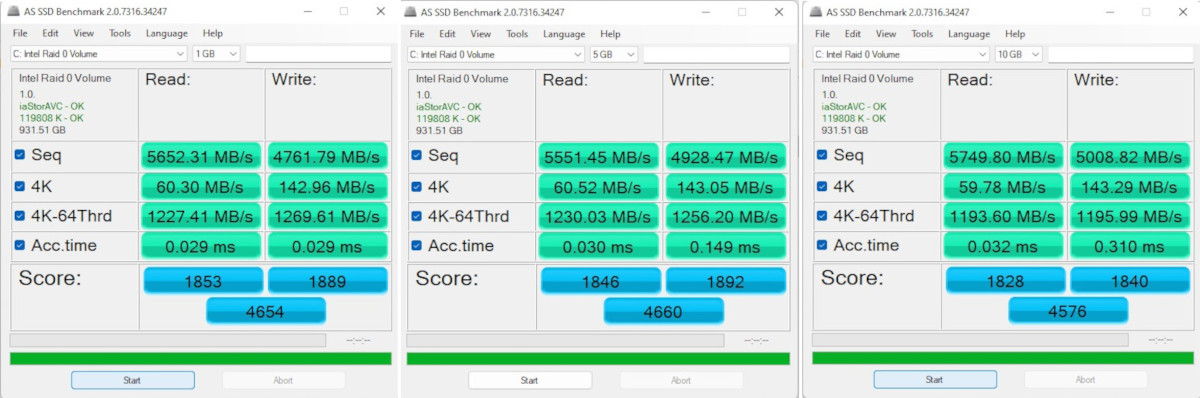

    EUROCOM Sky Z7 R2; RAID 0 Performance
    Jul 10, 2023
    Category: Storage
    Computer: EUROCOM Sky Z7 R2
    CPU: Intel Core i9-11900KF (Rocket Lake-S, B0)
    3500 MHz (35.00x100.0) @ 1296 MHz (13.00x99.8)
    Motherboard: EUROCOM X170KM-G
    BIOS: 1.07.08RTR2-G2, 03/04/2022
    Chipset: Intel Z590 (Rocket Lake PCH-H)
    Memory: 131072 MBytes @ 1463 MHz, 21-21-21-47
    - 32768 MB PC25600 DDR4 SDRAM - Crucial Technology CT32G4SFD832A.C16FF
    - 32768 MB PC25600 DDR4 SDRAM - Crucial Technology CT32G4SFD832A.C16FF
    - 32768 MB PC25600 DDR4 SDRAM - Crucial Technology CT32G4SFD832A.C16FF
    - 32768 MB PC25600 DDR4 SDRAM - Crucial Technology CT32G4SFD832A.C16FF
    Graphics: NVIDIA GeForce RTX 3080 Laptop (GA104M)
    NVIDIA GeForce RTX 3080 Laptop, 16384 MB GDDR6 SDRAM
    Drive: Samsung SSD 980 PRO 500GB, 488.4 GB, NVMe
    Drive: Samsung SSD 980 PRO 500GB, 488.4 GB, NVMe
    Sound: Intel Tiger Lake PCH-H - cAVS (Audio, Voice, Speech) [B1]
    Sound: NVIDIA GA104 - High Definition Audio Controller
    Network: Intel Tiger Lake PCH-H - CNVi: Wi-Fi [B1]
    Network: RealTek Semiconductor/Killer E3000 2.5 Gigabit Ethernet Controller
    OS: Microsoft Windows 11 Professional (x64) Build 22000.2176 (21H2)

    Monitor Name: LG Philips Model: LGD065B]
    Monitor Name (Manuf): LP173WFG-SPB3

    Name NVIDIA GeForce RTX 3080 Laptop GPU
    PNP Device ID PCI\VEN_10DE&DEV_24DC&SUBSYS_77151558&REV_A1\4&3B79C62&0&0008
    Adapter Type NVIDIA GeForce RTX 3080 Laptop GPU, NVIDIA compatible
    Adapter Description NVIDIA GeForce RTX 3080 Laptop GPU
    Adapter RAM (1,048,576) bytes
    Driver Version 31.0.15.3640
