CLEVO P775DM3 / SAGER NP9172 / ORIGIN PC EON17-X
17.3-inch; FHD (1920x1080) 60Hz and 120Hz or 4K UltraHD 60Hz

CLEVO P775DM3 / SAGER NP9778 (Late 2015) 17.3-inch FHD 1920-by-1080 with Glossy (Glare) or Matte (Non-Glare); LED Backlit; eDP


  • Graphics: Upgradeable MXM 3.0; Single Desktop GPU
  • Processor: socket based Skylake-S Intel CPU (up to i7-6700K)
  • AC Adapter: 330W standard for Desktop GPUs; 330W x 2 (660 Watts)is avaialble
  • VGA Heatsink: standard heatsink is required for Desktop GPUs
  • O/S Supported: Windows 8x and 10
  • BIOS Required: 0506/0503
  • 10 Series cards not supported using Linux at this time
    		•
    SpecificationsImagesVideosComponentsFAQsUpgradeUpgrade Price List
    Currency:

    Base Configuration
      Services: UNLOCKED BIOS Update
      - P775DM3 Unlocked BIOS  [$120]
      Services: Standard BIOS Update
      - Standard BIOS update service  [$99]
      Services: Support Consultation w/ Technician
      - Remote Teamviewer Support Session w/ Technician  [$149]
      - Support Consultation Session w/ Technician  [$89]
      Services: GPU Upgrade Full Service
      - GPU Upgrade Service; Includes shipping 2-ways, installation of GPU, Drivers, BIOS, Heatsink mods if required; Canada/US only  [$287]
      Primary GPU-1 Upgrade ** GPU Heatsink not included **
      - 6GB GDDR5; NVIDIA GTX 1060; 1280 CUDA; N17E-G1; 100x124mm; MXM 3.1 w/ power cable, X-bracket, screws, thermal pads, ICD7  [$636]
      - 8GB GDDR5; NVidia GTX 1070; 2048 CUDA; N17E-G2; 100x124mm; MXM 3.1; w/ power cable, X-bracket, screws, thermal pads, ICD7  [$784]
      - NVIDIA GeForce GTX 1080; 8GB GDDR5X; 2560 CUDA; N17E-G3; MXM 3.1  [$959]
      Extra X-bracket / GPU Supporter

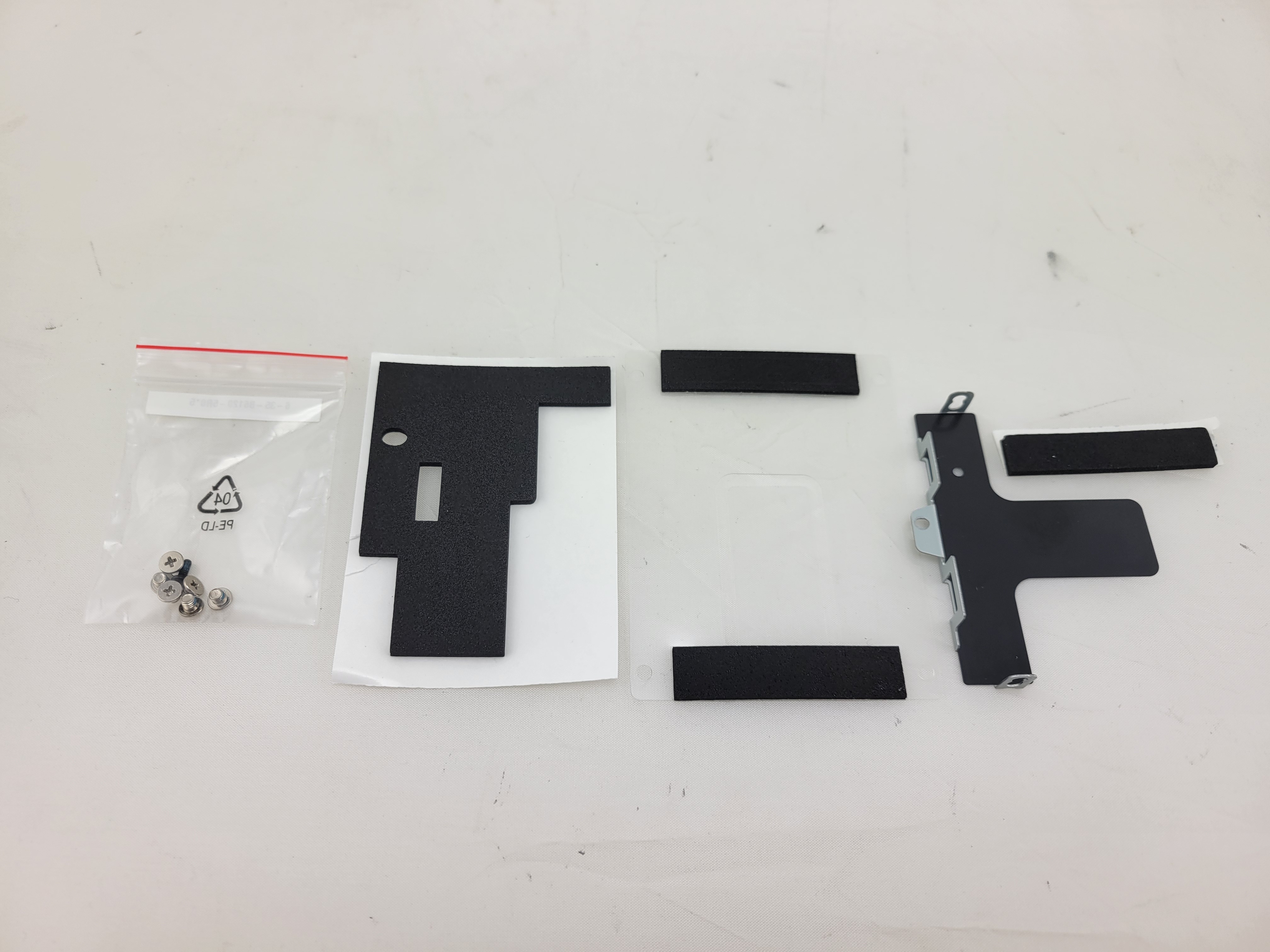

      - GPU Spreader / X-Bracket for MXM 3.0b/3.1 NVIDIA GTX and Quadro w/ screws  [$55]
      GPU-1 Power Cable (Primary)
      - P7x DM2/TM VGA Power Cable - Primary card 110mm p/n - 43-P7750-210-1  [$55]
      GPU-1 Heatsink (Primary)
      - P770xx Single CPU+GPU Heatsink; 31-P75D3100  [$199]
      Primary GPU / VGA Fan
      - P775DM2/DM3 CPU/GPU FAN; 31-P75D3-202  [$79]
      Motherboard
      - P775DM3 / NP9172 Motherboard  [$475]
      Power Switch Board
      - Power Switch Board; w/o cable; Model Specific  [$95]
      CMOS Battery replacement
      - Replacement CMOS Battery w/ Cable  [$63]
      CPU Heatsink
      - CPU Heatsink - Clevo Model Specific  [$162]
      CPU Fan
      - P775DM3; CPU Fan; 31-P75D3-202  [$79]
      Extra Thermal Pads
      - Set of thermal pads for NVIDIA desktop GPUs  [$39]
      Thermal Paste for GPU/CPU
      - IC Diamond Thermal Paste ICD7; 1 Tube; 1.5grams  [$20]
      LCD Cables
      - P775DM3 for FHD 60Hz LCD; 43-P7751-010-1L  [$95]
      - P775TM1/DM3/DM LCD cable; eDP 40pin; for FHD 144Hz and QHD 120Hz; P/N: 43-P7751-221-1N   [$95]
      - P775TM1/DM3/DM LCD cable; eDP 40pin; for 120Hz FHD and UHD 60Hz; P/N: 43-P7751-020-1N  [$95]
      - P775TM1/DM3/DM LCD cable; eDP 30pin; for FHD 60Hz; P/N: 43-P7751-010-1N  [$95]
      LCD Panels
      - 17.3in; FHD 60Hz; MATTE; eDP 30pin; LP173WF4 SPD5  [$319]
      - 17.3in; UHD 3840x2160; 60Hz; Matte; eDP; Adobe RBG 100%; AUO B173ZAN01.0  [$559]
      - 17.3in; QHD 2560x1440; 120Hz; Matte; eDP; AUO B173QTN01.0   [$503]
      - 17.3in; FHD 144Hz; Matte; eDP; AUO B173HAN03.1  [$399]
      Back LCD Cover
      - Back Cover Assembly (17.3 inch models)  [$168]
      Front Cover
      - Front Cover (17.3-inch models)  [$72]
      Top Case
      - Top Case - 17.3 inch - Model Specific  [$299]
      Hinge Left Side
      - P775xx Left Side LCD Hinge for UHD LCD - P/N: 33-P7751-2L0-1  [$55]
      - P775xx Left Side Hinge for FHD/QHD LCD - P/N 33-P7751-2L0  [$55]
      Hinge Right Side
      - CLEVO P775xx Right Side Hinge UHD LCD;33-P7751-0R2 -1  [$63]
      - CLEVO P775xx Right Side Hinge 2K/3K LCD; 33-P7751-0R2  [$63]
      Bottom Case
      - Bottom Case - 17.3 inch - Model Specific  [$187]
      Bottom Case Screws - 1 Set
      - Bottom Case Screws - 1 Set - Model Specific  [$39]
      Keyboard (internal)
      - Backlit; English; USA/Canada; QWERTY  [$134]
      - Backlit; Alemán / German; QWERTZ  [$134]
      - Backlit; Español / Spanish; QWERTY  [$134]
      - Backlit; Français / French; AZERTY  [$134]
      - Backlit; Italiana / Italian; QWERTY  [$134]
      - Backlit; Norske / Norwegian; QWERTY  [$134]
      - Backlit; Português / Portugese; QWERTY  [$134]
      - Backlit; Svenska / Swedish; QWERTY  [$134]
      - Backlit; Swiss German; QWERTZ  [$134]
      - Backlit; UK English; QWERTY  [$134]
      - Backlit; China; QWERTY  [$134]

    Options
      Extra SSD/HDD Bracket(s) & Cables
      - P750xx/P775xx/P770xx 1st HDD/SSD bracket for 9.5mm HDD/SSD w/ screws ; 79-P775DM2J-010   [$124]
      - P750xx/P775xx/P770xx 2st HDD/SSD Bracket for 9.5mm HDD/SSD w/ screws ; 79-P775DM2J-030  [$124]

    Accessories
      AC Adapter
      - 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; w/ DC cable   [$398]
      - 330W AC Adapter; 100-240V; 50-60Hz; DC 19.5V @ 16.9A; 4pin round plug  [$183]
      - Converter Box for 2x 230W/280W/330W AC Adapters  [$104]
      - 660W; 2x 330W AC Adapters; Auto-switching;100-240V w/Converter Box   [$399]
      Power Cord
      - USA/CANADA  [$7]
      - EUROPE  [$7]
      - UK  [$7]
      - AUSTRALIA  [$7]
      - SOUTH AFRICA   [$7]
      Battery
      - Battery Pack; Li-Ion - 8 Cells  [$143]

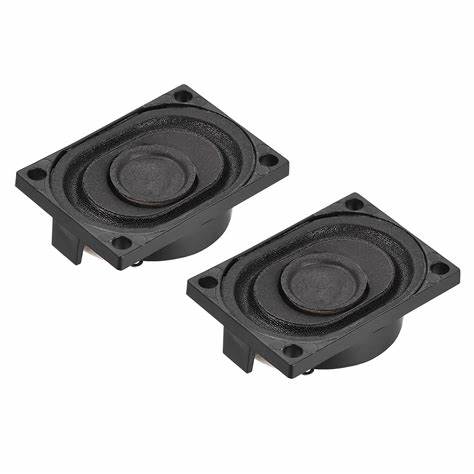

      Laptop Speakers - Right and Left
      - CLEVO P750xx /P775xx /P870xx Internal Speakers - Right and Left - P/N: 23-5P775-2S0  [$76]
      Power Inverter
      - 300W Portable DC-to-AC Power Inverter; 2 AC Outlets (US); Belkin F5C400-300W; US Edition  [$95]
