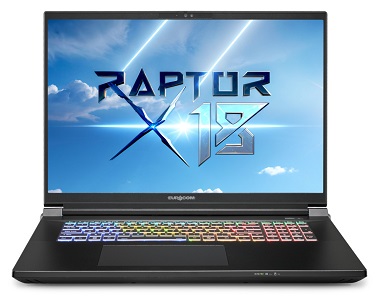

EUROCOM Raptor X18 Server Edition

ConfigureSpecsUpgradeComponentsImagesManualDrivers

18in 240Hz QHD 2560-by-1600 or 200Hz UHD 3840-by-2400

EUROCOM Raptor X18 is powered by Intel Core Ultra 9 Processor 275HX 24C/24T Processor with 36M cache and NVIDIA GeForce RTX 5090 24GB DDR7 with Blackwell 328 Tensor AI cores architecture and . It supports up to 256GB of DDR5 memory, up to 32TB of NVME SSD storage in RAID 0/1/5, two LAN ports and two additional LAN ports via TB5 ports.

18in 240Hz QHD 2560-by-1600 or 200Hz UHD 3840-by-2400 pixels
  • Mechanical: Aluminium Magnesium Alloy (5052); Bottom case, Top case and Back cover.
  • Chipset: Intel Arrow Lake HX platform; Intel HM870 Express Chipset
  • Processor: Intel Core Ultra 9 Processor 275HX; 24cores / 24threads; 36M cache; on-board; CPU and RAM overclocking supported.
  • GPU Technology: NVIDIA GeForce RTX 5090 (9728 CUDA/24GB GDDR7/328 Tensor AI cores); RTX 5080 (7424 CUDA/16GB DGDR7/240 Tensor AI Cores); powered by the NVIDIA Blackwell architecture; NVIDIA Advanced Optimus Dynamic Display Switching Mode; NVIDIA Surround View via 1x HDMI and 2x Thunderbolt 5; supports 4 active displays
  • Storage: Up to 32TB SSD; M.2 2280; NVMe; 4 physical SSDs (3x PCIe 4.0 x4; 1x PCIe 5.0)
  • Memory: up to 256GB; DDR5 4800/5200/5600; four 262-pin, SODIMM sockets
  • Card Reader: built in MicroSD Card Reader
  • Choice of Operating Systems: Microsoft Windows 11; Microsoft Server 2025; Linux Ubuntu
  • Webcam: 5M Hello Camera w/ shutter w/ face recognition (can be removed for security)
  • LAN: two 2.5GbE Intel/Killer E3100X; RJ-45 on-board; extra 2x LAN ports optional via 2x Thunderbolt 5 ports
  • Keyboard: RGB Keyboard with individual key illumination; N-Key Rollover & Anti-Ghosting; Microsoft Precision Touchpad with multi-gesture two buttons
  • Security: TPM 2.0; Kensington lock; BIOS password; webcam/mic/WLAN/BT can be physically removed
  • Sound System: High Definition audio interface; Built-in Array Microphone; Built-in two 1W Tweeter speakers; Built-in two 2W Mid-range speakers; Built-in one 4W Subwoofer speaker; Sound Blaster Studio Pro 2
  • 9 Ports: 2x Thunderbolt 5.0 (type C) from dGPU; 2x USB 3.2 Gen2 (type A); 1x HDMI 2.0 out with HDCP (from dGPU); 1x 2-in-1 Audio jack (Headphone/Microphone); 2x RJ-45 LAN; 1x DC-in
  • Weight/Dimensions: 3.6 kg/7.9 lbs; Thickness- 1.29”/32.8 mm; WxDxH- 401mm x 320mm x 32.8mm/15.8” x 12.6” x 1.29”
    		•
    Launch Date:Dec 10, 2025
    Special Feature(s):Intel Arrow Lake HX platform; Intel Core Ultra 9, 275HX 24C/24T/36M cache; NVIDIA GeForce RTX 5090 (24GB DDR7); Thunderbolt 5.0; 32TB NVMe RAID 0/1/5; 256GB DDR5
    Main Chipset:Intel HM870 Express Chipset
    Processor:Intel Core Ultra 9, 275HX 24C/24T/36M cache
    Video / GPU:- NVIDIA GeForce RTX 5090 (Blackwell 2.0); 24GB GDDR7; 10496 CUDA/328 Tensor cores
    - NVIDIA GeForce RTX 5080 (Blackwell 2.0); 16GB GDDR7; 7680 CUDA/240 Tensor cores
    - NVIDIA Advanced Optimus Dynamic Display Switching Mode
    - NVIDIA Surround View via 1x HDMI and 2x Thunderbolt 5.0 ports
    - Supports 4 active displays
    Built-in PC Camera:Windows 5.0 FHD Hello Camera with Face Recognition Support
    LCD Size:18in / 45.72cm
    LCD Specifications:18in QHD 240Hz 2560x1600, UHD 200Hz; 3840x2400; 16:10; 100% DCI-P3; eDP
    Memory:Four 262-pin; DDR5; SODIMM sockets; dual channel
    DDR5-5600/5200/4800; up to 256GB
    Total Storage:4x M.2 2280 NVMe slots for SSDs (3x PCIe 4.0 x4; 1x PCIe 5.0 x4)
    RAID 0/1/5
    Card Reader:1x microSD Card Reader; supports microSD, microSDHC and microSDXC
    Audio Architecture:High Definition audio interface
    Built-in Array Microphone
    Built-in two 1W Tweeter speakers
    Built-in two 2W Mid-range speakers
    Built-in one 4W Subwoofer speaker
    Sound Blaster Studio Pro 2
    LAN/WLAN/Bluetooth:- Two 2.5 Gigabit Ethernet Intel/Killer E3100X; on-board; 2x RJ-45
    - WLAN / Bluetooth; via M.2 2230 slot
    Security:Kensington Lock
    TPM 2.0 on-board
    BIOS Password
    Internal cards / # of slots/Type:5x M.2 slots
    -1x: for WLAN + Bluetooth M.2 2230; PCIe
    -4x: for NVMe SSD; 4x M.2 2280 (1x PCIe 5.0 + 3x PCIe 4.0)
    I/O Ports:*** Total 9 I/O Ports ***
    2 x USB 3.2 Gen2 ports (type A; 1x powered AC/DC)
    1 x Thunderbolt 5 Type C with Power Delivery DC-in (from dGPU)
    1 x Thunderbolt 5 Type C (from dGPU)
    1 x HDMI 2.0 output(with HDCP (from dGPU
    1 x 2-in-1 Audio jack (Headphone/Microphone)
    2x RJ45 LAN ports
    1x DC-in
    Internal Keyboard:- Built in Secure Pad with Microsoft PTP; multi-gesture and scrolling functionality
    - Full size and colour illuminated LED "per key" keyboard with numeric pad
    AC Adapter:330W; 100-240V 50-60Hz Auto-switching; 1.25lbs/0.58kg; 6.5x3x1in/165x75x25mm
    optional 780W for Extreme Performance; 3lbs/1.3kg; 12.8x4.3x1.6in/325x110x40mm
    Battery:8cells; Polymer; 98Wh
    Weight:3.6kg / 7.9lbs
    Dimensions WxDxH:401x320x32.8mm / 15.83x12.6x1.29n
    Thickness:32.8mm/1.29in
