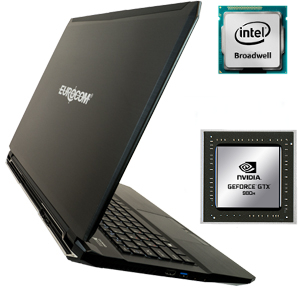

EUROCOM M5 Pro R2
Beautiful 15.6-inch 4K QFHD IPS 3840-by-2160, 3K WQHD+ IPS 2880-by-1620 or 2K FHD IPS 1920-by-1080 pixels; 60Hz; eDP interface; LED Backlit; Retina

  • Processor: on-board; Intel Core i7-570HQ (Broadwell); 6M Cache
  • VGA Technology: on-board; NVIDIA GeForce GTX 980M (4GB DDR5) or GTX 970M (3GB DDR5)
  • Mechanical (Frame): Aluminium Alloy (back cover and bottom case) combined with Heavy Duty ABS Plastic (front cover and top case)
  • Cooling: High performance, high quality copper VGA and CPU heatsinks to keep your system running cool.
  • Memory: Four 204-pin SODIMM sockets; DDR3L-1600 or 1866; 1.35V; up to 32GB
  • Storage: up to 5TB of storage with 4 physical drives: 2x M.2 2280 SSD SATA3 6Gb/s (or 1x M.2 2280 PCIe 2x/4x SSD and 1x M.2 SATA3 SSD) and 2x HDD/SSD SATA3 6Gb/s and RAID 0/1
  • Card Reader: 6-in-1: MMC/RSMMC/SD/mini SD/SDHC/SDXC; Push-Push
  • Keyboard and Touchpad: Backlit full size keyboard with numeric pad; TouchPad with multi-gesture and scrolling; W/A/S/D Gaming key
  • Ports: 3 x USB 3.0 (1x powered USB port, AC/DC); 1 x eSATA/USB3.0 Combo port; 2 x mini Display Port 1.2 (up to 3840x2160 @60Hz); 1 x HDMI output (up to 4096x2304 @24Hz); 1 x Headphone; 1 x Microphone-in; 1 x S/PDIF (digital); 1 x RJ-45 LAN; 1 x DC-in
  • Display Support: Supports up to 3 active internal and/or external displays
  • Operating Systems: Windows 10, 8.1 and 7; Linux Ubuntu
  • Security: Kensington Lock and Embedded TPM 2.0
  • Battery: 4cells Polymer; 60WH; up to 200 minutes in UMA mode
  • Weight: M5 Pro (15.6") 2.6kg / 5.72lbs; M7 Pro (17.3") 3.2kg / 7.04lbs w/ battery
  • Dimensions: WxDxH M5 Pro R2 (GTX 970M): 385x271x25mm / 15.16x10.66x0.99-inch; M5 Pro R2 (GTX 980M): 385x271x28.8mm / 15.16x10.66x1.13-inch
  • CustomizeSpecificationsImagesVideosBrochurePrice ListComponentsUser ManualFAQsUpgradeUpgrade Price List
    Launch Date:September 15, 2015
    Special Feature(s):4K Display; QFHD+ (3840x2160)
    Aluminium Alloy Body
    Three M.2 card slots (1x M.2 2230 + 2x M.2 2280)
    Main Chipset:Intel HM87 Express Chipset
    Processor:on-board (SMT)
    Intel Mobile i7-5700HQ (Broadwell)
    Video / GPU:GPU-onboard (SMT)
    NVDIA GeForce GTX 980M (4GB DDR5) or GTX 970M (3GB DDR5)
    and Intel HD Graphics Iris 5600 (CPU based)
    Microsoft Hybrid Graphics
    NVIDIA Optimus Graphics
    Built-in PC Camera:Built-in 2M FHD Webcam
    LCD Specifications:15.6" (39.62cm)LED backlit; eDP
    IPS FHD (1920x1080 @60Hz); QFHD+ (3840x2160 @60Hz) or WQHD+ (2880x1620 @60Hz)
    Supports up to 3 active internal and/or external displays
    Memory:Four 204-pin SODIMM sockets
    DDR3L-1600 or 1866; 1.35V
    up to 32GB
    Total Storage:up to 4 physical drives:
    - 2x M.2 2280 SSD SATA3 6Gb/s
    (or 1x M.2 2280 PCIe 2x/4x SSD and 1x M.2 SATA3 SSD) and
    - 2x HDD/SSD SATA3 6Gb/s (2x 7mm or 1x 9.5mm)
    - Intel Rapid Start Technology
    - Intel Smart Response Technology
    - RAID 0/1
    Optical Drive:External USB based
    DVD-RW or Blu Ray Burner
    Card Reader:6-in-1 Push-Push Card Reader
    MMC/RSMMC
    SD/mini SD/SDHC/SDXC
    Audio Architecture:High Definition Audio
    S/PDIF Digital Output
    Built in array microphone
    Built in two 2W speakers
    Sound Blaster X-FI MB3
    External 5.1CH output (headphone, mic and S/PDIF)
    ANSP 3D Sound Technology (headphone output)
    LAN/WLAN/Bluetooth:- 10/100/1000 LAN; Realtek RTL8111G
    - WLAN/Bluetooth via M.2 2230 slot
    - optional 3G/4G/LTE M.2 (15.6" models only)
    Security:Kensington Lock
    Fingerprint
    TPM 2.0 on-board (Infineon SLB9665 TCG)
    Internal cards / # of slots/Type:Three M.2 card slots
    -1st for WLAN Combo M.2 2230 Card with PCIe x2 and USB interface (A Key)
    -2nd for SSD M.2 2280 Card with SATA / PCIe x2/x4 interface (M Key)
    -3rd for SSD M.2 2280 Card with SATA interface (B key)
    I/O Ports:3 x USB 3.0 (1x powered USB port, AC/DC)
    1 x eSATA/USB3.0 Combo port
    2 x mini Display Port 1.2 (up to 3840x2160 @60Hz)
    1 x HDMI output (up to 4096x2304 @24Hz)
    1 x Headphone
    1 x Microphone-in
    1 x S/PDIF (digital)
    1 x RJ-45 LAN
    1 x DC-in
    Internal Keyboard:Backlit full size keyboard with separate numeric pad
    TouchPad with multi-gesture and scrolling (Synaptics TM-01474-003)
    W/A/S/D Gaming key
    AC Adapter:180W 100-240V 50-60Hz Auto-switching (worldwide)
    DC Output 19.5V, 9.2A
    Battery:4cells Polymer; 60WH
    up to 200 minutes in UMA mode
    Weight:2.6kg / 5.72lbs w/ battery
    Dimensions WxDxH:385x271x25mm / 15.16x10.66x0.99-inch (GTX 970M)
    385x271x28.8mm / 15.16x10.66x1.13-inch (GTX 980M)
    Shipping / Packaging L xWx H / N.W. / G.W.:22x13x5 inch / 11lbs; 550x330x120mm / 5kg
