CLEVO P170SM / SAGER NP8275/78
17.3-inch FHD 1920-by-1080 with Glossy (Glare) or Matte (Non-Glare); LED Backlit


CLEVO P170SM ( Mid 2014)

  • Graphics: Upgradeable MXM 3.0b; single GPU
  • Processor: socket based Haswell Intel CPU (up to Intel Extreme Edition i7-4940MX)
  • AC Adapter: 230W standard for 100W GPUs
  • VGA Heatsink: standard heatsink (100W)
  • O/S Supported: Windows 7 and 8x
  • BIOS Required:
  • GTX 1060/1070 has been tested and works. The 86mm x 105mm card required both the modded heatsink and a modded bottom case. Both are for sale below under "GPU-1 Heatsink (Primary) and "Bottom Case"
    		•
    ImagesVideosComponentsDriversFAQsUpgradeUpgrade Price List
    Base Configuration
      Services: UNLOCKED BIOS Update
      - Unlocked BIOS Update Service
      Services: GPU Upgrade Full Service
      - GPU Upgrade Service; Includes shipping 2-ways, installation of GPU, Drivers, BIOS, Heatsink mods if required; Canada/US only
      Primary GPU-1 Upgrade ** GPU Heatsink not included **
      - NVIDIA GeForce GTX 670MX; 3GB DDR5; MXM 3.0b; 75W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 680M; 4GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 770M; 3GB DDR5; MXM 3.0b; 75W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 870M; 6GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 880M; 8GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 980M; 8GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 970M; 6GB DDR5; MXM 3.0b; 80W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - 6GB GDDR5; NVIDIA GTX 1060; 1280 CUDA; N17E-G1; 82x105mm; MXM 3.1 w/ X-bracket, screws, thermal pads, ICD7
      - 4GB DDR5; AMD Radeon HD8970M; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - 4GB DDR5; AMD Radeon R9-M290X; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA 4GB GDDR5; NVIDIA Quadro K3100M (N15E-Q1); MXM 3.0b; 75W ; Upgrade Kit with X-bracker, screws, thermal pads and Paste
      - NVIDIA 8GB GDDR5; NVIDIA Quadro K5100M (N15E-Q5); MXM 3.0b; 100W; Upgrade Kit with X Bracket, screws, thermal pads and Paste
      - 2GB GDDR5; NVIDIA Quadro K3000M;75W;Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - 2GB GDDR5; NVIDIA Quadro K1100M (N15P-Q1); 384 CUDA;Open GL; MXM 3.0a; 45W;Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      Extra X-bracket / GPU Supporter
      - GPU Spreader / X-Bracket for MXM 3.0b AMD GPUs w/screws
      - GPU Spreader / X-Bracket for MXM 3.0b/3.1 NVIDIA GTX and Quadro w/ screws

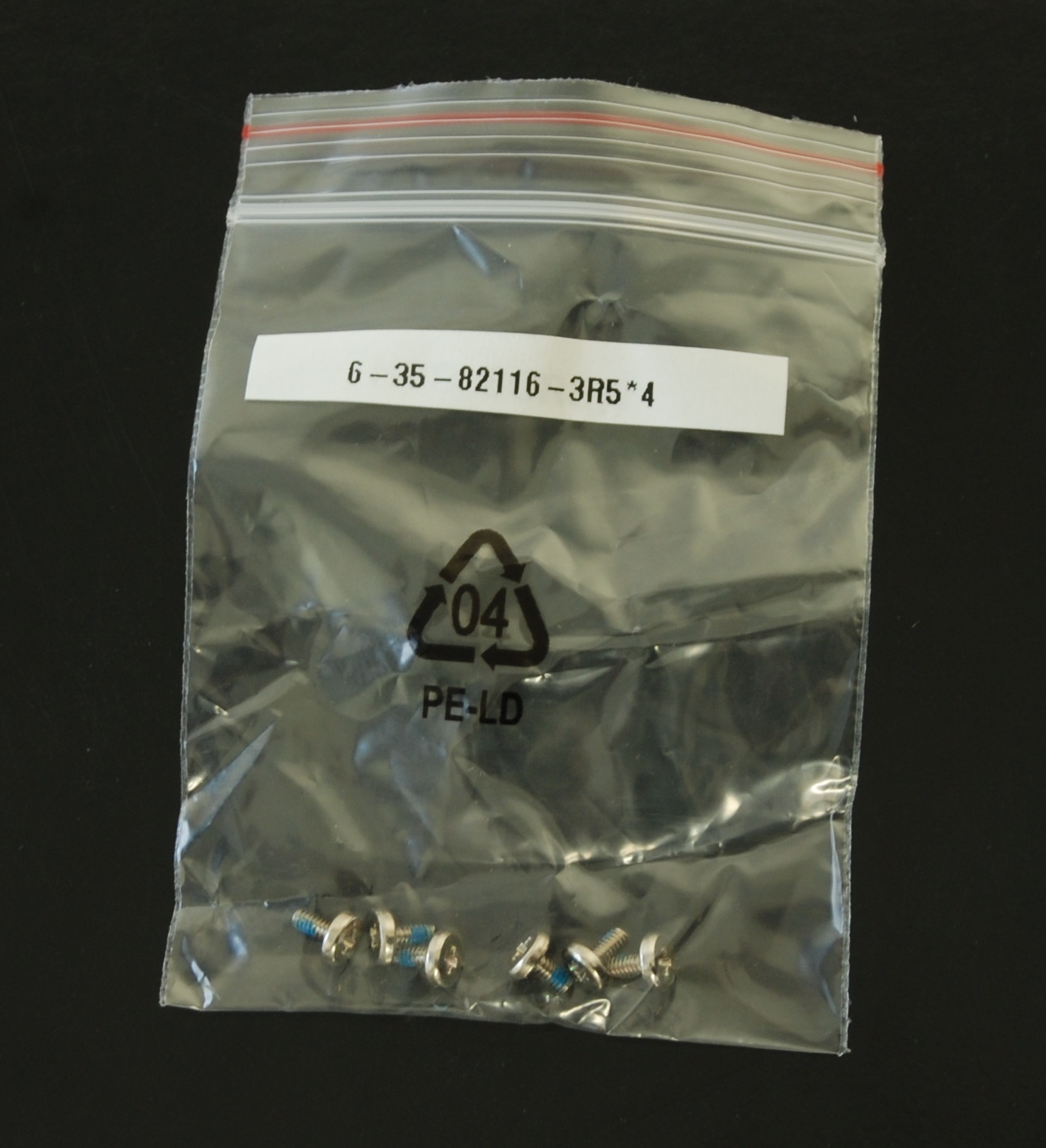

      Set of screws for X-Bracket/GPU Supporter
      - Set of screws for X-Bracket/GPU Supporter
      GPU-1 Heatsink (Primary)
      - CLEVO Primary Heatsink - Model Specific
      - P170xx Modified GPU heatsink for GTX 10** Video cards
      Primary GPU / VGA Fan
      - x7200/P1xxEM/SM/SMA GPU Fan; 31-X720S-101
      Motherboard
      - P170SM / SAGER NP8278 Motherboard
      Power Switch Board
      - Power Switch Board; w/o cable; Model Specific
      CMOS Battery replacement
      - Replacement CMOS Battery
      CPU / Processor
      - Intel Mobile Core i7-4940MX Extreme; 4C/8T; 22nm; FCPGA946; 57W
      Memory (RAM) Configuration
      - 32GB; 4x 8GB kit; DDR3-1600; 4x SODIMMs; 204-pin
      CPU Heatsink
      - CPU Heatsink - Clevo Model Specific
      CPU Fan
      - CPU Fan - CLEVO model specific

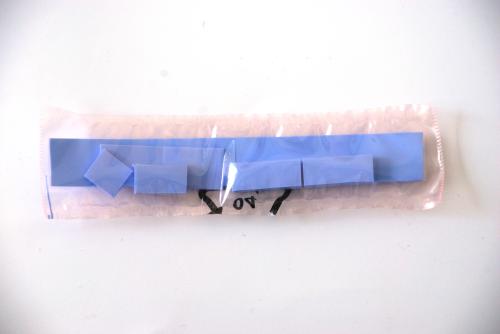

      Extra Thermal Pads
      - Set of thermal pads for NVIDIA based MXM3 GPUs
      - Set of thermal pads for AMD based MXM3 GPUs
      Thermal Paste for GPU/CPU
      - IC Diamond Thermal Paste ICD7; 1 Tube; 1.5grams
      LCD Cables
      - P17xSM/SMA LCD Cable; LVDS; 40pin - P/N: 43-P1701-011D
      LCD Panels
      - 17.3in; FHD; 60Hz; Matte; IPS; LVDS; Chimei N173HGE-L11
      - 17.3in; ; FHD 60Hz; Glossy (GT); 90% NTSC; AUO B173HW01 V.4; 500:1; LVDS
      Back LCD Cover
      - Back Cover Assembly (17.3 inch models)
      Front Cover
      - Front Cover (17.3-inch models)
      Top Case
      - Top Case - 17.3 inch - Model Specific
      Hinge Left Side
      - P170EM/SM Left Side Hinge - P/N: 6-33-P17E1-0L1
      Hinge Right Side
      - CLEVO P170EM/SM Right Side Hinge; 6-33-P17E1-0R1
      Bottom Case
      - Bottom Case - 17.3 inch - Model Specific
      - Clevo P17xxx Bottom case - Allows use of Nvidia GTX 1070 - 86mm x 105mm card
      CPU Cover
      - D900C/D900F CPU PLASTIC COVER; P/N 42-D90CS-102; THIS IS CPU COVER NOT THE BOTTOM CASE
      Bottom Case Screws - 1 Set
      - Bottom Case Screws - 1 Set - Model Specific

    Options
      WiFi Antenna
      - CLEVO P170SM WIFI Antenna - Long p/n - 23-7P170-031
      - CLEVO P170SM WIFI Antenna - Short p/n - 23-7P170-011
      - CLEVO P170SM WIFI Antenna -Set of two - Long p/n - 23-7P170-031 & Short 23-7P170-011

    Accessories
      AC Adapter
      - 180W Auto-Switching 100V-250V AC Adapter
      - 280W; 100-240V 50-60Hz Auto-switching (worldwide)
      Power Cord
      - USA/CANADA
      - EUROPE
      - SOUTH AFRICA
      - AUSTRALIA
      Battery
      - Battery Pack; Li-Ion - 8 Cells
      Power Inverter
      - 300W Portable DC-to-AC Power Inverter; 2 AC Outlets (US); Belkin F5C400-300W; US Edition
