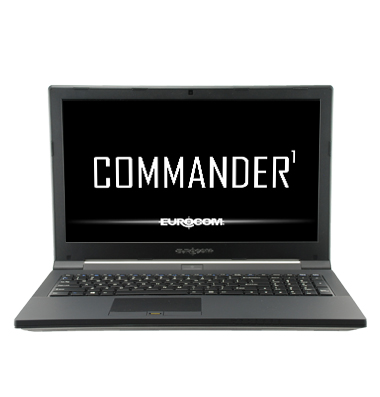

EUROCOM Commander
15.6in FHD 1920-by-1080 pixels; LCD can be open up to 180 degrees.

Designed for secure computing, connectivity and expandability! Equipped with Intel vPro technology, it comes standard with a built-in Smart Card Reader, TPM 2.0, Fingerprint Reader along with an Intel vPro 1Gigabit LAN, hot docking station port and Expresscard slot. It is pre-wired for LTE or UMTS/HSPA WAN computing too.

  • Chipset: Intel Q170; vPro Technology
  • LAN Adapter: 1GbE on-board (Intel I219); additional LAN ports are supported via ExpressCard slot
  • Processor: up to 2.9GHz 8MB cache; socket LGA1151; Intel i7-7700T, 6700T; i5-7600T, 6600T; i5-7500T, 6500T; 14nm; TDP 35W
  • Memory: up to 32GB; DDR3-1600, 1866, 2133; SODIMM; two 204-pin sockets
  • Video Controller: Intel HD Graphics 530 (6xxxT) or HD Graphics 630 (7xxxT)
  • Storage: up to 10TB of storage; three drives (9.5mm HDD/SSD + 7mm HDD/SSD via ODD bay + M.2 SSD)
  • Operating System: Microsoft: Windows 7, 10, Server 2012R2, 2016; Linux; VMware ESXI
  • Audio: Built in two 2W speakers; built in microphone; S/PDIF output
  • Keyboard: LED illuminated keyboard; built in touchpad with multi-gesture and scrolling function
  • I/O Ports: 3x USB 3.0 (1x powered USB); 1x USB 2.0; 1x HDMI out; 1x VGA; 1x 2-in-1 Audio Jack (Headphone / S/PDIF); 1x Mic; 1x RJ-45
  • Docking Station Port:optional hot docking station available
  • Expansion: built-in ExpressCard 34/54 slot
  • SmartCard Reader: built in SmartCard Reader (Alcor Micro AU9560-GBS-GR)
  • Card Reader: MMC/RSMMC/SD/mini SD/SHDC/SDXC
  • Communications: built in 1Gb LAN (Intel I219 vPro); M.2 WLAN; prewired for LTE or UMTS/HSPA M.2 WAN module
  • Power: 65W AC Adapter 100-250V; 6-cell 62WH Smart Li-Ion batteries (340 minutes)
  • Security: TPM 2.0; Kensington Lock; Fingerprint Reader
  • Dimensions and Weight: 382x259.5x32.95mm; 15.28x10.38x1.32-inch; 2.5kg/5.5lbs

    Docking Station:
  • Dimensions and Weight: 380x206x33mm/15.2x8.24x1.32-inch; 0.85kg/1.87lb
  • I/O Ports: 3x USB 2.0; 4x USB 3.0 (including 1x powered); 1x CRT; 1x DVI-D; 1x HDMI-out; 1x Headphone out; 1x Mic in; 1x S/PDIF; 1x RJ45/LAN; 1x RS232 (serial); 1x docking port; 1x DC-in, 1x Kensington Security Lock slot
  • Storage: ODD (DVD-RW or Blu Ray) or HDD/SSD
  • Power: external 90W AC Adapter provided
    		•

    CustomizeSpecificationsImagesVideosBrochureReviewsPrice ListComponentsUser ManualDriversFAQsUpgradeUpgrade Price List
    Base Configuration
      System and Display
      - EUROCOM Commander 1
      Choose your LCD Display
      - 15.6in (39.6cm); FHD 1920x1080; 60Hz; Matte; IPS; 700:1; NTSC 72%; eDP
      Security - ANTI SPYING Package
      - Choose: optional Factory ANTI SPYING package.
      - Physical Removal of internal Webcam and Microphone.
      - Physical Removal of internal Webcam, Microphone and WLAN/Bluetooth Module
      Display Calibration
      - Optional - choose from the options below:
      - Professional Display Calibration with .icc Profile Saved on USB Flash Key
      Processor / CPU
      - 3.3GHz (up to 3.9GHz) Intel Core i5-6600; 4C/4T; 6MB; 14nm; LGA1151; 65W
      - 2.9 GHz (up to 3.8GHz) Intel Core i7-7700T; 4C/8T; 8MB L3; 35W; 14nm; LGA1151; HD Graphics 630
      - 2.8GHz (up to 3.7GHz) Intel Core i5-7600T; 4C/4T; 6MB L3; 35W; 14nm; LGA1151; HD Graphics 630
      - 3.6GHz (up to 4.2GHz) Intel Core i7-7700; 4C/8T; 8MB L3; 14nm; LGA1151; 65W; Intel D Graphics 630
      CPU Heatsink - Thermal Paste
      - Standard Thermal Paste
      - IC Diamond 7 Carat Thermal Compound for Maximum Performance
      - Grizzly Kryonaut; Ultra High Performance Thermal Grease
      Memory (RAM) Configuration
      - 8GB; 1x 8GB; DDR3L-1600; PC3-12800; 204pin; Micron 1.35V - 1 SODIMM
      - 8GB; 1x 8GB; DDR3L-1866; CL13; PC3L-14900S; 204-pin; Micron; 1.35V-1.5V; 1 SODIMM
      - 8GB; 1x 8GB; DDR3L-2133; CL11; 204-pin; Kingston HyperX; 1.35V-1.5V; 1 SODIMM
      - 16GB; 1x 16GB; DDR3L-1600 PC-12800; 204pin; Micron; 1.35V - 1 SODIMM
      - 16GB; 2x 8GB; DDR3L-1600 PC-12800; 204pin; Micron; 1.35V - 2 SODIMMs
      - 16GB; 2x 8GB; DDR3L-1866; CL13; PC3L-14900S; 204-pin; Micron; 1.35V-1.5V; 2 SODIMMs
      - 16GB; 2x 8GB; DDR3L-2133; CL11; 204-pin; Kingston HyperX; 1.35V-1.5V; 2 SODIMMs
      - 32GB; 2x 16GB; DDR3L-1600 PC-12800; 204pin; Micron; 1.35V - 2 SODIMMs
      Operating System(s)
      - None - Choose from the options below for Pre-install or install your own
      - Microsoft Windows 7 Professional 64-bit; OEM; with DVD and USB key
      - Microsoft Windows 10 Home; 64-bit; OEM; USB key
      - Microsoft Windows 10 Professional; 64-bit; OEM; with DVD and USB key
      - Linux Ubuntu installed; LTS 18.04; USB key; check for H/W limitations when ordering
      - Microsoft Windows Server 2012 R2 x64 Standard; OEM Edition; w/ 5 CTL User CAL
      Keyboard (Language)
      - US English; QWERTY; Backlit
      Office/Business Productivity Software
      - None - Choose from the options below
      - Microsoft Office 2021 Home and Student Edition; OEM; MLK; US/Canada
      - Microsoft Office 2021 Home and Business Edition; OEM; MLK; US/Canada
      Internal M.2 SSD Storage
      - Choose your SSD M.2 type 2280 (80x22mm) from the options below:
      - 250GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 500GB; M.2 SAMSUNG 980 Pro; SSD; NVMe; R/W: up to 7000/5100MB/s
      - 500GB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 1TB; M.2 SAMSUNG 860 EVO; SSD; SATA3; R/W: 550/520 MB/s
      - 1TB SSD; SAMSUNG 980 Pro; PCIe 4.0 NVMe M.2 2280; R/W: up to 7000/5100 MB/s
      - 1TB; M.2; SSD; NVMe 1.4; PCIe 3.0 x4; R/W: 3500/3000 MB/s; SAMSUNG 980
      - 2TB SSD; SAMSUNG 980 Pro; PCIe 4.0 NVMe M.2 2280; R/W: up to 7000/5100 MB/s
      - 2TB; M.2 SAMSUNG 970 Evo; NVMe PCIe 3.0 x4; SSD; R/W: 3500/2500 MB/s
      - 4TB; NVMe PCIe 4.0; M.2; SSD; 22x80mm; Sabrent Rocket Q
      - 8TB; M.2 NVMe SSD; 22x80mm; Sabrent Rocket Q; 5.7g/2.4oz
      1st Drive: HDD, SSD or SSHD
      - 500GB; SSHD; SATA3; Seagate ST500LM000; 7mm; 2.5in
      - 1TB; SSHD; SATA3; 2.5in; 9.5mm; Seagate Barracuda ST1000LM014
      - 1TB; HDD; SATA3; 5400rpm; Seagate Barracuda ST1000LM048; 7mm; 2.5in
      - 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in
      - 1TB; 5400rpm; SATA3; Hitachi Travelstar Z5K1000; 7mm; 2.5in
      - 1TB;SSHD; SATA3; Seagate FireCuda ST1000LX015; 2.5in; 7mm
      - 2TB; HDD; SATA3; Seagate BarraCuda ST2000LM015; 2.5in 7mm
      - 120GB MLC SSD; Intel 530 series; SATA3 6Gb/s; 7mm
      - 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W 560/530 MB/s
      - 240GB MLC SSD; Intel 530 series; SATA3 (6Gb/s); 7mm
      - 256GB SSD; MLC; Micron/Crucial; M1100; SATA3 6Gb/s; 7mm
      - 480GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; R/W: 500/440 MB/s; 7mm 2.5-inch
      - 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s
      - 512GB SATA3 SSD; MLC; Micron M1100 SATA3 (6Gb/s); 7mm
      - 800GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; 7mm; R/W: 500/440 MB/s
      - 1TB SSD; SATA3; Micron 1100; 7mm; 2.5in
      - 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; MZ-77E1T0B/AM
      - 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 8TB SSD; Micron 5100 Enterprise; SATA3; R/W (MB/s): 540 / 520; 2.5in; 7mm
      - *** Without Hard Drive; with HDD bracket included ***
      2nd Drive: HDD, SSD or SSHD
      - 2nd HDD co-shared with Optical Drive; no internal ODD available if 2nd HDD selected; external ODD available
      - 500GB; SSHD; 64MB cache; SATA3 6Gb/s; Seagate ST500LM000; 7mm; 2.5in
      - 1TB; 7200rpm; SATA3; Seagate BarraCuda Pro; ST1000LM049; 7mm 2.5in
      - 1TB HDD; 5400rpm; SATA3; Hitachi Travelstar Z5K1000; 7mm; 2.5in
      - 1TB;SSHD; SATA3; Seagate FireCuda ST1000LX015; 7mm; 2.5in
      - 120GB MLC SSD; Intel 530 series; SATA3 6Gb/s; 7mm
      - 240GB MLC SSD; Intel 530 series; SATA3 (6Gb/s); 7mm
      - 250GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s
      - 256GB SSD; MLC; Micron M1100; SATA3 6Gb/s; 7mm; 2.5
      - 480GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; R/W: 500/440 MB/s; 7mm 2.5-inch
      - 500GB SSD; SATA3; 2.5in; 7mm; Samsung 870 EVO; R/W: 560/530 MB/s
      - 512GB SSD; MLC; Micron M1100; SATA3 (6Gb/s); 7mm
      - 800GB SSD; MLC; Intel DC S3510; SATA3 6Gb/s; 7mm; R/W: 500/440 MB/s
      - 1TB SSD; MLC; Micron 1100 TLC 3D NAND; SATA3 6Gb/s; 7mm; 2.5-inch
      - 1TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 1TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 2TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 2TB SSD; SATA3; 2.5in; 7mm; Samsung 860 Pro
      - 4TB SSD; Samsung 870 Evo; SATA3; 7mm; 2.5in; R/W: 560/530 MB/s
      - 8TB SSD; Micron 5100 Enterprise; SATA3 6Gb/s; R/W (MB/s): 540 / 520; 2.5inch; 7mm
      Optical Drive
      - None - Choose from the options below
      - 8x Multi DVD +-RW/-RAM Burner; Dual Layer; Tray Load; SATA; w/ Software
      - 6x Blu-Ray/DVD WRITER; Tray; SATA; BDXL; 100/128GB; Ultra Slim 9.5mm ; w/ software ( LG BU20N)
      External Optical Drive
      - None - Choose from the options below
      - External; 6x Blu Ray (BD-RW) Burner; Pioneer BDR-XD05B; USB 3.0
      - External; DVD-RW Burner; USB 2.0
      Internal Card Reader
      - 6-in-1 Card Reader; SD/MS/MMC/SM/CF/MicroDrive
      Biometric Device
      - Built-in Fingerprint Reader
      Embedded Security Chip
      - Embedded TPM 2.0 Security Chip for Data Encryption
      Built-in Smart Card Reader
      - Built-in Smart Card Reader
      ExpressCard Slot
      - Built-in ExpressCard/54 slot - Choose EC/34 or EC/54 Adapter
      - USB 3.0; 2 Ports; ExpressCard/34; StarTech ECUSB3S2
      - 2 extra LAN ports; Dual Port Gigabit Ethernet Adapter; ExpressCard/34; Realtek RTL8111E; EC2000S
      - Parallel; 1 Parallel Port ;ExpressCard/34; SPP/EPP/ECP; Startech EC1PEPS
      - Serial; 4 Serial Ports RS-232 16C950; ExpressCard; StartTech EC4S950
      - Serial; 1 Serial Port RS-232 16C950 ExpressCard; StartTech EC1S950
      - 2nd LAN; 1 Gigabit Ethernet; ExpressCard; StarTech EC1000BT
      - eSATA; 2 Ports; ExpressCard Adapter; StarTech ECESATA22
      - 2 Ports IEEE1394a; ExpressCard/34; up to 400Mbps; StarTech EC13942A2
      - 2 Ports IEEE1394b; Firewire-800; ExpressCard/34; up to 800Mbps; StarTech EC1394B2
      TV Tuner (Internal and/or External)
      - None - Choose from the options below
      - External USB 2.0 TV Tuner; KWORLD UB445 ATSC HYBRID w/REMOTE
      - External; USB 2.0; Hauppauge HVR-955Q; ATSC/NTSC/QAM TV Tuner; w/ Remote
      Wireless LAN
      - 2-in-1; 802.11b/g/n + Bluetooth 4.0; Intel Wireless-N 7260; up to 300Mbps; M.2 2230
      - 2-in-1: 802.11b/g/n WLAN + Bluetooth 4.0 Combo; M.2 2230; Realtek RTL8723BE
      - 2-in-1: 802.11ac WLAN+Bluetooth 5; Intel Wireless-AC 9260; M.2 2230; up to 1.73Gbps
      - 2-in-1: 802.11a/b/g/n/ac WLAN+Bluetooth 4.2; Intel Wireless-AC 8260; M.2 2230; up to 867Mbps; 2.4GHz/5GHz
      - 2-in-1: 802.11a/c WLAN + Bluetooth 4.0; Intel Wireless-AC 7265; M.2 2230
      - 2-in-1; 802.11a/b/g/n/ac WLAN + Bluetooth 4.1; Killer Wireless-AC 1535
      Built-in Web Camera
      - 2.0 Megapixels; FHD
      Standard Battery (internal)
      - 6-cells; Li-Ion battery; 11.1V; 62Wh
      - 9-cells; high capacity Li-Ion battery; 11.1V; 93Wh
      Choose Extra Battery
      - None - Choose from the options below
      - 6-cells; Li-Ion battery; 11.1V; 62Wh
      - 9-cells; high capacity Li-Ion battery; 11.1V; 93Wh
      Standard AC Adapter
      - 65W AC Adapter; 100-250V Auto-Switching
      - 120W AC Adapter; 100-240V Auto-Switching
      - 150W AC Adapter; 100-240V Auto-Switching
      - 200W AC Adapter; 100-240V; Auto-Switching (Worldwide)
      Standard Power Cord - included
      - USA / Canada
      - EUROPE
      - UK
      - SOUTH AFRICA
      - AUSTRALIA
      Extra Power Cord
      - None - Choose from the options below
      - 1 Extra; USA/CANADA
      - 2 Extra; US/CANADA
      - 1 Extra; AUSTRALIA
      - 2 Extra; AUSTRALIA
      - 2 Extra, EUROPE
      - 1 Extra; EUROPE
      - 1 Extra; SOUTH AFRICA
      - 2 Extra; SOUTH AFRICA
      - 2 Extra; UK
      - 1 Extra; UK
      Choose Extra AC Adapter
      - None - Choose from the options below
      - 65W AC Adapter; Auto-Switching 100-250V
      - 120W auto-switching AC Adapter
      - 150W auto-switching AC Adapter
      - 200W; Auto-switching 100V-250V; Worldwide
      Carrying Case
      - None - Choose from the options below
      - Targus Trademark Notepac Plus Case 16-in, Black (CTM400); internal: 14.5x2x11.75in
      - TARGUS 16-inch Sport Backpack; Heavy-Duty Fabrics with Nylon Webbing Reinforcement; TCG650
      - 17-18-inch (43.1-45.7cm); Black; Clamshell; Targus CNXL18 Laptop Pro Case
      - 17.3-inch Sport Backpack; Black; Targus Voyager TSB953GL
      Choose Your Warranty Plan
      - 1 Year Return to Factory Depot with 1 Year of Tech Support
      - 2 Years Return to Factory Depot with 2 Years of Tech Support
      - 3 Years Return to Factory Depot with 3 Years of Tech Support

    Options
      Graphics Tablet / Stylus
      - None, Choose from the options below
      - Wacom Intuos Pro;Small; 10.6x6.7in (active 6.3x3.9in); Pen Tablet; PTH460K0A
      - Wacom Intuos Pro - Medium; 13.2x8.5in (active 8.7x5.8in); Pen Tablet; PTH660
      - Wacom Intuos Pro - Large; 16.8x11.2in (active 12.1x8.4in); Pen Tablet; PTH860

    Accessories
      Extra Hard Drive Bracket(s)
      - None - Choose from options below
      - 2nd HDD Bracket via ODD Bay for 2.5-inch HDD/ODD; 9.5mm Height; SATA; w/o HDD
      External Hard Drive for Data Backup or Network Storage (NAS)
      - None - Choose from the options below
      - 2TB, NAS; Network Attached Storage; External 3.5-inch; WDH1NC20000N
      Docking Station
      - None - Choose from the list below
      - EUROCOM Commander Hot Docking; 380(W)x206(D)x33(H)mm; 0.85kg; 90W; with internal storage bay
      - Magma ExpressBox1; supports half-length PCI-E card; via ExpressCard installed inside the notebook; 60W
      - Magma ExpressBox1 EB1H with Intel E1G42ET Dual Port RJ-45 Ethernet 1Gigabit Server PCIe card; via ExpressCard; VMware ESXi 5.X compatible
      Docking Stations, Hubs and Port Replicators
      - None - Choose from the options below
      - USB 3.0 Hub; 4 Ports; Black Colour; Startech ST4300USB3; 55g/1.94oz
      Car Adapters and Inverters
      - None - Choose from the options below
      - 375W DC-to-AC Portable Power Inverter; 2 AC Outlets (US); TRIPP-LITE PV375; US Edition; 120V AC/60Hz; 12V DC; 2.2lbs
      Cables, Converters and Adapters
      - None - Choose from the options below:
      - 1 Port USB to Serial RS232 / DB9 Adapter Cable with Optical Isolation; FTDI - FT232RL; Startech ICUSB2321FIS
      - 10ft (3m) HDMI to DVI-D Cable M/M; HDMIDVIMM10
      - 1pc DisplayPort to DVi-I Converter Cable for DP port and/or Matrox DH2G or TH2G DP Edition
      - 2pcs DisplayPort to DVi-I Converter Cables for Matrox TH2G or DH2G DP Edition
      - 3pcs of DisplayPort to DVi-I Converter Cables for Matrox TH2G DP Edition
      Cables/Adapters for External Monitors; DP; mDP; HDMI; DVI
      - None - choose from the options below:
      - MiniDP to DVI Dual-Link Active Adapter – USB Powered; MDP2DVID
      - DP to DVI Video Adapter M/M; Startech DP2DVIDAP
      Security Cables and Security Devices
      - None - Choose from the options below
      - Targus - Defcon CL Cable PA410C
      - Targus Defcon 1 Alarm Device PPA400C
