CLEVO P157SM-A / SAGER NP8258 / ORIGIN PC EON15s
15.6-inch FHD 1920-by-1080 pixels; Matte (Non-Glare) or Glossy (Glare); LED Backlit Display; optional 95% Gamut/NTSC


CLEVO P157SM-A / SAGER NP8258 (Late 2014)
  • Graphics: Upgradeable MXM 3.0b; single GPU
  • Processor: 4th Generation Intel Mobile i7 Core (up to i7-4940MX Extreme)
  • AC Adapter: 180W standard for 100W GPUs
  • VGA Heatsink: standard heatsink (100W)
  • O/S Supported: Windows 7 and 8x and 10
  • BIOS Required:
  • To use the 10 series cards your must be running Windows 10 FULL UEFI mode, have unlocked BIOS and use only our Custom written drivers.
  • GTX 1060 can use the original equipment heatsink with no modifications but you will need to re-position the thermal pads to match the new card layout.
    		•
    ImagesVideosComponentsDriversFAQsUpgradeUpgrade Price List
    Base Configuration
      Services: UNLOCKED BIOS Update
      - Unlocked BIOS for P1xxSM-A version 1.05.01EU
      Services: Standard BIOS Update
      - Standard BIOS update service
      Services: Customized Drivers
      - Customized GPU Drivers H/W ID specific
      Services: Support Consultation w/ Technician
      - Support Consultation Session w/ Technician
      - Remote Teamviewer Support Session w/ Technician
      Services: GPU Upgrade Full Service
      - GPU Upgrade Service; Includes shipping 2-ways, installation of GPU, Drivers, BIOS, Heatsink mods if required; Canada/US only
      Primary GPU-1 Upgrade ** GPU Heatsink not included **
      - NVIDIA GeForce GTX 980M; 8GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 970M; 6GB DDR5; MXM 3.0b; 80W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 880M; 8GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 870M; 6GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - 4GB DDR5; AMD Radeon R9-M290X; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - 6GB GDDR5; NVIDIA GTX 1060; 1280 CUDA; N17E-G1; 82x105mm; MXM 3.1 w/ X-bracket, screws, thermal pads, ICD7
      Extra X-bracket / GPU Supporter
      - GPU Spreader / X-Bracket for MXM 3.0b AMD GPUs w/screws
      - GPU Spreader / X-Bracket for MXM 3.0b/3.1 NVIDIA GTX and Quadro w/ screws
      GPU-1 Heatsink (Primary)
      - CLEVO Primary Heatsink - Model Specific
      - P157SMA GPU Heatsink modified for GTX 1070
      Primary GPU / VGA Fan
      - x7200/P1xxEM/SM/SMA GPU Fan; 31-X720S-101
      Motherboard
      - P157SM-A / NP8258 Motherboard
      CMOS Battery replacement
      - Replacement CMOS Battery w/ Cable
      CPU / Processor
      - Intel Mobile Core i7-4940MX Extreme; 4C/8T; 22nm; FCPGA946; 57W
      Memory (RAM) Configuration
      - 32GB; 4x 8GB kit; DDR3-1600; 4x SODIMMs; 204-pin
      CPU Heatsink
      - CPU Heatsink - Clevo Model Specific
      CPU Fan
      - CPU Fan - CLEVO model specific
      Extra Thermal Pads

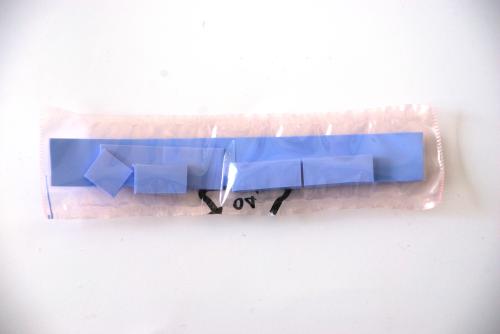

      - Set of thermal pads for NVIDIA based MXM3 GPUs
      - Thermal Plate with thermal pads for P157x/P177x GPUs
      Thermal Paste for GPU/CPU
      - IC Diamond Thermal Paste ICD7; 1 Tube; 1.5grams
      LCD Cables
      - P15x LVDS cable for the AUO B156HW1 LCD Panel; 43-P1571-012-N
      LCD Panels
      - 15.6in; FHD 60Hz; Matte; Backlight LED; LVDS
      Back LCD Cover
      - Back Cover Assembly (15.6 inch models)
      Front Cover
      - Front Cover (15.6-inch models)
      Top Case
      - Top Case - 15.6 inch - Model Specific
      Hinge Right Side
      - CLEVO P150xx Right Hinge Cover; 33-x5101-012
      Bottom Case
      - Bottom Case - 15.6 inch - Model Specific

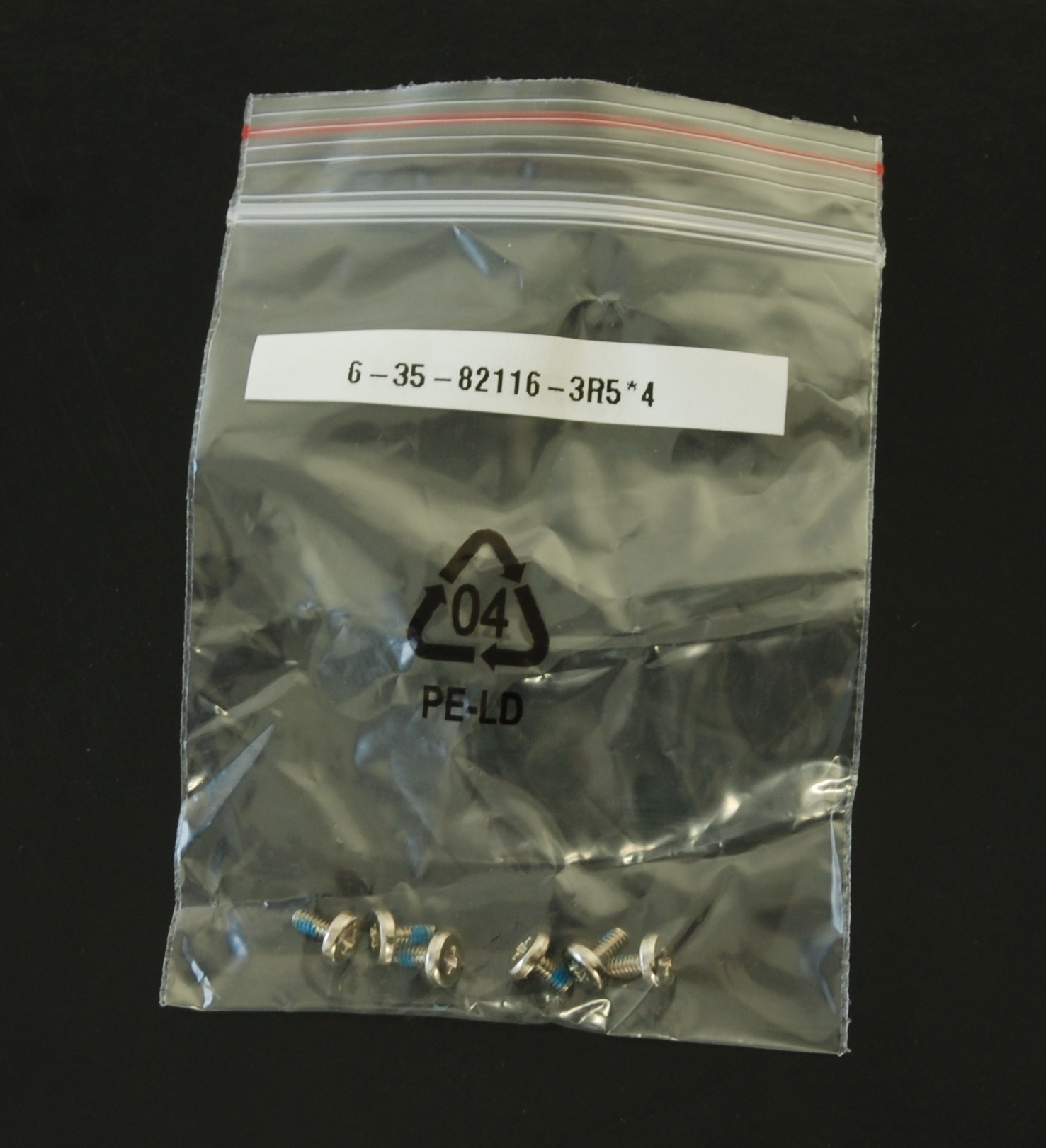

      Bottom Case Screws - 1 Set
      - Bottom Case Screws - 1 Set - Model Specific
      Keyboard (internal)
      - Backlit; English; USA/Canada; QWERTY

    Options

    Accessories
      AC Adapter
      - 180W Auto-Switching 100V-250V AC Adapter
      - 230W; 100V-250V; Auto-Switching
      - 280W; 100-240V 50-60Hz Auto-switching (worldwide)
      Power Cord
      - USA/CANADA
      - AUSTRALIA
      - EUROPE
      - SOUTH AFRICA
      - UK
      Battery
      - Battery Pack; Li-Ion - 8 Cells
