CLEVO P775DM / SAGER NP9758 / ORIGIN PC EON17-X / XMG U716


CLEVO P775DM-G / SAGER (Early 2016) 17.3-inch (43.94mm); FHD 1920-by-1080 or UltraHD 3840-by-2160 pixels; IPS; eDP



  • Graphics: Upgradeable MXM 3.0b; Single GPU - GSync
  • Processor: socketed desktop LGA1151 CPU, up to Intel i7-6700K, fully unlocked
  • AC Adapter: 330W standard for 75W GPUs; 330W is required for 100W GPUs
  • VGA Heatsink: standard 3-pipe (100W) is required for 100W GPUs
  • O/S Supported: Windows 7 and 8x and 10
  • BIOS Required: 0509/0502
  • ImagesVideosComponentsFAQsUpgradeUpgrade Price List
    Currency:

    Base Configuration
      Services: UNLOCKED BIOS Update
      - P775DM Unlocked BIOS  [$120]
      - Unlocked BIOS Update Service  [$120]
      Services: Standard BIOS Update
      - Standard BIOS update service  [$99]
      Services: Customized Drivers
      - Customized GPU Drivers H/W ID specific  [$129]
      - Set of Drivers for specific laptop model  [$129]
      Services: GPU Upgrade Full Service
      - GPU Upgrade Service; Includes shipping 2-ways, installation of GPU, Drivers, BIOS, Heatsink mods if required; Canada/US only  [$287]
      Primary GPU-1 Upgrade ** GPU Heatsink not included **
      - NVIDIA GeForce GTX 980 (desktop); 8GB DDR5;MXM 3.0; 107.6x115mm; 200W  [$671]
      - NVIDIA GeForce GTX 980M; 8GB DDR5; MXM 3.0b; 100W  [$839]
      - NVIDIA GeForce GTX 970M; 6GB DDR5; MXM 3.0b; 80W;   [$556]
      - NVIDIA 4GB GDDR5; NVIDIA Quadro K3100M (N15E-Q1); MXM 3.0b; 75W ;   [$716]
      - NVIDIA 8GB GDDR5; NVIDIA Quadro K5100M (N15E-Q5); MXM 3.0b; 100W;   [$2076]
      - 4GB GDDR5; NVIDIA Quadro M3000M (N16E-Q1); 75W; MXM 3.0b  [$900]

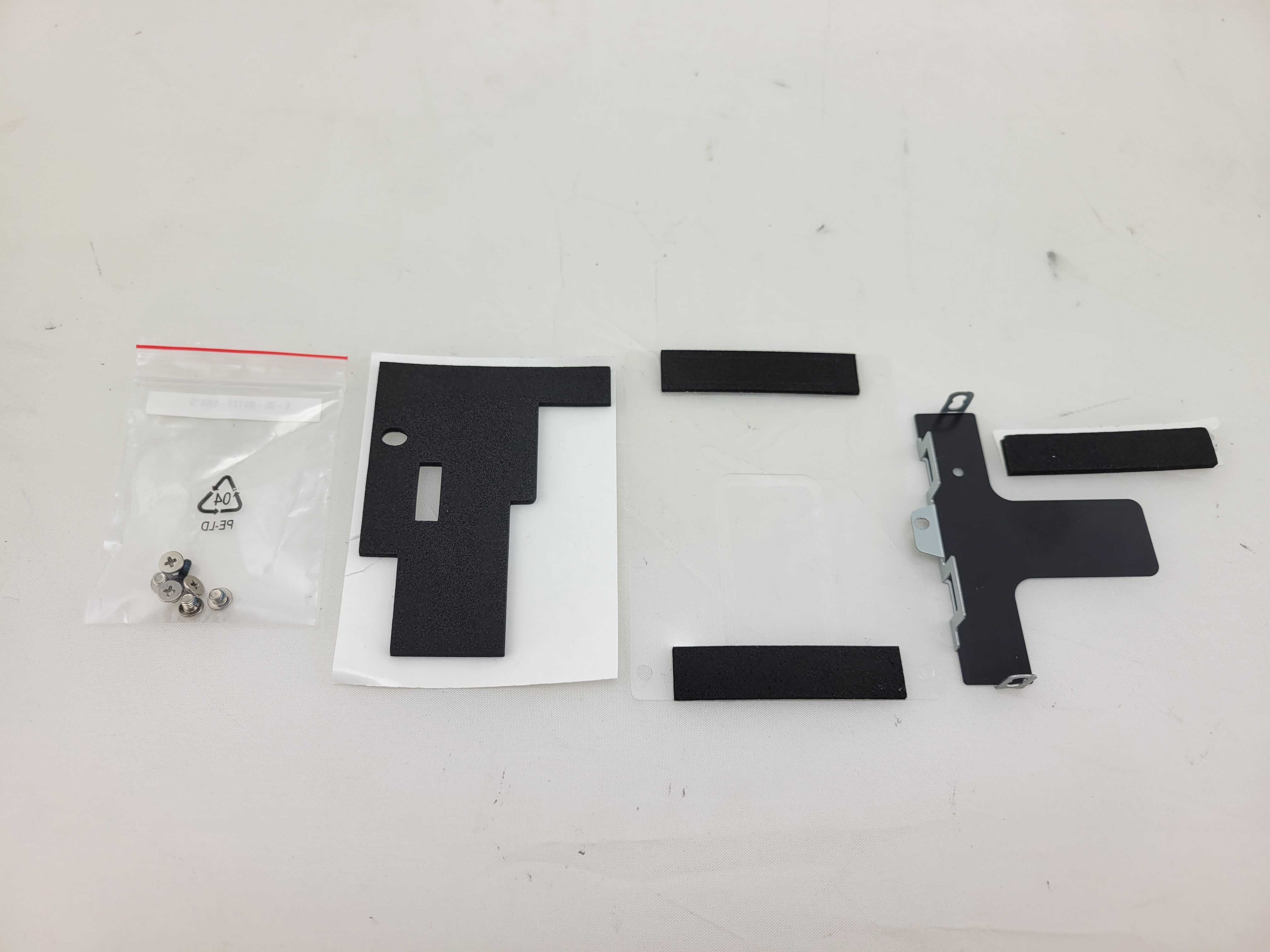

      Extra X-bracket / GPU Supporter
      - GPU Spreader / X-Bracket for MXM 3.0b/3.1 NVIDIA GTX and Quadro w/ screws  [$55]
      Set of screws for X-Bracket/GPU Supporter
      - Set of screws for X-Bracket/GPU Supporter  [$19]
      GPU-1 Heatsink (Primary)
      - P870DM GPU Heatsink for GTX 980 (N16E-GXX); 31-872N-401  [$239]
      - P770xx Single CPU+GPU Heatsink; 31-P75D3100  [$199]
      Primary GPU / VGA Fan
      - Clevo Primary GPU Fan - Model Specific  [$79]
      Motherboard
      - P775DM / NP9758 Motherboard; eDP (supports only eDP LCDs)  [$475]
      Power Switch Board
      - Power Switch Board; w/o cable; Model Specific  [$95]
      CPU Heatsink
      - CPU Heatsink - Clevo Model Specific  [$162]
      CPU Fan
      - CPU Fan - CLEVO model specific  [$79]

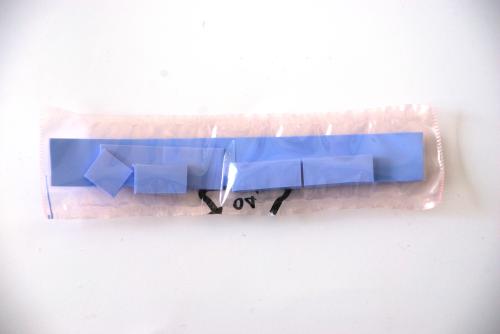

      Extra Thermal Pads
      - Set of thermal pads for NVIDIA based MXM3 GPUs  [$20]
      - Set of thermal pads for NVIDIA desktop GPUs  [$39]
      Thermal Paste for GPU/CPU
      - IC Diamond Thermal Paste ICD7; 1 Tube; 1.5grams  [$20]
      HDD Bracket Kit
      - CLEVO P775xx/P750xx; Bracket Kit for 2.5" HDD/SSD; 79-P775DM2J-010  [$63]
      LCD Cables
      - P775TM1/DM3/DM LCD cable; eDP 30pin; for FHD 60Hz; P/N: 43-P7751-010-1N  [$95]
      - P775TM1/DM3/DM LCD cable; eDP 40pin; for 120Hz FHD and UHD 60Hz; P/N: 43-P7751-020-1N  [$95]
      LCD Panels
      - 17.3in; FHD 60Hz; MATTE; eDP 30pin; LP173WF4 SPD5  [$319]
      - 17.3in; UHD 3840x2160; 60Hz; Matte; eDP; Adobe RBG 100%; AUO B173ZAN01.0  [$559]
      - 17.3in; QHD 2560x1440; 120Hz; Matte; eDP; AUO B173QTN01.0   [$503]
      - 17.3in; FHD 144Hz; Matte; eDP; AUO B173HAN03.1  [$399]
      Back LCD Cover
      - Back Cover Assembly (17.3 inch models)  [$179]
      Front Cover
      - Front Cover (17.3-inch models)  [$99]
      Top Case
      - Top Case - 17.3 inch - Model Specific  [$299]
      Hinge Left Side
      - P775xx Left Side LCD Hinge for UHD LCD - P/N: 33-P7751-2L0-1  [$55]
      - P775xx Left Side Hinge for FHD/QHD LCD - P/N 33-P7751-2L0  [$55]
      Hinge Right Side
      - CLEVO P775xx Right Side Hinge 2K/3K LCD; 33-P7751-0R2  [$63]
      - CLEVO P775xx Right Side Hinge UHD LCD;33-P7751-0R2 -1  [$63]
      Bottom Case
      - Bottom Case - 17.3 inch - Model Specific  [$199]
      Bottom Case HDD Cover
      - BOTTOM CASE PLASTIC HDD COVER  [$66]

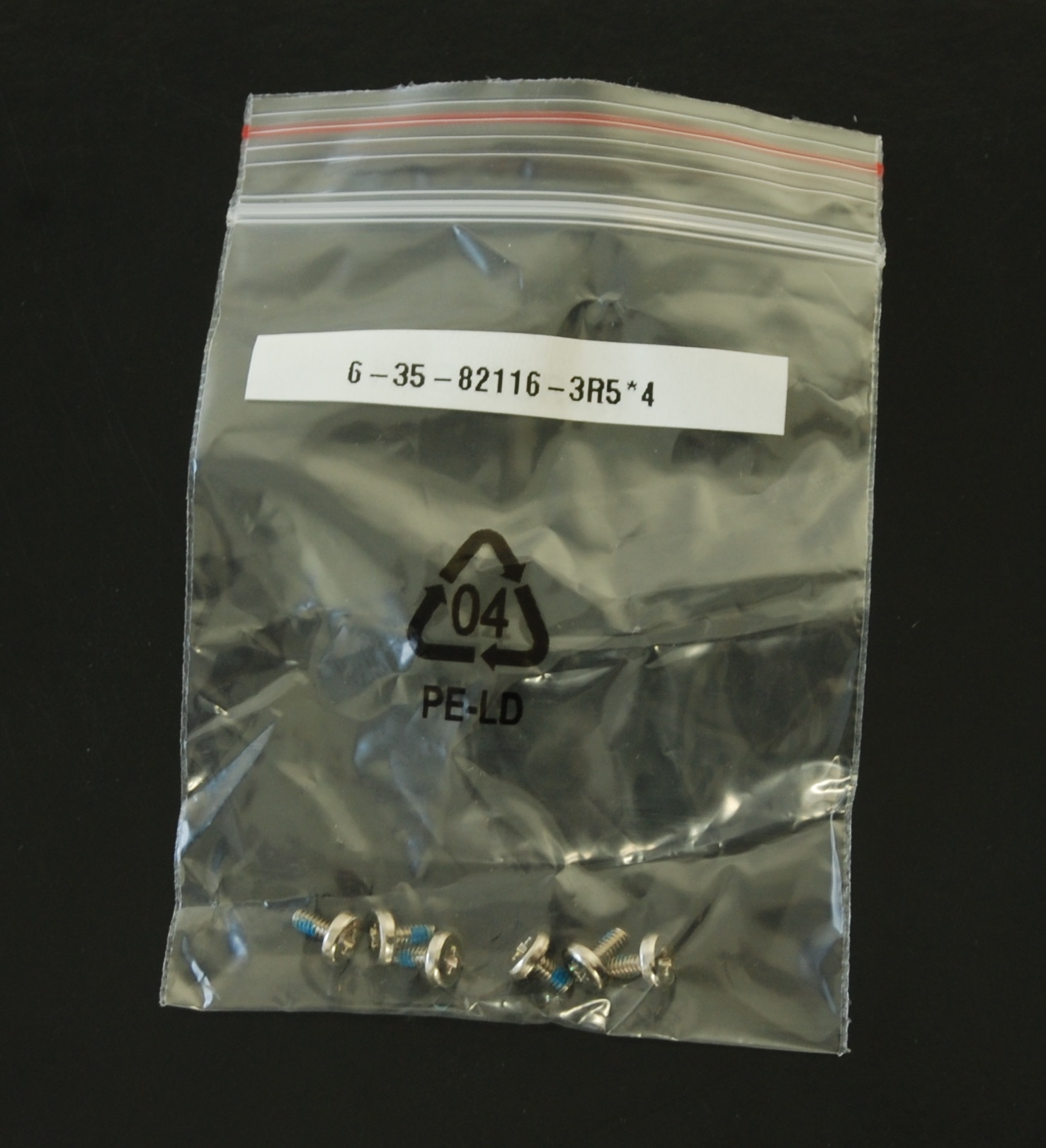

      Bottom Case Screws - 1 Set
      - Bottom Case Screws - 1 Set - Model Specific  [$39]
      Keyboard (internal)
      - Backlit; English; USA/Canada; QWERTY  [$134]
      - Backlit; UK English; QWERTY  [$134]
      - Backlit; Español / Spanish; QWERTY  [$134]
      - Backlit; Français / French; AZERTY  [$134]
      - Backlit; Italiana / Italian; QWERTY  [$134]
      - Backlit; Norske / Norwegian; QWERTY  [$134]
      - Backlit; Português / Portugese; QWERTY  [$134]
      - Backlit; Svenska / Swedish; QWERTY  [$134]
      - Backlit; Swiss German; QWERTZ  [$134]
      - Backlit; Alemán / German; QWERTZ  [$134]
      - Backlit; China; QWERTY  [$134]

    Options
      Extra SSD/HDD Bracket(s) & Cables
      - P750xx/P775xx/P770xx 1st HDD/SSD bracket for 9.5mm HDD/SSD w/ screws ; 79-P775DM2J-010   [$124]
      - P750xx/P775xx/P770xx 2st HDD/SSD Bracket for 9.5mm HDD/SSD w/ screws ; 79-P775DM2J-030  [$124]

    Accessories
      AC Adapter
      - 330W AC Adapter; 100-240V; 50-60Hz; DC 19.5V @ 16.9A; 4pin round plug  [$183]
      - 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; w/ DC cable   [$398]
      Power Cord
      - USA/CANADA  [$7]
      - AUSTRALIA  [$7]
      - UK  [$7]
      - EUROPE  [$7]
      - SOUTH AFRICA   [$7]

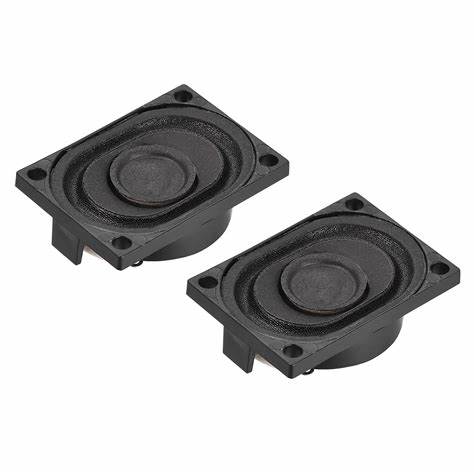

      Laptop Speakers - Right and Left
      - P750xx /P775xx /P870xx; Internal Speakers; Right and Left; 23-5P775-2S0  [$76]
      Power Inverter
      - 300W Portable DC-to-AC Power Inverter; 2 AC Outlets (US); Belkin F5C400-300W; US Edition  [$95]
