CLEVO P177SMA / SAGER NP8298
17.3" FHD 1920-by-1080 pixels; Matte or Glossy; Backlight LED

CLEVO P177SMA / SAGER NP8298 (Late 2014) 17.3" FHD 1920-by-1080 pixels; Matte or Glossy; Backlight LED


  • Graphics: Upgradeable MXM 3.0b; single GPU
  • Processor: socket based Haswell Intel CPU (up to i7-4940MX Extreme)
  • AC Adapter: 230W standard for 100W GPUs
  • VGA Heatsink: standard heatsink (100W)
  • O/S Supported: Windows 7 and 8x and 10
  • BIOS Required:
  • To use the 10 series cards you must... Running Windows 10 in full UEFI mode, Unlocked BIOS and All Custom written drivers.
  • GTX 1070 card has been fully tested and working. You will need to purchase a modified heatsink for this to function.
  • GTX 1060 can use the original equipment heatsink with no modifications but you will need to re-position the thermal pads to match the new card layout.
    		•
    ImagesVideosComponentsDriversFAQsUpgradeUpgrade Price List
    Currency:

    Base Configuration
      Services: UNLOCKED BIOS Upgrade w/ BIOS flash instructions
      - Unlocked BIOS for P1xxSM-A version 1.05.01EU  [$120]
      Services: Standard BIOS Update
      - Standard BIOS update service  [$99]
      Services: Customized Drivers
      - Customized GPU Drivers H/W ID specific  [$129]
      Services: Support Consultation w/ Technician
      - Remote Teamviewer Support Session w/ Technician  [$149]
      - Support Consultation Session w/ Technician  [$89]
      Services: GPU Upgrade Full Service
      - GPU Upgrade Service; Includes shipping 2-ways, installation of GPU, Drivers, BIOS, Heatsink mods if required; Canada/US only  [$287]
      Primary GPU-1 Upgrade ** GPU Heatsink not included **
      - NVIDIA GeForce GTX 780M; 4GB DDR5; MXM 3.0b; 100W  [$712]
      - NVIDIA GeForce GTX 880M; 8GB DDR5; MXM 3.0b; 100W  [$632]
      - NVIDIA GeForce GTX 980M; 8GB DDR5; MXM 3.0b; 100W  [$839]
      - NVIDIA GeForce GTX 970M; 6GB DDR5; MXM 3.0b; 80W;   [$556]
      - NVIDIA GeForce GTX 1060; N17E-G1;6GB GDDR5; 82x105mm; MXM 3.1   [$399]
      - 4GB DDR5; AMD Radeon R9-M290X; MXM 3.0b; 100W  [$472]
      Extra X-bracket / GPU Supporter
      - GPU Spreader / X-Bracket for MXM 3.0b AMD GPUs w/screws  [$55]
      - GPU Spreader / X-Bracket for MXM 3.0b/3.1 NVIDIA GTX and Quadro w/ screws  [$55]
      Set of screws for X-Bracket/GPU Supporter
      - Set of screws for X-Bracket/GPU Supporter  [$19]
      GPU-1 Heatsink (Primary)
      - CLEVO Primary Heatsink - Model Specific  [$199]
      - P17xSMA Modified heatsink for use with the GTX 1070  [$144]
      Primary GPU / VGA Fan
      - Clevo Primary GPU Fan - Model Specific  [$79]
      - x7200/P1xxEM/SM/SMA GPU Fan; 31-X720S-101  [$79]
      Motherboard
      - P177SMA / NP8298 Motherboard  [$475]
      CPU / Processor
      - Intel Mobile Core i7-4940MX Extreme; 4C/8T; 22nm; FCPGA946; 57W  [$695]
      Memory (RAM) Configuration
      - 32GB; 4x 8GB kit; DDR3-1600; 4x SODIMMs; 204-pin  [$236]
      CPU Heatsink
      - CPU Heatsink - Clevo Model Specific  [$162]
      CPU Fan
      - CPU Fan - CLEVO model specific  [$79]
      GPU Cables (SLI / CrossFire) for dual GPUs
      - SLI CABLE - CLEVO P370SM  [$52]
      - Crossfire Cable - Universal  [$52]

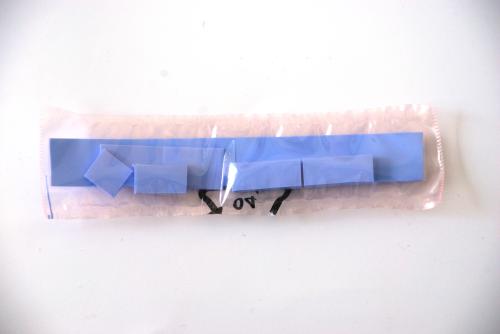

      Extra Thermal Pads
      - Set of thermal pads for NVIDIA based MXM3 GPUs  [$20]
      - Set of thermal pads for AMD based MXM3 GPUs  [$20]
      - Thermal Plate with thermal pads for P157x/P177x GPUs  [$24]
      LCD Cables
      - P177SM/SMA LCD Cable to M/B; LVDS; 40pin - p/n 43-P1771-011N  [$95]
      LCD Panels
      - 17.3in; FHD; 60Hz; Matte; IPS; LVDS; Chimei N173HGE-L11  [$319]
      - 17.3in; ; FHD 60Hz; Glossy (GT); 90% NTSC; AUO B173HW01 V.4; 500:1; LVDS  [$399]
      Back LCD Cover
      - Back Cover Assembly (17.3 inch models)  [$179]
      Front Cover
      - Front Cover (17.3-inch models)  [$99]
      Top Case
      - Top Case - 17.3 inch - Model Specific  [$299]
      Bottom Case
      - Bottom Case - 17.3 inch - Model Specific  [$199]
      CPU Cover
      - D900C/D900F CPU PLASTIC COVER; P/N 42-D90CS-102; THIS IS CPU COVER NOT THE BOTTOM CASE  [$124]
      - P177SM/SMA CPU PLASTIC COVER; P/N 42-P1773-101-A; THIS IS CPU COVER NOT THE BOTTOM CASE  [$124]

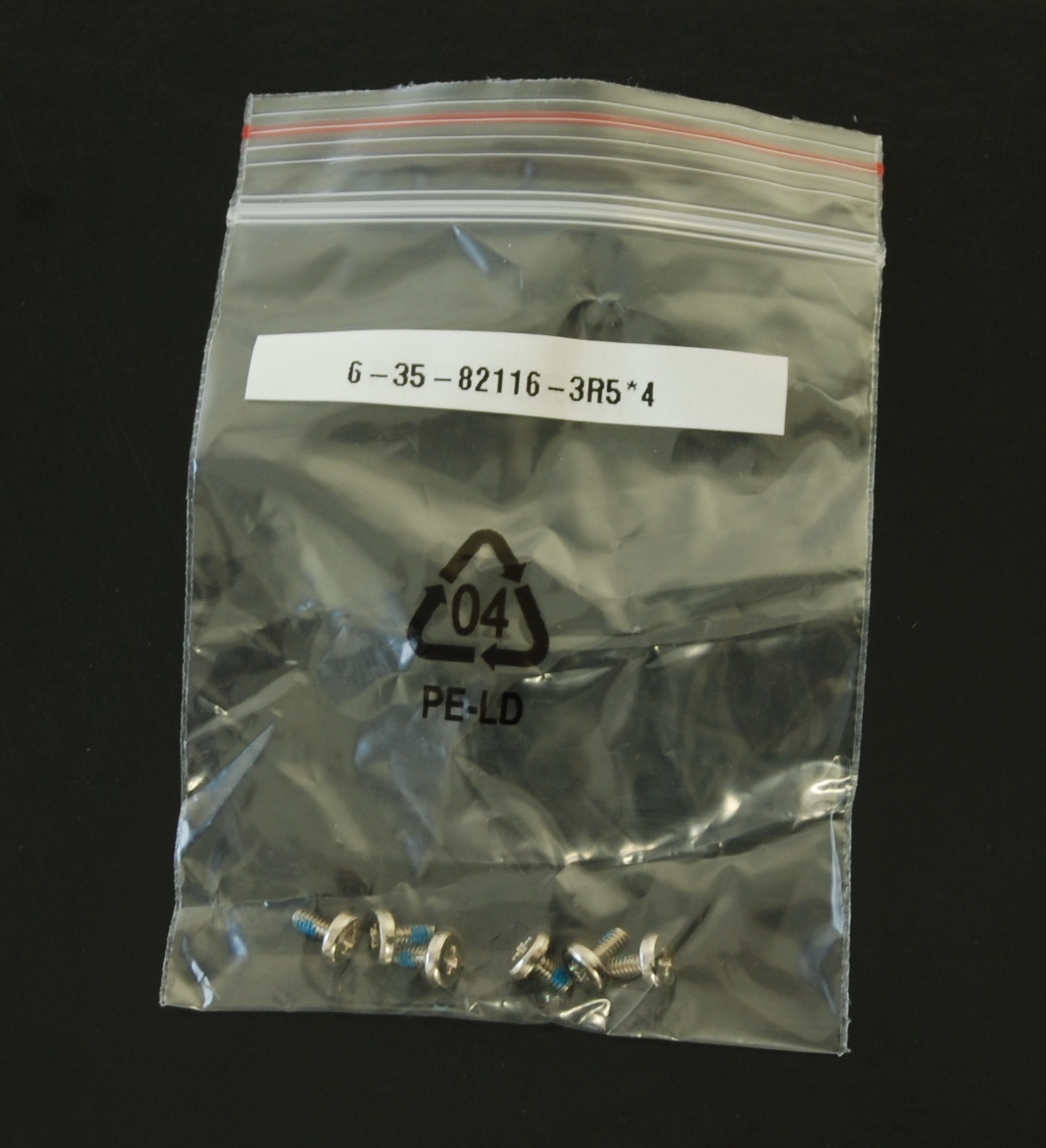

      Bottom Case Screws - 1 Set
      - Bottom Case Screws - 1 Set - Model Specific  [$39]
      Keyboard (internal)
      - Backlit; China; QWERTY  [$134]
      - Backlit; English; USA/Canada; QWERTY  [$134]
      - Backlit; UK English; QWERTY  [$134]
      - Backlit; Japan; QWERTY  [$134]
      - Backlit; Alemán / German; QWERTZ  [$134]
      - Backlit; Español / Spanish; QWERTY  [$134]
      - Backlit; Français / French; AZERTY  [$134]
      - Backlit; Italiana / Italian; QWERTY  [$134]
      - Backlit; Norske / Norwegian; QWERTY  [$134]
      - Backlit; Português / Portugese; QWERTY  [$134]
      - Backlit; Svenska / Swedish; QWERTY  [$134]
      - Backlit; Swiss German; QWERTZ  [$134]

    Options

    Accessories
      AC Adapter
      - 230W; 100V-250V; Auto-Switching  [$135]
      - 280W; 100-240V 50-60Hz Auto-switching (worldwide)  [$140]
      Power Cord
      - USA/CANADA  [$7]
      - AUSTRALIA  [$7]
      - EUROPE  [$7]
      - SOUTH AFRICA   [$7]
      - UK  [$7]
      Battery
      - Battery Pack; Li-Ion - 8 Cells  [$143]
