Apr 07, 2011

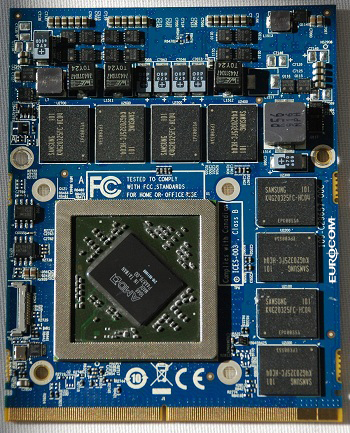

Eurocom launches MXM 3.0b AMD HD6970M VGA module for High Performance Embedded Systems

Braden Taylor
877-EUROCOM x239

Eurocom Corporation (www.eurocom.com), the leading mobile technology developer launches the AMD HD6970M MXM 3.0b graphics module for embedded systems use. MXM Modules are available from Eurocom's MXM Group.

The AMD HD6970M graphics MXM 3.0b module is ideal for high performance embedded applications that require the absolute best in terms of graphical performance and processing capabilities such as such as satellite imaging, mapping, surveillance, military, security, medical imaging, digital signage, gaming, gambling, image recognition and robotics . Uses include SFF (Small Form-Factor) computers, and notebook designs.

The industry standard MXM 3.0b specification for graphics subsystems allows for improved cooling capability, reduced power and height, enabling engineers to create smaller, more efficient embedded systems, reduce development time and costs and to introduce new designs faster to market.

The EUROCOM HD6970M MXM 3.0b graphics module is currently the highest performance GPU for embedded designs available on the market.

The HD6970M graphics processor unit also supports 3D stereoscopic and BD-3D technologies with hardware MVC decode support. With the addition of the new security processor feature, DRM support can be off loaded from the CPU to GPU.

HD6970M supports DX 11 with Shader Model 5.0, PCI E Revision 2.0, DisplayPort 1.2, and integrated HDMI 1.4a technologies. The unified Video Decoder 3 enables support for dual stream decode of high definition contents, along with the decode support of H.264 and VC-1, and entropy decode support of MPEG-2 HD and MPEG-4 part 2 (DivX and xVid).

HD6970M Product Details
Graphics Technology
-Mobility RADEON BLACKCOMB XT graphics technology

PCB Board
-Number of layers: 12
-Dimensions W x L: 105mmx82mm (4.13"x3.22")

Memory Configuration
-Onboard 2GB memory, 256-bits memory interface
-Memory clock: 900MHz
-Memory Bus Width: 256 bits
-Memory Type: 8pcs GDDR5 64MX32-5.0, Samsung K4G20325FC-HC04

Graphics ASIC
-ATI Radeon at 680Mz engine clock

Operating System Support
-Microsoft Windows XP
-Microsoft Windows 7

Display Support
-Register Compatible with VGA
-Supports VESA PnP compatible displays
-BIOS compatible with VESA for super VGA -DDC 1/2b/2b+ monitor support -VESA Display Power Management Support -Separate horizontal and vertical synchronization at TTL levels -HDCP ready

Display Support for VBios
-LVDS/DVI-D (single link)/ VGA

Benchmarks HD6970M
3DMark Vantage, 3D Mark 11, 3DMark 06, and Unigine Heaven 2.1.
3DMark Vantage: P 3420
3D Mark 11: P 13397
3DMark 06: 21043
Unigine Heaven 2.1: 680, 29.3 FPS

Tested in:
EUROCOM Racer/HM65/i7-2920XM/4GB(2x2GB DDR3-1333)/15.6-inch FHD 1920x1080

About Eurocom Upgradeable MXM Group
Eurocom is a leading developer of mobile computer technology. The company has produced many firsts and continues to engineer VGA solutions that inspire and enable individuals and companies to reach great possibilities. For more information on programs, such as the "Trade in Program", "Education Program", "Factory Outlet" and "Upgrade Center" or to customize a machine, visit Eurocom.com.
