newsroom - News Releases
Jul 29, 2016

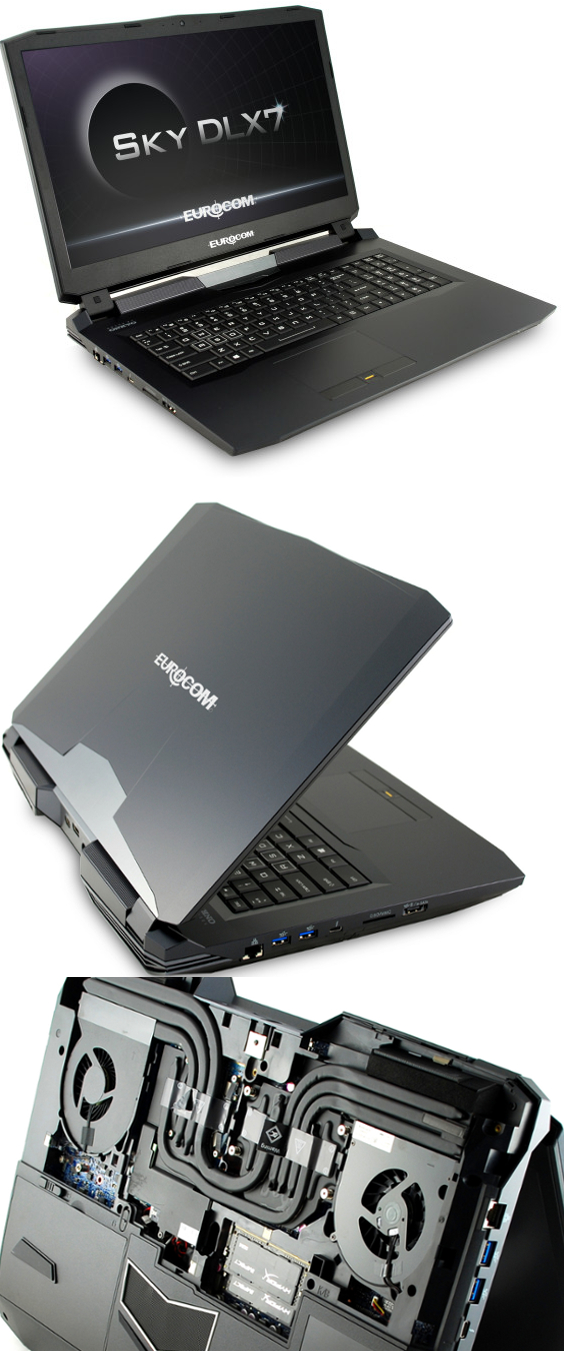

Eurocom launches 17.3” Sky DLX7 Mobile Workstation with NVIDIA Quadro M5000M MXM graphics, Intel Core i7 6700K, 64 GB RAM

Braden Taylor

Eurocom is launching the Sky DLX7 Mobile Workstation with NVIDIA Quadro M5000M or M3000M professional graphics, Intel Z170 chipset and socket LGA 1151 allowing it to support desktop Intel Skylake processors up to Intel Core i7-6700K as well as four SODIMM for support of up to 64 GB of DDR4 memory, 4k 17.3” display and 5TB of storage.

“If you are a professional who requires the utmost in high-performance mobile computing, the EUROCOM Sky DLX7 is the system for you” Mark Bialic, Eurocom President.

Not only does the EUROCOM Sky DLX7 Mobile Workstation have upgradeable NVIDIA Quadro graphics, it also has socket based desktop Intel Skylake processors. The EUROCOM Sky DLX7 utilizes an Intel Z170 Chipset, socket LGA 1151 for support up to Intel Core i7-6700K processors. The Intel Core i7-6700K has 4 cores and 8 threads running at 4GHz, with turbo boost up to 4.2 GHz utilizing 14nm technology. The Intel Core i7-6700K is overclockable for maximum control and performance.

The EUROCOM Sky DLX7 Mobile Workstation is able to support such high performance hardware due to its robust, high quality design, combined with high speed fans and high capacity copper heatsinks to keep the desktop graphics and processor within its operating temperature range.

A beautiful 17.3” display is there to show off the mind-blowing performance held within the Sky DLX7. A future 4k display option will also be available for future upgrades. The EUROCOM Sky DLX7 can support up to 4 active displays through its two mini Display Ports, USB 3.1 and HDMI 2.

64 GB of memory is supported via four upgradeable and easily accessible SODIMM. DDR4-2133 and 2400 are supported.

Eurocom knows that our customers are using their Mobile Workstations for crucial mission critical applications and security are very important, because of this we have once again incorporated a Trusted Platform Module 2.0 (Infineon SLB9665-TCG) as well as a finger print reader and Kensington lock port.

Five Terabytes of storage is possible through four storage drives for a plethora of capacity, configuration and upgrade options. Two 9.5 mm HDD or SSD bays and two M.2 SSD PCIe x4 SATA drives are supported with RAID 0/1/5/10 availability.

NVIDIA Quadro Graphics Options:
- 4GB GDDR5; NVIDIA Quadro K3100M (N15E-Q1); 768 CUDA; OpenGL; MXM 3.0b; 75W
- 8GB GDDR5; NVIDIA Quadro K5100M (N15E-Q5); 1536 CUDA; OpenGL; MXM 3.0b; 100W
- 4GB GDDR5; NVIDIA Quadro M3000M (N16E-Q1); 1024 CUDA; OpenGL; MXM 3.0b; 28nm; 75W
- 8GB GDDR5; NVIDIA Quadro M5000M (N16E-Q5); 1536 CUDA; OpenGL; MXM 3.0b; 28nm; 100W

Processor Options:
- 4GHz (up to 4.2GHz) Intel Core i7-6700K; 4C/8T; 8MB L3; Skylake-S; 14nm; LGA1151; 91W
- 3.5GHz (up to 3.9GHz) Intel Core i5-6600K; 4C/4T; 6MB L3; Skylake-S; 14nm; LGA1151; 91W
- 3.4GHz (up to 4GHz) Intel Core i7-6700; 4C/8T; 8MB L3; Skylake-S; 14nm; LGA1151; 65W

EUROCOM Sky DLX7 Mobile Workstation Specifications:
Display: 4K UHD 3840-by-2160 pixels; 17.3-inch (43.94mm); LCD Display; eDP
Chipset: Intel Z170 Express (Skylake)
Processor: socketed desktop LGA1151 CPU, up to Intel i7-6700K, fully unlocked
Memory: up to 64GB; DDR4-2133, 2400 or 2666; 4 SODIMM sockets
VGA Technology: NVIDIA GeForce: GTX 980M, 970M MXM 3.0b (83mm x 105mm) or GTX 980 desktop (83mm x 115mm); Quadro: M3000M, M5000M, K5100M, K3100M MXM 3.0b; PhysX; one MXM 3.0 slot
Display Technology: supports 4 external monitors via 2x DP 1.2, 1x HDMI 2.0 and 1x HDMI 2.0 or DP1.2 (via USB 3.1 type C port); Nvidia Surround View
Storage: up to 5TB with 4 drives; 2x HDD/SSD (SATA3) + 2x M.2 PCIe Gen3 x4/SATA3; RAID 0/1/5/10; supports NVMe SSDs
Communications: 1Gb LAN RJ-45 port Killer E2400 + M.2 WLAN/Bluetooth
Operating Systems: Microsoft Windows: 10, 8.1 and 7
Card Reader: 6-in-1 MMC/RSMMC/SD/miniSD/SDHC/SDXC up to UHS-II
Keyboard: Illuminated, backlit with customizable 7-colours
Security: TPM 2.0, Fingerprint and Kensington Lock
Audio System: Sound Blaster X-Fi MB5; external 7.1CH audio output; headphone out, microphone in, S/PDIF and Line-in port; two built-in ONKYO Speakers (2.2W)+ Subwoofer (2.5W)
Ports: 1x USB 3.1 type C (HDMI 2.0/DP 1.2/Thunderbolt 3); 2x miniDP 1.2; 1x HDMI 2.0; 3x USB 3.0; 1x eSATA / USB 3.0 (1x Powered USB, AC/DC); S/PDIF; Headphone; Mic; Line-in; RJ45 (LAN)
Weight and dimensions: 3.9kg / 8.58lb; WxDxH 418x295x39.9mm / 16.72x11.81x1.6-inch
