CLEVO P15xSM / SAGER NP8255 / Schenker W503/ ORIGIN PC EON 117S
15.6-inch FHD 1920-by-1080 pixels; Matte (Non-Glare) or Glossy (Glare); LED Backlit Display; optional 95% Gamut/NTSC

CLEVO P157SM / SAGER NP8255 (Mid 2013)


  • Graphics: Upgradeable MXM 3.0b; single GPU
  • Processor: 4th Generation Intel Mobile i7 Core (up to i7-4940MX Extreme)
  • AC Adapter: 180W standard for 100W GPUs
  • VGA Heatsink: standard heatsink (100W)
  • O/S Supported: Windows 7 and 8x and 10
  • BIOS Required:
  • To use the 10 series cards you must... Running Windows 10 in full UEFI mode, Unlocked BIOS and All Custom written drivers.
  • GTX 1070 has been tested and works. The 86mm x 105mm card required both the modded heatsink and a modded bottom case. Bottom case is for sale below under "Bottom Case"
  • GTX 1060 can use the original equipment heatsink with no modifications but you will need to re-position the thermal pads to match the new card layout
    		•
    ImagesVideosComponentsDriversFAQsUpgradeUpgrade Price List
    Base Configuration
      GPU / VGA Upgrade Kit (Primary)
      - NVIDIA GeForce GTX 780M; 4GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 770M; 3GB DDR5; MXM 3.0b; 75W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 870M; 6GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 880M; 8GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 980M; 8GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 970M; 6GB DDR5; MXM 3.0b; 80W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - 8GB GDDR5; NVidia GTX 1070; 2048 CUDA; N17E-G2; 86x105mm; MXM 3.1; w/ X-bracket, screws, thermal pads, ICD7
      - 6GB GDDR5; NVIDIA GTX 1060; 1280 CUDA; N17E-G1; 82x105mm; MXM 3.1 w/ X-bracket, screws, thermal pads, ICD7
      - 4GB DDR5; AMD Radeon R9-M290X; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      VGA Heatsink (Primary)
      - CLEVO Primary Heatsink - Model Specific
      - P15xSM Heatsink modified for use with the NVidia GTX 1070
      Extra X-bracket / GPU Supporter
      - GPU Spreader / X-Bracket for MXM 3.0b for AMD Cards with Matching Screws
      - GPU Spreader / X-Bracket for MXM 3.0b NVIDIA GTX and Quadro with Matching Screws

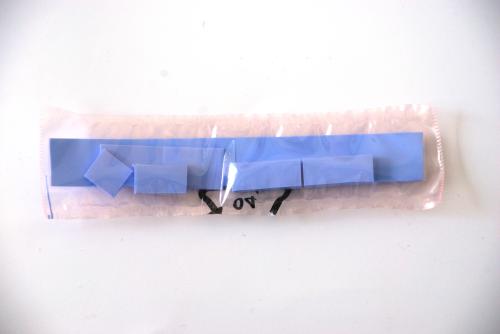

      Extra Thermal Pads
      - Thermal Plate with thermal pads for P157x/P177x GPUs
      Extra Screws for X-Bracket
      - VGA/GPU X-Bracket / GPU Supporter Screws
      Thermal Paste
      - IC Diamond Thermal Paste ICD7; 1tube; 1.5g

    Options
      MXM3 GPU Riser Card- Riser cards are designed for testing and/or debugging MXM3 based GPUs
      - AMD MXM3 to PCIe Riser card
      - NVIDIA MXM3 to PCIe Riser card
      CPU Heatsink
      - CLEVO P150HM/EM/SM/SMA CPU Heatsink - p/n 31-P155N-101
      CPU Fan
      - CLEVO Model Specific CPU Fan
      Primary GPU / VGA Fan
      - x7200/P1xxEM/SM/SMA GPU Fan - P/N 31-X720S-100
      Motherboard
      - CLEVO P150SM / SAGER NP8268 Motherboard
      - CLEVO P157SM / SAGER NP8255 Motherboard
      Hinge Right Side
      - CLEVO P150xx Right Hinge Cover - p/n - 33-x5101-012
      Hinge Cover - Left Side
      - CLEVO P150xx Left Hinge Cover - p/n 33-x5101-022
      Keyboard (internal)
      - Backlit; English; USA/Canada; QWERTY

    Accessories

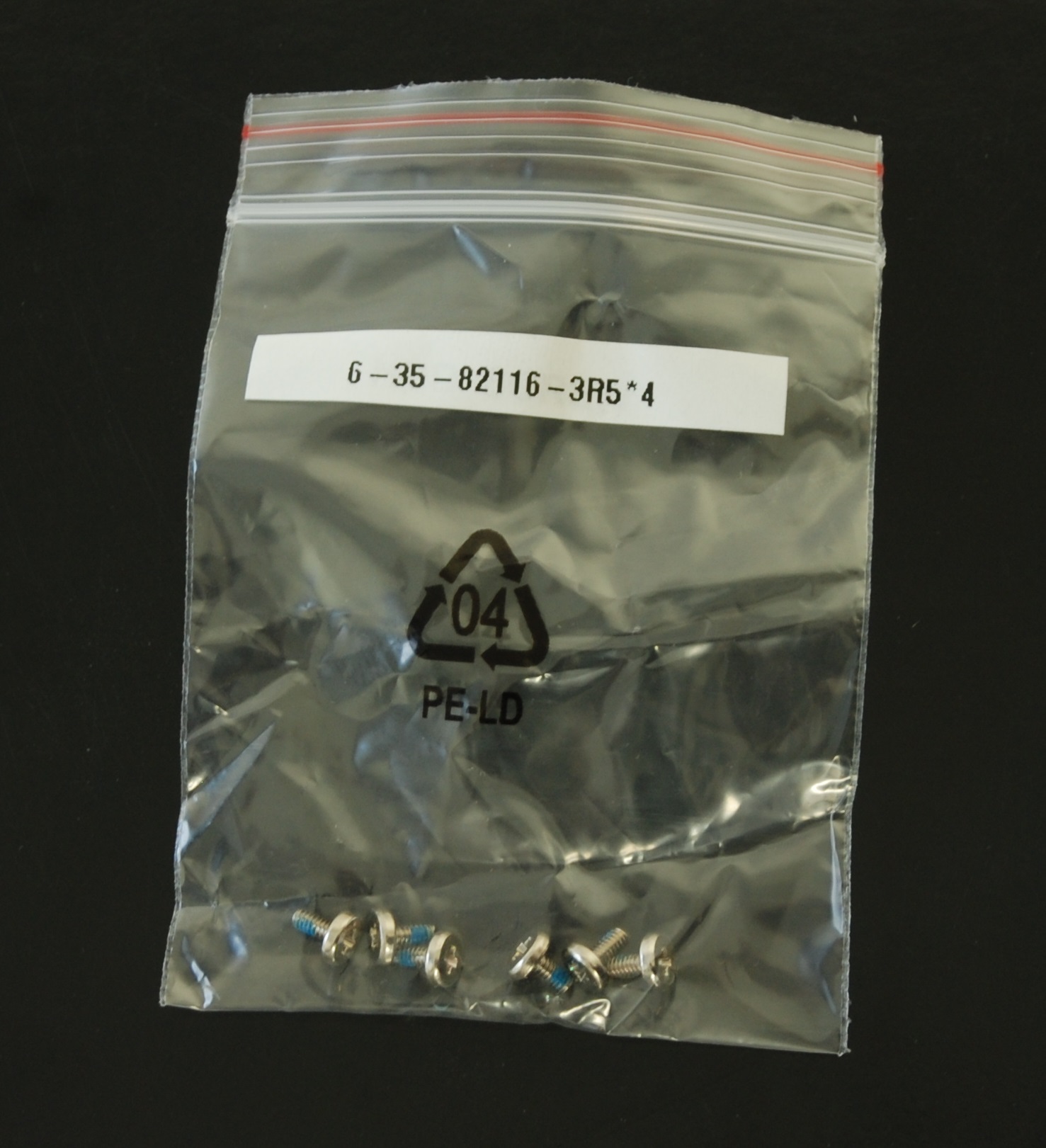

      Bottom Case Screws - 1 Set
      - Bottom Case Screws - 1 Set - Model Specific
      LCD Panels
      - 15.6-inch (39.6cm); FHD 1920x1080; 60Hz; Glossy (GT); 95% NTSC; 500:1; Backlight LED; AUO B156HW1 V.7
      - 15.6-inch (39.6cm); FHD 1920x1080; 60Hz; Matte; Backlight LED; LVDS
      LCD Cables
      - P15x LVDS cable for the AUO B156HW1 LCD Panel (cable only)
      AC Adapter (Extra)
      - 180W Auto-Switching 100V-250V AC Adapter
      - 230W; 100V-250V; Auto-Switching
      Battery (Extra)
      - Battery Pack; Li-Ion - 8 Cells
      Back Cover
      - Back Cover Assembly (15.6 inch models)
      Front Cover
      - Front Cover (15.6-inch models)
      Top Case
      - Top Case - 15.6 inch - Model Specific
      Bottom Case
      - Bottom Case - 15.6 inch - Model Specific
      Bottom Case CPU Cover
      - Bottom case CPU Cover - Does not include Bottom Case
      Bottom Case HDD Cover
      - CLEVO P150xx Hard Drive Cover
