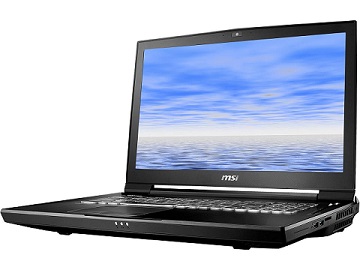

MSI WT75
17.3-inch; FHD 120Hz (1920x1080) or 4K UHD 60Hz (3840x2160)

Weight/Dimensions: 4.14kg (9.1lbs); 428x314x24-51mm (17.12x12.56x0.96-2.04-inch)
Operating Systems: Microsoft Server 2016; Linux/Ubuntu; VMware VSphere 6.7 U2
Core Logic: Intel C246 Chipset
Processor: Intel XEON E series and/or i9-9900K; LGA1151; up to 8C/16T
Memory: up to 128GB; DDR4 ECC (with Xeon) or non-ECC (with i7/i9); 4x SODIMM sockets
Storage: up to 40TB of storage with five physical drives 3x M.2 NVMe PCIe x4 + 2x 2.5" SATA3)
Redundancy and Performance: RAID 0/1/5/10 with 5 drives; RAID 0/1/5 with NVMe SSDs
Network: 1GbE; RJ-45 LAN on-board; VPro; Intel I219-LM chipset
I/O Ports: 1x Thunderbolt 3.0; 5x USB 3.1; miniDP; HDMI 2.0; Mic in; Headphone S/PDIF out; Line-in; Line out; RJ-45 / LAN
Security: Smartcard Reader, TPM 2.0; Fingerprint; BIOS Disk Encryption; Kensington Lock; HDD BIOS Password; optional "anti hacking" with webcam, mic and WLAN removed.
Heavy Duty Mechanical Design: Aluminium Alloy (Back Cover and Top Case) and German manufactured resins (Front Cover and Bottom Case)
ComponentsUpgradeUpgrade Price List
Base Configuration
  Services: UNLOCKED BIOS Upgrade w/ BIOS flash instructions
  - Unlocked BIOS Update Service
  Services: Standard BIOS Update
  - Standard BIOS update service
  Services: Customized Drivers
  - Customized GPU Drivers H/W ID specific
  Services: Support Consultation w/ Technician
  - Support Consultation Session w/ Technician
  - Remote Teamviewer Support Session w/ Technician
  Services: GPU Upgrade Full Service
  - Upgrade MSI MS16L1 Motherboard for GTX 1080; Shipping not included
  - Upgrade service: Installation of parts provided by Customer
  Primary GPU-1 Upgrade ** GPU Heatsink not included **
  - NVIDIA GeForce GTX 970M; 6GB DDR5; MXM 3.0b; 80W;
  - NVIDIA GeForce GTX 980M; 8GB DDR5; MXM 3.0b; 100W
  - NVIDIA GeForce GTX 1060; N17E-G1;6GB GDDR5; 82x105mm; MXM 3.1
  - NVIDIA GeForce GTX 1080; 8GB GDDR5X; 2560 CUDA; N17E-G3; MXM 3.1
  - 4GB GDDR5; NVIDIA Quadro M3000M (N16E-Q1); 75W; MXM 3.0b
  - Quadro P3200; 6GB GDDR5; N18E-Q1; 1792 CUDA; MXM 3.1; 75W
  - Quadro P5000; 16GB GDDR5; N17E-Q5; 2048 CUDA; MXM 3.1b; 82x105mm; 100W
  - 2GB GDDR5; NVIDIA Quadro M1000M; MXM 3.0a; N16P-Q1; 40W
  - 8GB GDDR5; NVIDIA Quadro M5000M (N16E-Q5); 1536 CUDA; OpenGL; MXM 3.0b; 28nm; 100W
  Extra X-bracket / GPU Supporter
  - GPU Spreader / X-Bracket for MXM 3.0b/3.1 NVIDIA GTX and Quadro w/ screws
  Set of screws for X-Bracket/GPU Supporter
  - Set of screws for X-Bracket/GPU Supporter
  GPU-1 Heatsink (Primary)
  - MSI WT75 GPU Heatsink for P3200 1st part
  - MSI WT75 GPU Heatsink for P3200 2nd part
  Primary GPU / VGA Fan
  - MSI WT75 GPU Fan - 104.1*95*26.5mm 3800rpm
  Motherboard
  - MSI WT75 Motherboard
  Power Switch Board
  - MSI WT75 Power Switch Board w/o cable
  CPU Heatsink
  - MSI WT75 CPU Heatsink
  CPU Fan
  - CPU FAN; MSI WT75; 102*98.7*26.5mm 3800rpm
  Extra Thermal Pads
  - Set of thermal pads for NVIDIA based MXM3 GPUs
  - Set of thermal pads for NVIDIA desktop GPUs
  Thermal Paste for GPU/CPU
  - Thermal Grizzly KRYONAULT for CPU/GPU; 1 Tube 1gram
  LCD Cables
  - MS16L1 Cable for FHD LCD panel; 30pin; eDP; P/N: K1-N3040-58H39 (cable only)
  - MS16L1 Cable for UHD 4K LCD panel; 40pin; eDP; P/N: K1-N3040-42H39 (cable only)
  LCD Panels
  - 17.3in; FHD; 120Hz; Matte; eDP; 94% NTSC; N173HHE-G32
  - 17.3in (43.9cm); 60Hz; UHD; 3840x2160; Matte; 100% sRGB; eDP 40pin
  Top Case
  - WT75 / F7 Top Case complete with US Keyboard and Touchpad
  Bottom Case Screws - 1 Set
  - Bottom Case Screws - 1 Set - Model Specific
  Keyboard (internal)
  - MSI WT75; Replacement Keyboard/Top Case - English
  - MSI WT75; Replacement Keyboard/Top Case - English UK
  - MSI WT75; Replacement Keyboard/Top Case - German
  - MSI WT75; Replacement Keyboard/Top Case - French AZERTY
  - MSI WT75; Replacement Keyboard/Top Case - Spanish

Options
  Extra SSD/HDD Bracket(s) & Cables
  - MSI WT75 HDD BRACKET - AL-5052,71.1*107.9*11.5mm,
  Set of thermal pads for internal M.2 SSD
  - M.2 Thermal Pad Kit - 2 Pieces -MSI -45mm x 19mm x 8mm

Accessories
  AC Adapter
  - 330W AC Adapter; 100-240V; 50-60Hz; DC 19.5V @ 16.9A; 4pin round plug
  - 280W; 100-240V 50-60Hz Auto-switching (worldwide)
  - 780W AC Adapter; 110V-250V Auto Switching; 325x110x40mm; 3lbs/1.3kg; w/ DC cable
  Power Cord
  - USA/CANADA
  - UK
  - EUROPE
  - AUSTRALIA
  - SOUTH AFRICA
  Battery
  - Battery Pack; Li-Ion - 8 Cells
