CLEVO P170EM/SAGER NP9170/ORIGIN PC EON 17Pro/XMG P702
17.3-inch FHD 1920-by-1080 with Glossy (Glare) or Matte (Non-Glare); LED Backlit

CLEVO P170EM / SAGER NP9170 (Early 2012)

  • Graphics: Upgradeable MXM 3.0b; single GPU; Optimus
  • Processor: socket based Sandy Bridge/Ivy Bridge Intel CPU (up to i7-3940XM Extreme)
  • AC Adapter: 230W standard for 100W GPUs
  • GPU Heatsink: standard heatsink (100W)
  • O/S Supported: Windows 7, 8.1, 10
  • BIOS: Special BIOS is required for GTX 9xx /1060

  • GTX 1060 can use the original GPU heatsink with no modifications but you would need to repaste thermal pads to match the new card layout



    		•
    ImagesVideosComponentsDriversFAQsUpgradeUpgrade Price List
    Base Configuration
      GPU-1 Upgrade Kit (Primary)
      - NVIDIA GeForce GTX 660M; 1GB DDR5; MXM 3.0b; 65W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste, Copper Shim
      - NVIDIA GeForce GTX 675M; 2GB DDR5; MXM 3.0b; 75W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 670MX; 3GB DDR5; MXM 3.0b; 75W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 675MX; 4GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 680M; 4GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 680M; 2GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 965M MXM 3.0a(GR); 4GB DDR5; MXM 3.0b; 75W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 980M; 8GB DDR5; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - NVIDIA GeForce GTX 970M; 6GB DDR5; MXM 3.0b; 80W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - 6GB GDDR5; NVIDIA GTX 1060; 1280 CUDA; N17E-G1; 82x105mm; MXM 3.1 w/ X-bracket, screws, thermal pads, ICD7
      - 2GB DDR5; AMD Radeon HD7970M; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      - 4GB DDR5; AMD Radeon HD8970M; MXM 3.0b; 100W; Upgrade Kit with X-bracket, screws, thermal pads, ICD7 Thermal Paste
      GPU-1 Heatsink (Primary)
      - CLEVO Primary Heatsink - Model Specific
      - P170xx Modified GPU heatsink for GTX 10** Video cards
      Extra X-bracket / GPU Supporter
      - GPU Spreader / X-Bracket for MXM 3.0b for AMD Cards with Matching Screws
      - GPU Spreader / X-Bracket for MXM 3.0b/3.1 NVIDIA GTX and Quadro with Matching Screws
      Extra Thermal Pads
      - Set of thermal pads for NVIDIA based MXM3 GPUs
      - Set of thermal pads for AMD based MXM3 GPUs
      Extra Screws for X-Bracket
      - VGA/GPU X-Bracket / GPU Supporter Screws
      Thermal Paste
      - IC Diamond Thermal Paste ICD7; 1tube; 1.5g

    Options
      CPU Heatsink
      - CPU Heatsink - Clevo Model Specific
      CPU Fan
      - CPU Fan - CLEVO model specific
      Primary GPU / VGA Fan
      - x7200/P1xxEM/SM/SMA GPU Fan; 31-X720S-101
      Power Switch Board
      - Power Swich Board - Model Specific
      Motherboard
      - P170EM Mainboard Rev 5.1
      Hinge Left Side
      - P170EM/SM Left Side Hinge - P/N: 6-33-P17E1-0L1
      Hinge Right Side
      - CLEVO P170EM/SM Right Side Hinge; 6-33-P17E1-0R1
      Back LCD Cover
      - Back Cover Assembly (17.3 inch models)
      Front Cover
      - Front Cover (17.3-inch models)
      LCD Cables
      - P37xx LCD cable; for 17.3” 120Hz LCD LP173WF2 (TP)(A1); 43-P37E1-020-J
      Top Case
      - Top Case - 17.3 inch - Model Specific
      Bottom Case
      - Bottom Case - 17.3 inch - Model Specific
      Bottom Case CPU Cover
      - D900C/D900F CPU PLASTIC COVER; P/N 42-D90CS-102; THIS IS CPU COVER NOT THE BOTTOM CASE

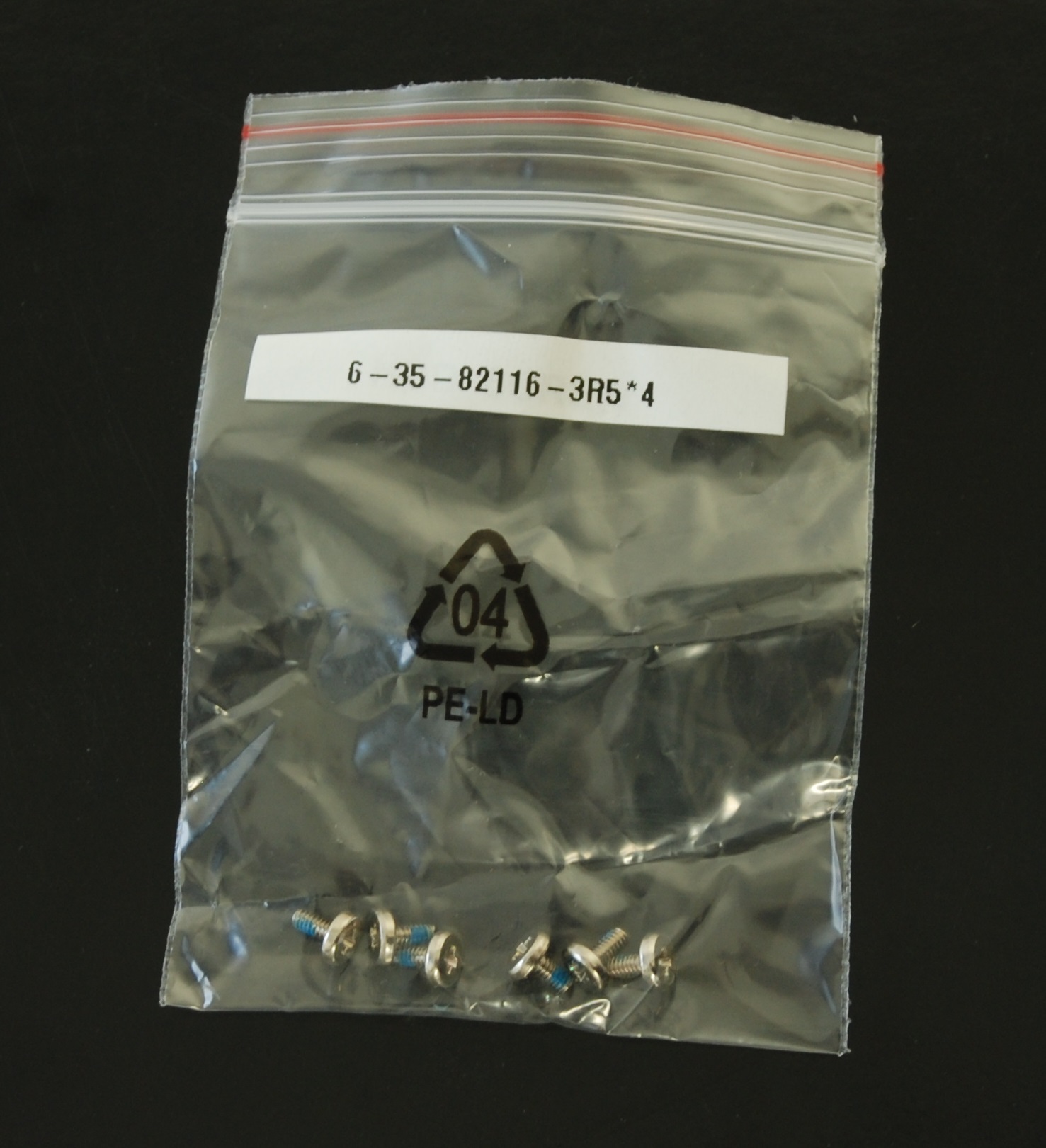

      Bottom Case Screws - 1 Set
      - Bottom Case Screws - 1 Set - Model Specific
      Services
      - VGA Installation Service - Includes shipping both ways, install of VGA, Drivers, BIOS and Heatsink Mod if required - North America only

    Accessories
      Internal Optical Drive
      - 8x Multi DVD +-RW/-RAM Burner; Dual Layer; Tray Load; SATA
      AC Adapter
      - 230W; 100V-250V; Auto-Switching
      - 330W AC Adapter; Auto-switching; 100-240V; 50-60Hz; DC 19.5V @ 16.9A; 4pin round plug
      Battery (Extra)
      - Battery Pack; Li-Ion - 8 Cells
      Power Cord
      - USA/CANADA
      - AUSTRALIA
      - EUROPE
      - SOUTH AFRICA
      - UK
      Power Inverter
      - 300W Portable DC-to-AC Power Inverter; 2 AC Outlets (US); Belkin F5C400-300W; US Edition
